Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Redline

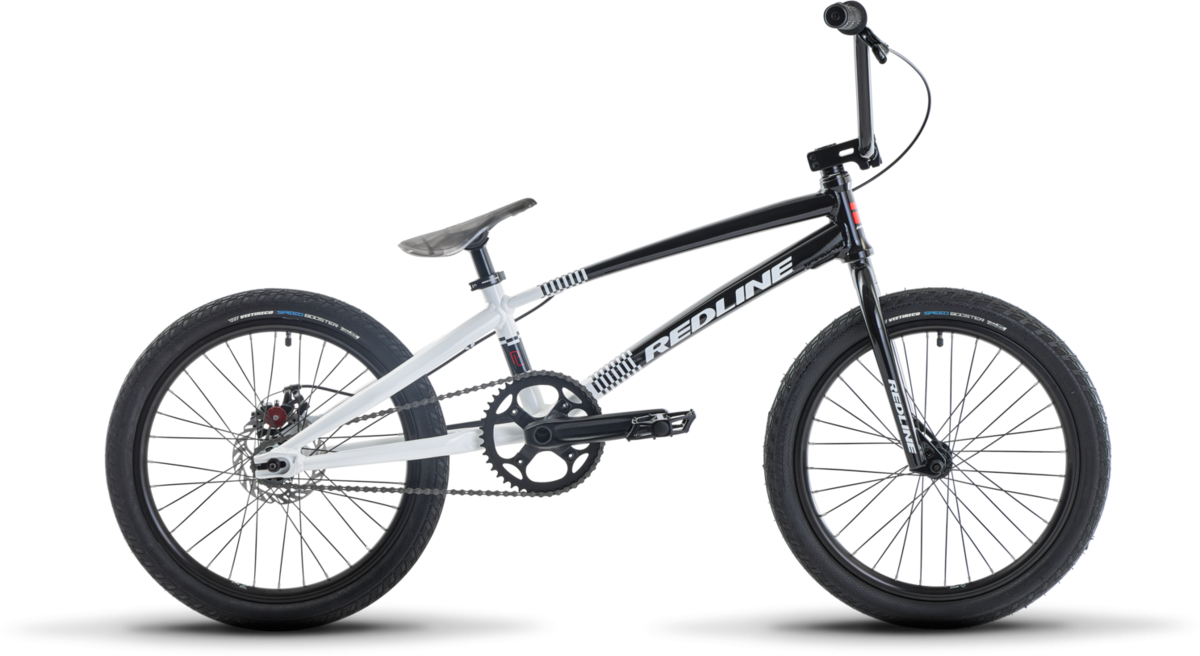

2022 Redline Proline Pro XL
Previous used estimate
$260 - $268
Actual value depends on condition, size, and local demand.
Value Guide market data · 2022 Redline Proline Pro XL
12-month projected trend
12%
Direction and magnitude, not judgment
vs. category average
6%
Drops faster than category avg
Price over time - 2022 Redline Proline Pro XL
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Proline model years
Compare Proline Pro XL models
1 modelsChoose a different build or frame style to see its value.
Overview
About this bike
The Proline Pro (XL = 21"TT, Pro = 20.5"TT) is designed for the rider looking to get serious about racing. Proprietary Redline formed 6061-T6 alloy frame, sealed hubs, and a CrMo butted and tapered race fork for performance and value that is at top of the class. Features: - 1-1/8" Integrated headset - Machined Euro Threaded BB shell - RL Sealed bearing cassette hub and sealed bearing front hub - RL Alloy 2pc cranks - RL no-padding Pivotal Seat - QR seatpost collar - Alloy rims wrapped in Vee Speed Booster 20 x 1.95" Tires.
Specifications
- Subtype
- BMX
- Category
- BMX
- Component Fork
- Full Chromo With Tapered Legs
- Component Hubs
- Front: Redline Aluminum Fully Sealed Rear: Redline Aluminum, Cassette, Fully Sealed
- Component Rims
- Alloy Race, 20 x 1.5, 32h
- Component Size
- 21-inch
- Component Stem
- RL Aluminum Hollowpoint 55mm
- Product Family
- Proline
- Component Chain
- KMC Z6
- Component Color
- Black/White/Red
- Component Frame
- Proprietary Alloy Formed and Butted Tubing
- Component Brakes
- SRAM BB5 Disc Brake
- Component Pedals
- RL Aluminum 9/16" Platform
- Component Saddle
- Race Pivotal No padding
- Component Spokes
- Stainless 14g, Black
- Component Headset
- Sealed Integrated Headset 1 1/8, Aluminum top cap
- Component Crankset
- Proline 2pc Alloy Forged Cranks, 170mm w/24mm Chromo Spindle
- Component Seatpost
- Aluminum Pivotal 26.8mm
- Component Handlebar
- RL Pro Chromo 8" Rise / 10° Back / 4° Up
- Component Rear Tire
- Vee Speed Booster, F. 20 x 1.95" / R. 20 x 1.95"
- Component Front Tire
- Vee Speed Booster, F. 20 x 1.95" / R. 20 x 1.95"
- Component Tape Grips
- RL Pro Hex Grips
- Component Brake Levers
- Promax XL-373
- Component Bottom Bracket
- External Sealed Euro BB
- Component Accessories Extras
- Chain Tensioners
- Component Cassette Freewheel
- 16T
- Hubs
- Front: Redline Aluminum Fully Sealed Rear: Redline Aluminum, Cassette, Fully Sealed
- Rims
- Alloy Race, 20 x 1.5, 32h
- Crankset
- Proline 2pc Alloy Forged Cranks, 170mm w/24mm Chromo Spindle
- Pedals
- RL Aluminum 9/16" Platform
- Bottom Bracket
- External Sealed Euro BB
- Chain
- KMC Z6
- Seatpost
- Aluminum Pivotal 26.8mm
- Saddle
- Race Pivotal No padding
- Handlebar
- RL Pro Chromo 8" Rise / 10° Back / 4° Up
- Headset
- Sealed Integrated Headset 1 1/8, Aluminum top cap
- Rear Tire
- Vee Speed Booster, F. 20 x 1.95" / R. 20 x 1.95"
- Stem
- RL Aluminum Hollowpoint 55mm
- Accessories & Extras
- Chain Tensioners
- Brake Levers
- Promax XL-373
- Brakes
- SRAM BB5 Disc Brake
- Fork
- Full Chromo With Tapered Legs
- Frame
- Proprietary Alloy Formed and Butted Tubing
- Tape/Grips
- RL Pro Hex Grips
- Color
- Black/White/Red
- Size
- 21-inch
- Spokes
- Stainless 14g, Black
- Cassette/Freewheel
- 16T
- Front Tire
- Vee Speed Booster, F. 20 x 1.95" / R. 20 x 1.95"
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
