Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Felt

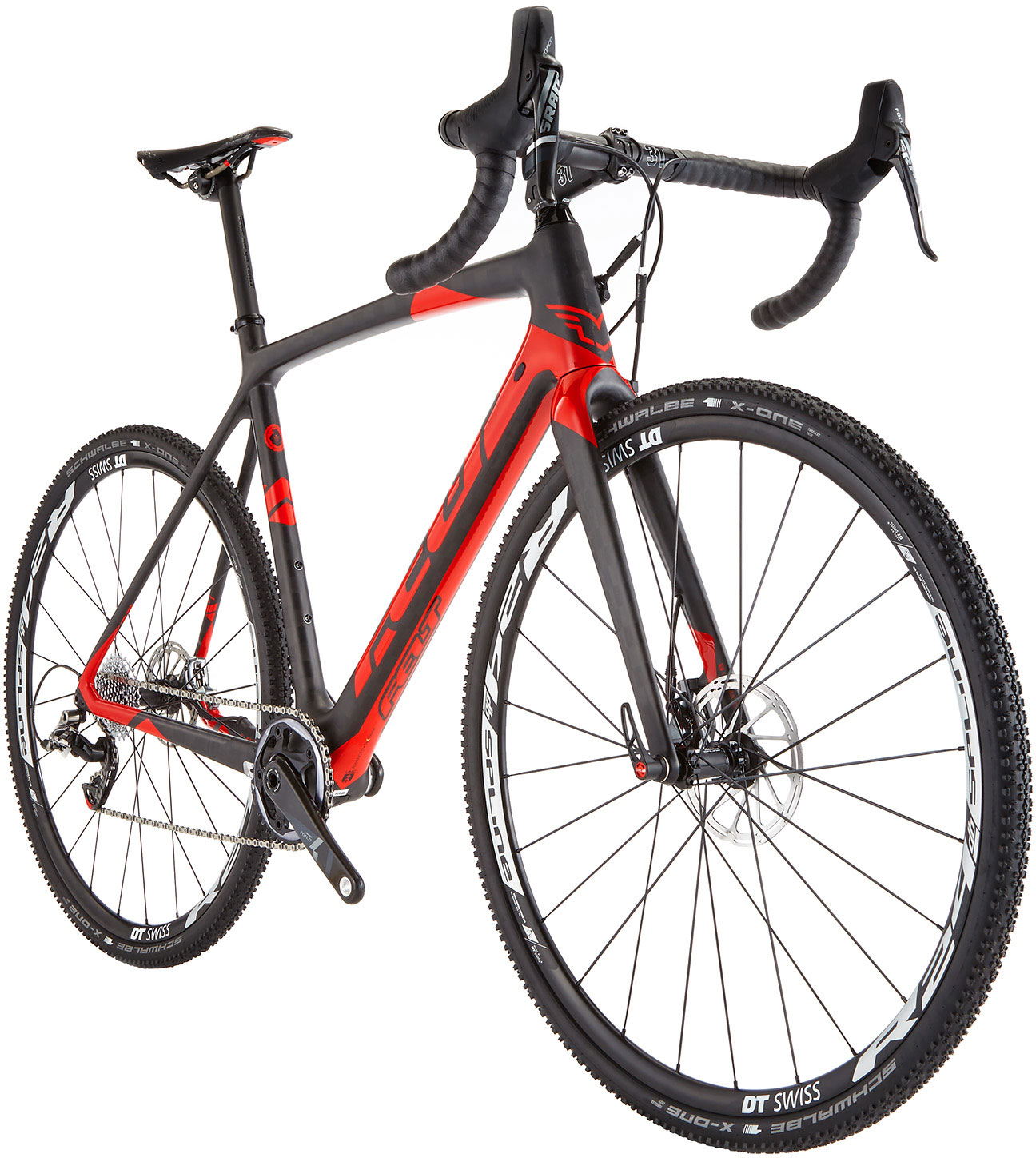

2017 Felt F1X Cx1
Value Guide market data · 2017 Felt F1X Cx1
12-month trend
7%
Direction and magnitude, not judgment
vs. category average
— %
No category comparison available
Price over time - 2017 Felt F1X Cx1
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All F1X model years
2017 F1X Cx1 lineup
Overview
About this bike
2017 Felt F1X Cx1 value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Fork
- Felt Cyclocross UHC Ultimate + TeXtreme carbon fiber monocoque construction, ControlTaper 1.125" - 1.5" carbon fiber steer tube, crown, blades w/ post mount disc tabs
- Frame
- Felt Cyclocross UHC Advanced + TeXtreme carbon fiber, MMC w/ InsideOut construction, Syntace style thru axle dropouts, shoulder friendly top tube, replaceable rear derailleur hanger, internal cable routing (mechanical compatible)
Drivetrain
- Groupset
- 2017 Felt F1X Cx1
- Crankset
- SRAM Force Cx1 <br>47cm = 165mm<br>50cm = 170mm<br>53cm = 172.5mm<br>55 - 60cm = 175mm
- Bottom Bracket
- FSA PF30
- Chain
- SRAM 11-speed
- Rear Derailleur
- SRAM Force1 short cage
- Cassette/Rear Cogs
- SRAM, 11-28T
- Chainrings
- SRAM Force XSYNC, 38T SRAM Force XSYCN, 42T
- Shifters
- SRAM Force Cx1Hydraulic DoubleTap
Brakes
- Brake Levers
- SRAM Force Cx1 Hydraulic DoubleTap
- Brakes
- Front Brake: SRAM Red Hydraulic Disc w/ SRAM 160mm rotor<br>Rear Brake: SRAM Red Hydraulic Disc w/ SRAM 140mm rotor
Cockpit
- Saddle
- Prologo X Zero TiRox
- Headset
- FSA NO.38/42, 1.125" - 1.5" sealed cartridge bearing w/ Felt VariableHeight Cone Spacers (20mm PC, 4.5mm aluminum), 1x 10mm + 2 x 5mm PC headset spacers, Felt compression device, aluminum top cap & bolt
- Stem
- 3T ARX II Team Stealth, +/-6° rise, Ø31.8mm<br>47 - 53cm = 90mm<br>55cm = 100mm<br>57cm = 110mm<br>60cm = 120mm
- Handlebars
- 3T Ergoterra Team Stealth, 89mm reach, 127mm drop, Ø31.8mm<br>47 - 50cm = 420 / 450mm<br>53 - 60cm = 440 / 470mm
- Seat Post
- 3T Ionic VR 25 Team Stealth, Ø27.2mm, 350mm length
- Tape/Grips
- Felt CxGel Tape
Wheels & Tires
- Hubs
- Front: DT SWISS R24 SPLINE db 6-bolt, <br>Rear: DT SWISS R24 SPLINE db 6-bolt, pawl drive system hub
- Tires
- Schwalbe X-One Evo, HS 467, 700c x 33c
- Axles
- Front: 15 x 100mm Maxle<br>Rear: 12 x 142mm thru
- Spokes
- DT SWISS Competition Spokes w/ Pro-lock Alloy Nipples
Accessories
- Accessories & Extras
- Carbon assembly paste, chain plate protector, Di2 internal battery charging cables, Felt CxR cowbell, Felt single bolt, Ø31.8mm seatpost clamp
- Rims/Wheels
- DT SWISS R24 SPLINE db
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
