Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Marin

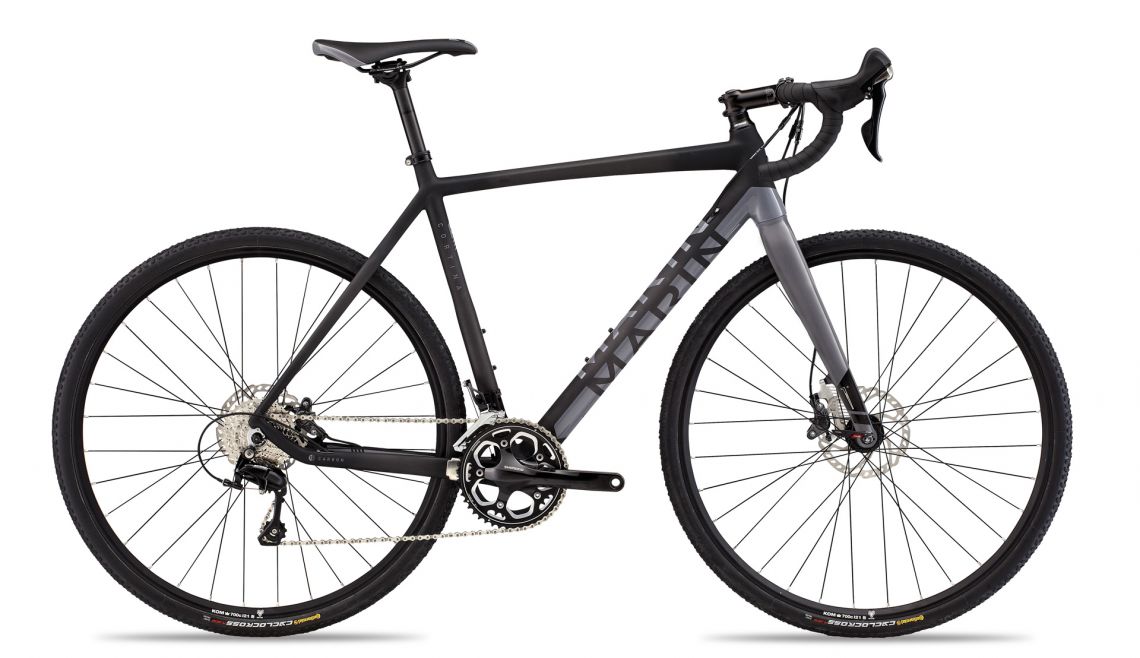

2016 Marin Cortina CX
Value Guide market data · 2016 Marin Cortina CX
12-month trend
4%
Direction and magnitude, not judgment
vs. category average
— %
No category comparison available
Price over time - 2016 Marin Cortina CX
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Cortina model years
2016 Cortina CX lineup
Overview
About this bike
2016 Marin Cortina CX value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Frame:
- T3 Unidirectional Carbon, Internal Cable Routing, Power Taper Seat Tube, Disc Mount, PF30 BB
- Front Fork:
- Naild NavIt Carbon, Tapered 6000 Series Alloy Steerer, Naild Locking Thru-Axle, IceIt Brake Cooling Fin
- Fork Brand & Model
- Naild NavIt Carbon w/ Naild locking thru-axle
- Frame Construction
- T3 Carbon
Drivetrain
- Groupset
- Shimano 105
- Crankset:
- Shimano FC-RS500 Hollowtech II, 46/36T
- Cassette:
- Shimano 105 11-Speed, 11-32T
- Bottom Bracket:
- FSA PF30 w/ 24mm Reducer
- Chain:
- KMC X11
- Derailleur Rear:
- Shimano 105
- Shift Lever:
- Shimano RS685 11-Speed STI
- Derailleur Front:
- Shimano 105
- Bottom Bracket
- PressFit30
- Cassette
- Shimano 105, 11-speed: 11-32
- Crankset
- Shimano
- Front Derailleur
- Shimano 105
- Rear Derailleur
- Shimano 105
Brakes
- Brake Levers:
- Shimano BR-RS685 Hydraulic STI
Cockpit
- Handlebar:
- Marin Compact Drop
- Grips:
- Marin Silicon Gel Tape
- Stem:
- Marin 3D Forged Alloy
- Headset:
- FSA Orbit, Sealed Cartridge Bearing, 1 1/8
- Seatpost:
- Marin Carbon
- Saddle:
- Marin Endurance Concept
- Saddle
- Marin Endurance Concept
- Seatpost
- Marin carbon
Wheels & Tires
- Tires:
- Continental Cyclocross Race, 700x35C, 180TPI, Kevlar
- Hub Rear:
- Formula, 6-Bolt Disc, 32H
- Hub Front:
- Formula, 100x15mm, 6-Bolt Disc, 32H
- Rim:
- WTB KOM i21, 21mm Inner, Tubeless Ready
- Hubs
- Formula
- Tires
- Continental Cyclocross Race, 700 x 35c, Kevlar
Accessories
- Spokes Nipples:
- Double Butted Stainless
- Brakes Front:
- Shimano BR-RS785 Hydraulic Disc, 160mm Rotor
- Brakes Rear:
- Shimano BS-RS785 Hydraulic Disc, 160mm Centerlock Rotor
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
