Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Bianchi

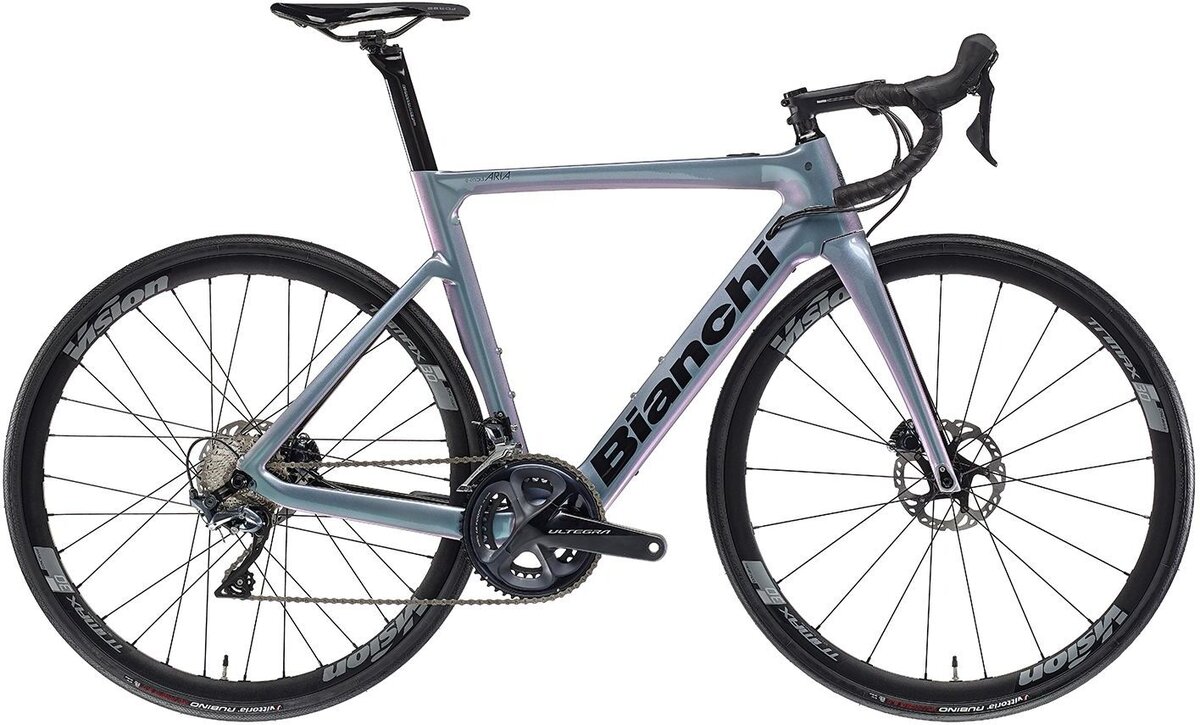

2022 Bianchi Aria e-Road Ultegra
Value Guide market data · 2022 Bianchi Aria e-Road Ultegra
12-month trend
9%
Direction and magnitude, not judgment
vs. category average
— %
No category comparison available
Price over time - 2022 Bianchi Aria e-Road Ultegra
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Aria E-Road model years
2022 Aria e-Road Ultegra lineup
Overview
About this bike
2022 Bianchi Aria e-Road Ultegra value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Fork
- Bianchi Full Carbon Disc 1.1/4">1.1/8", thru axle 12x100mm
- Frame
- Aria E-Road carbon, mechanical/electronic shifting compatible, PressFit 86,5x41mm BB, head tube 1.1/4"-1.1/8", integrated seat clamp, full carbon dropout, flat mount, QR system, OLD 135mm, sizes 47-50-53-55-57-59-61cm
Drivetrain
- Groupset
- 2022 Bianchi Aria e-Road Ultegra
- Crankset
- Shimano Ultegra FC-R8000 50x34T, Hollowtech II, Crank Length: 170mm-47/53cm, 172.5mm-55/59cm, 175mm-61cm
- Bottom Bracket
- Shimano SM-BB72-41B
- Chain
- Shimano Ultegra CN-HG701-11, 11sp
- Front Derailleur
- Shimano Ultegra FD-R8000
- Rear Derailleur
- Shimano Ultegra RD-R8000 GS 11sp
- Shifters
- Shimano Ultegra ST-R8020 2x11sp, hydraulic disc brake, Shimano Ultegra ST-R8025 2x11sp, smaller lever size for sizes 47/53cm
- Cassette/Freewheel
- Shimano 105 CS-R7000, 11-12-13-14-16-18-20-22-25-28-32T
Brakes
- Brake Levers
- Included w/shifters
- Brakes
- Shimano BR-R8070
- Rotors
- Shimano SM-RT86, diam. 160mm
Cockpit
- Seatpost
- Full Carbon Aero special dimension, special Clamp type with alloy head adjustable and reversible +/- 35mm; lengh: 300mm-47/50cm, 350mm-53/61cm
- Saddle
- Velomann 1285 URN, steel rails, lenght/wide 278x144mm
- Handlebar
- Reparto Corse Aero Compact, alloy 6061 diam. 31,8mm, reach 74mm, drop 116mm, Size: 400mm-44/53cm, 420mm-55/59cm, 440mm-61cm
- Headset
- Fsa Orbit C-33, NO.44E, 1.1/8">1.1/4"
- Stem
- Velomann 3D Forged alloy 2014, raise - 6°, height 38mm, 1.1/8", Ext: 90mm-48/50cm, 100mm-52/54cm, 110mm-56cm, 120mm-58cm
- Tape/Grips
- La Spirale Ribbon cork
Wheels & Tires
- Hubs
- Ebikemotion X35 Plus motor unit
- Rims
- Vision Trimax Alloy disc, c/unitÀ motore mozzo posteriore Ebikemotion X35
- Rear Tire
- Vittoria Rubino IV 700x28, 60TPI, G2.0 Graphene
- Front Tire
- Vittoria Rubino IV 700x28, 60TPI, G2.0 Graphene
Pedals
- Pedals
- Sold separately
E-System
- Battery
- Ebikemotion X35+ 250Wh
- Motor
- Ebikemotion X35 Plus 250W motor unit, iWOC One remote control, BLE and ANT+ compatible
Accessories
- Color
- Summertime Dream
Weight & Sizing
- Size
- 47cm / 50cm / 53cm / 55cm / 57cm / 59cm / 61cm
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
Inspection
Battery health
Request battery cycle count and any diagnostic report; older packs lose range and capacity.
Inspection
Motor warranty
Verify motor warranty status and any firmware updates from the manufacturer dealer.
