Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Marin

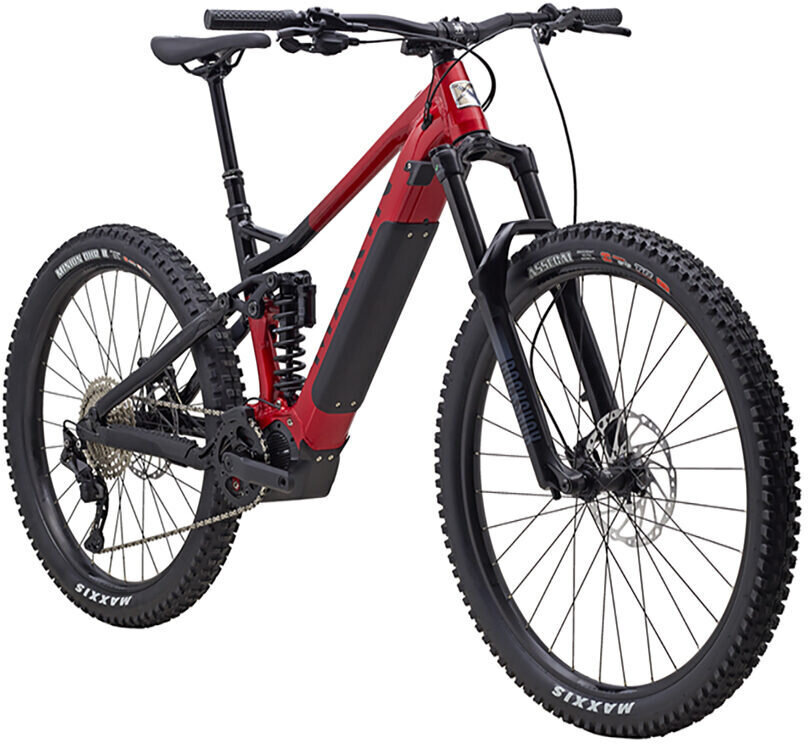

2022 Marin Alpine Trail E1
Value Guide market data · 2022 Marin Alpine Trail E1
12-month trend
20%
Direction and magnitude, not judgment
vs. category average
— %
No category comparison available
Price over time - 2022 Marin Alpine Trail E1
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Alpine model years
2022 Alpine Trail E1 lineup
Overview
About this bike
2022 Marin Alpine Trail E1 value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- FORK
- RockShock 35 Gold RL 29", Motion Control Damper, 160mm Travel, Maxle Stealth Axle, 44mm Offset
- Frame
- All New Series 4 Alloy Frame, 150mm Multitrac suspension, Integrated Battery/On-switch/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
- Rear Shock
- Rock Shock Super Deluxe Coil R, Rebound Adjustment, 205x65mm, 25mmxM8 Lower Hardware, S/M Spring Rate = 300lb, L/XL Spring Rate = 400lb
Drivetrain
- Groupset
- Shimano Deore
- CRANKSET
- Marin Forged Alloy 165mm Length, Narrow Wide 38T Chainring, e13 Plus Chain guide, Aluminum Plate
- CHAIN
- KMC X-10E, EBike Specific, Silver
- CASSETTE
- Shimano Deore M4100-10 10-speed 11-46T
- DERAILLEUR REAR
- Shimano Deore 5100 Direct Attachment, 10-Speed
- SHIFT LEVER
- Shimano Deore M4100-R, I-Spec EV, 10-Speed
- Chainrings
- Narrow Wide 38T Chainring
- Rear Derailleur
- Shimano Deore 5100 Direct Attachment, 10-Speed
- Shifters
- Shimano Deore M4100-R, I-Spec EV, 10-Speed
Brakes
- BRAKE LEVERS
- Shimano MT4100 Hydraulic Lever, I-Spec EV Compatible
- Brakes
- Shimano MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor
Cockpit
- HANDLEBAR
- Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
- STEM
- Marin 3D Forged Alloy, 35mm
- GRIPS
- Marin Single Clamp Locking
- HEADSET
- FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
- SEATPOST
- TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm
- SADDLE
- Marin eMTB Saddle
Wheels & Tires
- SPOKES
- 14g Black Stainless Steel
- HUB REAR
- Shimano HB-MT400B, 148x12mm, Centerlock Disc, Standard Freehub Body
- HUB FRONT
- Shimano MT-410B, 110x15mm, Centerlock Disc, 32H
- Front Tire
- Front: Maxxis Assegai 29x2.5", 3C MaxxTerra, Double Down, Tubeless Compatible, Rear: Maxxis Minion DHR II 27.5x2.8", 3C Maxx Terra, EXO+, Tubeless Compatible
- Hubs
- Front: Forged Alloy, 110x15mm, Centerlock Disc, 32H, Rear: Shimano HB-MT400B, 148x12mm, Centerlock Disc, Standard Freehub Body
- Rims
- Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible, Rear: Marin Aluminum Double Wall, 27.5" Diameter, 38mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
Pedals
- PEDALS
- Marin MTB Plastic
E-System
- MOTOR
- Shimano STEPS E7000, 250W, 60Nm
- BATTERY
- BT-8035, Internal 504Wh
- DISPLAY
- SC-E7000 Display
- Charger
- Shimano Battery Charger EC-E6002
- Controller/Display
- SC-E7000 Display
Accessories
- EXTRAS
- Shimano Battery Charger EC-E6002, Bolt-on Thru-Axle
- BRAKES FRONT
- Shimano MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor
- BRAKES REAR
- Shimano MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor w/ Speed Sensor
- SWITCH
- SW-E7000 Left Hand Switch for Assist Mode Change
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
Inspection
Battery health
Request battery cycle count and any diagnostic report; older packs lose range and capacity.
Inspection
Motor warranty
Verify motor warranty status and any firmware updates from the manufacturer dealer.
