Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Trek

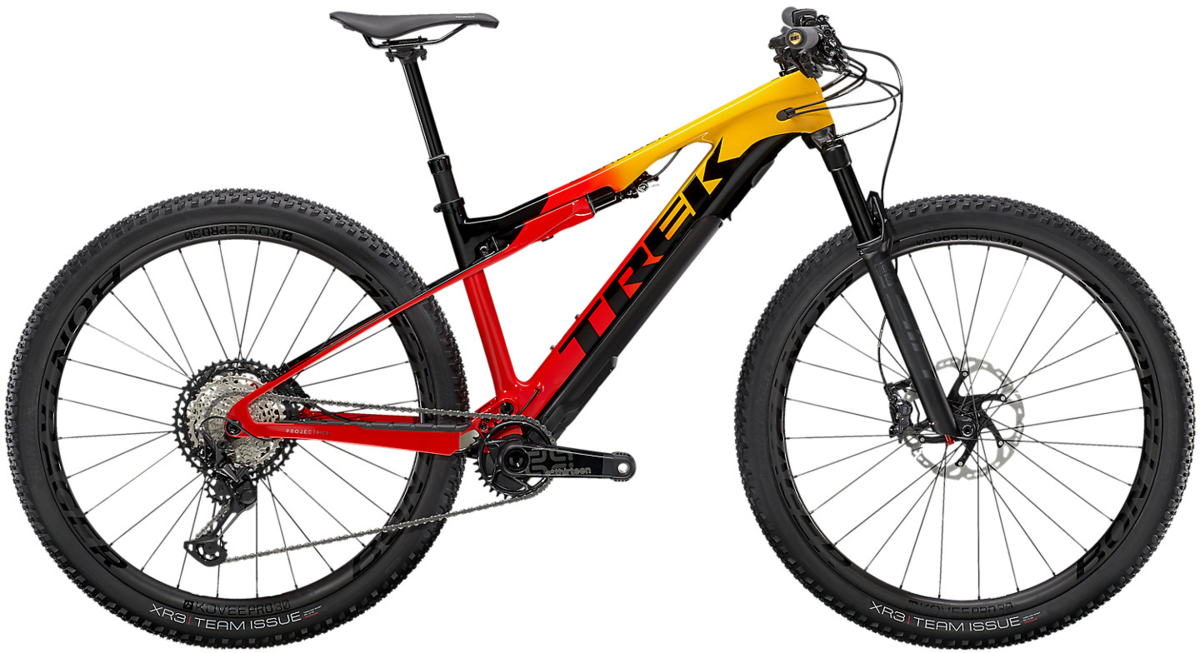

2022 Trek E-Caliber 9.8 XT
Previous used estimate
$3,527 - $3,629
Actual value depends on condition, size, and local demand.
Value Guide market data · 2022 Trek E-Caliber 9.8 XT
12-month projected trend
8%
Direction and magnitude, not judgment
vs. category average
5%
Drops faster than category avg
Price over time - 2022 Trek E-Caliber 9.8 XT
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All E-Caliber model years
Overview
About this bike
E-Caliber 9.8 XT is a lightweight carbon electric mountain bike that rides-and looks-like a traditional cross country bike. It's built with the same race-worthy tech as Supercaliber, including our exclusive IsoStrut integrated shock, and it has a sleek Fazua drive system that delivers a little boost when you want it most. It's right for you if... You're an avid XC rider, and love the idea of an e-MTB that helps you push your limits without providing too much assistance. It's also great for those who want to get out and ride more, or keep pace with faster friends. The tech you get A lightweight OCLV Mountain Carbon frame with 60mm of travel, a 120mm RockShox SID Select+ fork, and Trek IsoStrut shock. A new Fazua Ride Trail 50 and 250Wh battery that can assist up to 20 mph when it's on, and gives zero drag when it's off. A Shimano XT drivetrain, Bontrager Line Elite dropper post, and Kovee Pro 30 carbon wheels with a 108-tooth Rapid Drive rear hub for instant engagement. The final word E-Caliber flies down singletrack like an XC MTB-because it's modeled after Supercaliber! And the Fazua assist is awesome for riders who are looking for just a little advantage that'll help them do even more of what they love. Why you'll love it: - You get a helping hand from the motor on climbs and long rides, but it's a more natural-feeling assist that gives you an overall experience that's closer to riding an analog bike than a typical e-MTB - The drive system, including the motor, is easily removable. Just take it out, pop on the included cover, and you'll have a standard mountain bike that weighs 2.9kg less than before - IsoStrut gives you just enough rear suspension for cross country traction and comfort with less weight and more efficiency - Pivotless seat stays save on weight and actively bend to help soak up trail chatter - Wider Kovee Pro 30 wheels provide better tire support so you can run lower pressure and get more traction
Specifications
- Subtype
- Electric Mountain
- Category
- E-Bike
- Component Fork
- RockShox SID Select+, DebonAir spring, Charger 2 RL damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 120mm travel
- Component Rims
- Bontrager Kovee Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
- Component Size
- Small, Medium, Large, X-Large
- Component Stem
- Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree
- Product Family
- E-Caliber
- Component Chain
- Shimano Ultegra/XT M8100, 12 speed
- Component Color
- Carbon Blue Smoke, Gloss Alpine Navy Smoke/Trek White, Gloss Radioactive Red/Matte Black, Marigold to Radioactive Red Fade
- Component Frame
- OCLV Mountain Carbon main frame & stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60mm travel
- Component Motor
- Fazua Ride Trail 50 motor
- Component Brakes
- Shimano XT M8120 4-piston hydraulic disc
- Component Pedals
- Sold separately
- Component Rotors
- Shimano RT86, 6-bolt
- Component Saddle
- Bontrager P3 Verse Elite, stainless steel rails, 145mm width
- Component Battery
- Fazua Evation battery, 250Wh
- Component Charger
- Fazua Evation charger, 90-120V
- Component Headset
- Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom
- Component Crankset
- E*thirteen E*spec Race Carbon, 32T
- Component Seatpost
- Bontrager Line Elite Dropper, MaxFlow, internal routing, 31.6mm
- Component Shifters
- Shimano XT M8100, 12 speed
- Component Handlebar
- Bontrager Line Pro, OCLV Carbon, 35mm, 15mm rise, 750mm width
- Component Rear Tire
- Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120tpi, 29x2.40"
- Component Wheel Set
- Front: Bontrager Kovee Pro 30 carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle Rear: Bontrager Kovee Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, Shimano MicoSpline, 6-bolt, Boost148, 12mm thru axle
- Component Front Tire
- Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120tpi, 29x2.40"
- Component Rear Shock
- Trek IsoStrut, Fox Performance shock, air spring, DPS 2-position remote damper, 235mm x 32.5mm
- Component Tape Grips
- ESI Chunky
- Component Rear Derailleur
- Shimano XT M8100, long cage
- Component Cassette Freewheel
- Shimano XT M8100, 10-51, 12 speed
- Component Controller Display
- Fazua Remote bX
- Rear Shock
- Trek IsoStrut, Fox Performance shock, air spring, DPS 2-position remote damper, 235mm x 32.5mm
- Rims
- Bontrager Kovee Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
- Crankset
- E*thirteen E*spec Race Carbon, 32T
- Pedals
- Sold separately
- Chain
- Shimano Ultegra/XT M8100, 12 speed
- Seatpost
- Bontrager Line Elite Dropper, MaxFlow, internal routing, 31.6mm
- Saddle
- Bontrager P3 Verse Elite, stainless steel rails, 145mm width
- Handlebar
- Bontrager Line Pro, OCLV Carbon, 35mm, 15mm rise, 750mm width
- Headset
- Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom
- Rear Derailleur
- Shimano XT M8100, long cage
- Rear Tire
- Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120tpi, 29x2.40"
- Stem
- Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree
- Brakes
- Shimano XT M8120 4-piston hydraulic disc
- Fork
- RockShox SID Select+, DebonAir spring, Charger 2 RL damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 120mm travel
- Frame
- OCLV Mountain Carbon main frame & stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60mm travel
- Shifters
- Shimano XT M8100, 12 speed
- Tape/Grips
- ESI Chunky
- Motor
- Fazua Ride Trail 50 motor
- Charger
- Fazua Evation charger, 90-120V
- Battery
- Fazua Evation battery, 250Wh
- Color
- Marigold to Radioactive Red Fade
- Size
- X-Large
- Cassette/Freewheel
- Shimano XT M8100, 10-51, 12 speed
- Controller/Display
- Fazua Remote bX
- Rotors
- Shimano RT86, 6-bolt
- Wheel Set
- Front: Bontrager Kovee Pro 30 carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle Rear: Bontrager Kovee Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, Shimano MicoSpline, 6-bolt, Boost148, 12mm thru axle
- Front Tire
- Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120tpi, 29x2.40"
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
Inspection
Battery health
Request battery cycle count, capacity diagnostics, and motor service records.
