Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
KHS

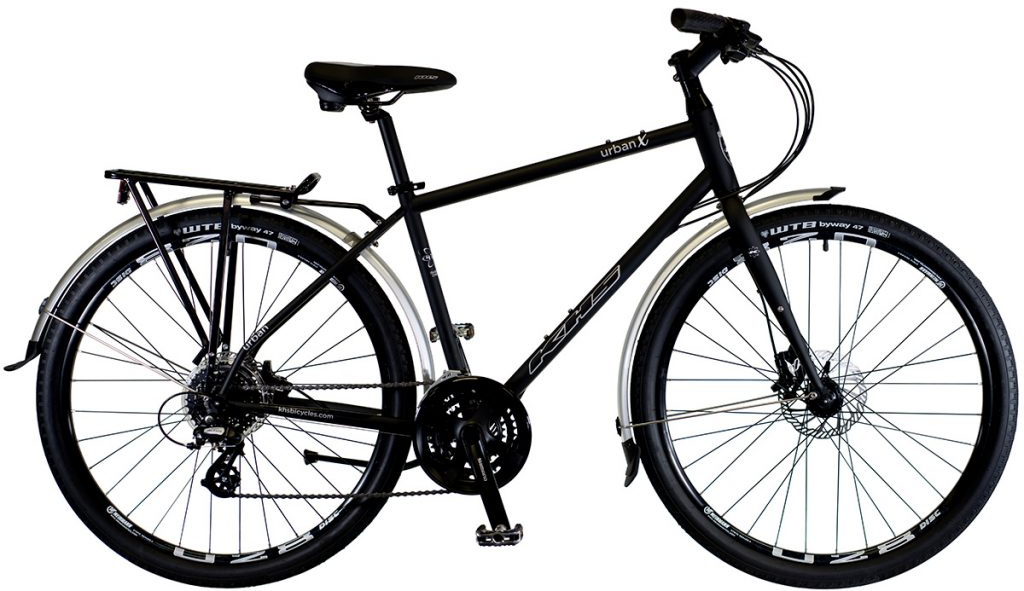

2022 KHS Urban X
Value Guide market data · 2022 KHS Urban X
12-month trend
12%
Direction and magnitude, not judgment
vs. category average
— %
No category comparison available
Price over time - 2022 KHS Urban X
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Urban model years
2022$883 - $1,025Currently viewing
2021$734 - $852▼ 17% vs. 2022
2020$678 - $787▼ 23% vs. 2022
2019$715 - $831▼ 19% vs. 2022
2018$910 - $1,057▲ 3% vs. 2022
2017$808 - $939▼ 8% vs. 2022
2016$808 - $939▼ 8% vs. 2022
2015$808 - $939▼ 8% vs. 2022
2014$808 - $939▼ 8% vs. 2022
2013$715 - $831▼ 19% vs. 2022
2012$715 - $831▼ 19% vs. 2022
2011$456 - $529▼ 48% vs. 2022
2010$716 - $832▼ 19% vs. 2022
2009$614 - $713▼ 30% vs. 20222022 Urban X lineup
Overview
About this bike
2022 KHS Urban X value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Fork
- Hi-Tensile Unicrown Straight Blade, 1-1/4" Tapered
- Frame
- 4130 Double Butted CrMo Tubing and Carrier Bosses, Forged Disc Mount, Internal Cables
Drivetrain
- Groupset
- 2022 KHS Urban X
- Crankset
- Shimano FC-TY301, 48/38/28T w/Chainguard, S-M:170, 175
- Bottom Bracket
- Cartridge Bearing
- Chain
- KMC Z8.3
- Front Derailleur
- Shimano FD-TY710, 28.6mm
- Rear Derailleur
- Shimano Altus, M310
- Shifters
- Microshift TS71Z, 3x8
- Cassette/Freewheel
- Shimano CS-HG318, 11-34T, 8-Speed
Brakes
- Brake Levers
- Bengal Aries 3
- Brakes
- Bengal Aries 3,Hydraulic Disc, 160mm Wave 12 Rotors
Cockpit
- Seatpost
- Aluminum Micro-Adjust, 27.2mm
- Saddle
- KHS Ultra Comfort, Soft Shell
- Handlebar
- Aluminum Trekking, 630mm, 31.8mm
- Headset
- Threadless 1-1/8”, Zero Stack
- Stem
- KHS Aluminum Threadless, 25D, 4-bolt, S: 80mm, M-L:90mm, XL: 100mm
- Tape/Grips
- Q2 Ergo Lock-On, Dual Density
Wheels & Tires
- Hubs
- Front: KT Aluminum Disc, QR w/Rubber Seal <br> Rear: KT Aluminum Disc, QR w/Rubber Seal, Cassette
- Rims
- Weinmann Aluminum U28, Disc Double Wall, 27.5x32H
- Rear Tire
- WTB Byway, 27.5 x 47 mm
- Spokes
- 14G Stainless Black, 32x32
- Front Tire
- WTB Byway, 27.5 x 47 mm
Pedals
- Pedals
- Wellgo Full Aluminum w/DU Bearing
Accessories
- Accessories & Extras
- Kickstand, Fenders, Aluminum Rear Carrier
- Color
- Matte Black
Weight & Sizing
- Size
- Small / Medium / Large / X-Large
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
