Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
KHS

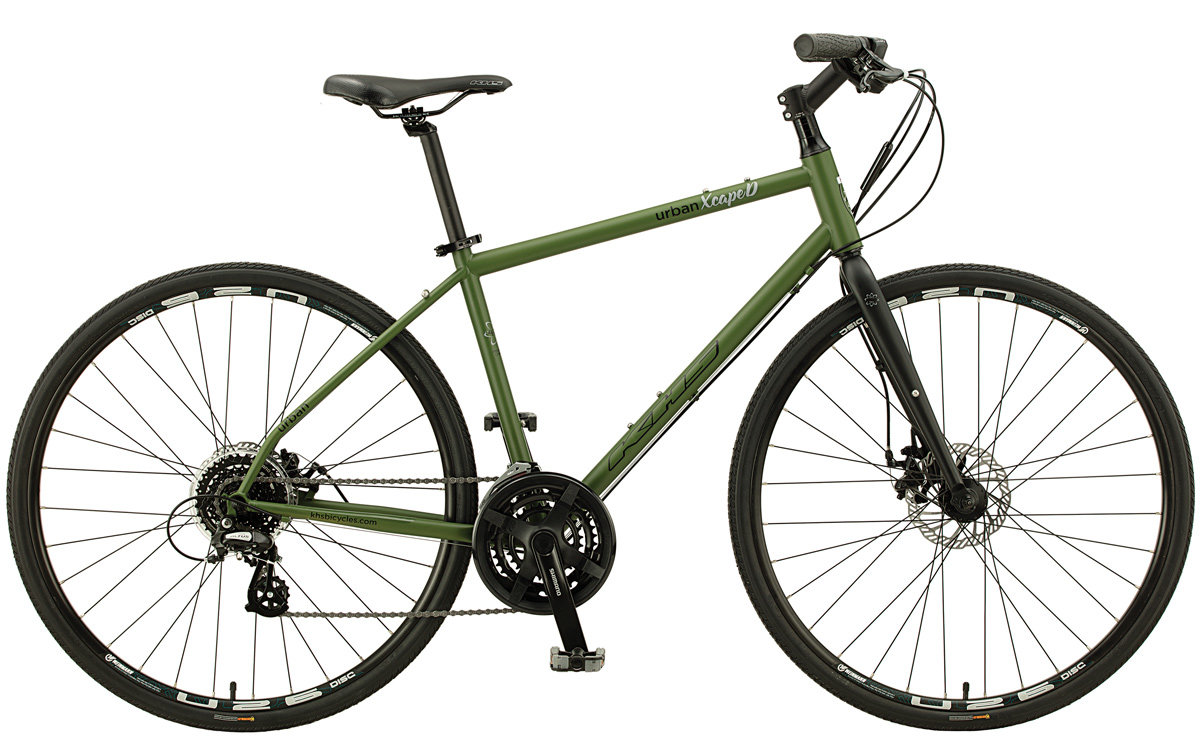

2019 KHS Urban Xcape Disc
Value Guide market data · 2019 KHS Urban Xcape Disc
12-month trend
13%
Direction and magnitude, not judgment
vs. category average
— %
No category comparison available
Price over time - 2019 KHS Urban Xcape Disc
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Urban model years
2022$883 - $1,025▲ 23% vs. 2019
2021$734 - $852▲ 3% vs. 2019
2020$678 - $787▼ 5% vs. 2019
2019$715 - $831Currently viewing
2018$910 - $1,057▲ 27% vs. 2019
2017$808 - $939▲ 13% vs. 2019
2016$808 - $939▲ 13% vs. 2019
2015$808 - $939▲ 13% vs. 2019
2014$808 - $939▲ 13% vs. 2019
2013$715 - $8310% vs. 2019
2012$715 - $8310% vs. 2019
2011$456 - $529▼ 36% vs. 2019
2010$716 - $8320% vs. 2019
2009$614 - $713▼ 14% vs. 20192019 Urban Xcape Disc lineup
Overview
About this bike
2019 KHS Urban Xcape Disc value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Fork
- Hi-Tensile Unicrown, Disc, Post Mount, Straight Blade
- Frame
- 4130 Double Butted CrMo Tubing & Carrier Bosses, Forged Disc Mount
Drivetrain
- Groupset
- 2019 KHS Urban Xcape Disc
- Crankset
- Shimano FC-TY301, 170mm, w/Chainguard
- Bottom Bracket
- Cartridge Bearing
- Chain
- KMC Z8.3
- Front Derailleur
- Shimano FD-TY710, 28.6mm
- Rear Derailleur
- Shimano Altus M310
- Cassette/Rear Cogs
- Shimano CS-HG31-8, 11-34T, 8-Speed
- Chainrings
- 48/38/28T
- Shifters
- MicroShift TS39 Triggers, 3x8
Brakes
- Brake Levers
- Promax Alloy Linear Pull Trekking, 3 Finger
- Brakes
- Bengal Cable Disc, MB606, 160mm Wave12 Rotors, w/ABS System
Cockpit
- Saddle
- KHS Urban
- Headset
- Threadless 1-1/8”, Zero Stack
- Stem
- Alloy Threadless, 25D, 4-Bolt
- Handlebars
- Alloy Trekking, 630mm, 31.8mm
- Seat Post
- Alloy Micro-Adjust, 27.2 x 350mm
- Tape/Grips
- Q2 Ergo Lock-On, Dual Density
Wheels & Tires
- Hubs
- KT Alloy Disc w/Rubber Seals
- Tires
- Kenda Keen, 700 x 35c w/K-Shield
- Axles
- QR
- Spokes
- 14g Stainless Black, 32x32
Pedals
- Pedals
- Wellgo Platform w/Non-slip Tread, DU Bearings
Accessories
- Rims/Wheels
- Weinmann U26 Disc, 700x32H, Double Wall
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
