Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
KHS

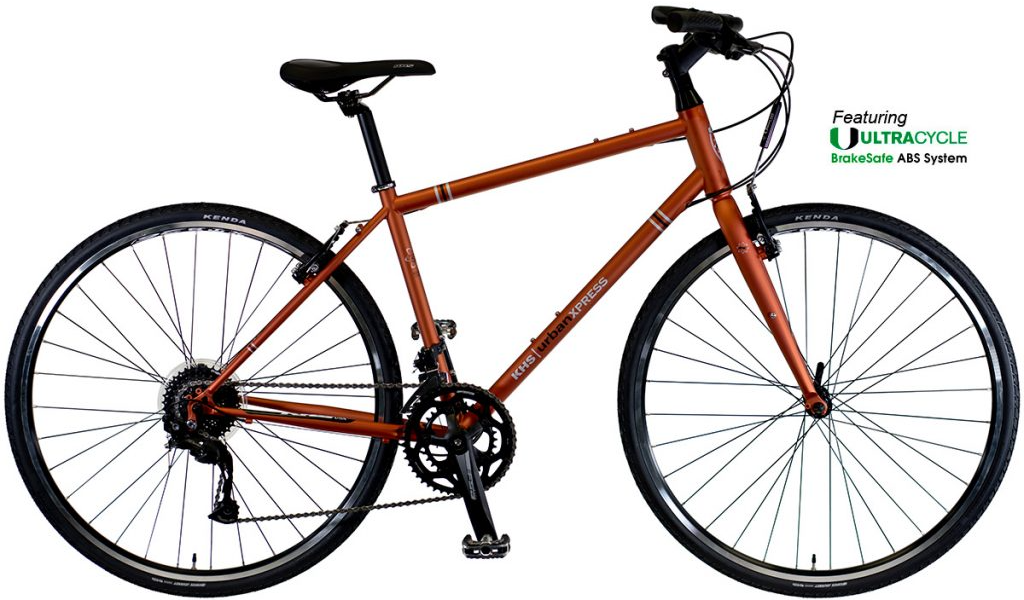

2022 KHS Urban Xpress
Value Guide market data · 2022 KHS Urban Xpress
12-month trend
11%
Direction and magnitude, not judgment
vs. category average
— %
No category comparison available
Price over time - 2022 KHS Urban Xpress
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Urban model years
2022$883 - $1,025Currently viewing
2021$734 - $852▼ 17% vs. 2022
2020$678 - $787▼ 23% vs. 2022
2019$715 - $831▼ 19% vs. 2022
2018$910 - $1,057▲ 3% vs. 2022
2017$808 - $939▼ 8% vs. 2022
2016$808 - $939▼ 8% vs. 2022
2015$808 - $939▼ 8% vs. 2022
2014$808 - $939▼ 8% vs. 2022
2013$715 - $831▼ 19% vs. 2022
2012$715 - $831▼ 19% vs. 2022
2011$456 - $529▼ 48% vs. 2022
2010$716 - $832▼ 19% vs. 2022
2009$614 - $713▼ 30% vs. 20222022 Urban Xpress lineup
Overview
About this bike
2022 KHS Urban Xpress value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Fork
- Full CrMo Unicrown, Low-rider and Fender Bosses, Straight Blade
- Frame
- Reynolds 520 DB CrMo Tubing w/Carrier Bosses, Internal Cables
Drivetrain
- Groupset
- 2022 KHS Urban Xpress
- Crankset
- FSA Tempo, 48/32T, S:170, M-L: 172.5, XL-XXL: 175
- Bottom Bracket
- FSA Cartridge Bearing
- Chain
- KMC X9 w/MissingLink
- Front Derailleur
- MicroShift FD-T392B, 28.6mm
- Rear Derailleur
- Shimano Alivio, M3100
- Shifters
- Shimano Alivio, M3100, 2x9 Triggers
- Cassette/Freewheel
- Shimano CS-HG200-9, 11-36T, 9-Speed
Brakes
- Brake Levers
- Promax Aluminum Forged Trekking, Knee Saver
- Brakes
- Tektro 855AL, Aluminum Linear Pull, Long Reach, w/ABS System
Cockpit
- Seatpost
- Aluminum Micro-Adjust, 27.2mm
- Saddle
- KHS Ultra Comfort Plus, Soft Shell w/Memory Foam
- Handlebar
- Aluminum Trekking, 630mm, 31.8mm
- Headset
- Threadless 1-1/8”, Zero Stack
- Stem
- KHS Aluminum Threadless, 25 Degree, 4-bolt, S:80mm, M-L:90mm, XL:100mm
- Tape/Grips
- Q2 Ergo Lock-On, Dual Density
Wheels & Tires
- Hubs
- Front: KK Aluminum, QR, w/Rubber Seal <br> Rear: KK Aluminum, QR, w/Rubber Seal, Cassette
- Rims
- Weinmann XTB26, 700x32H, Double Wall w/CNC Side Wall
- Rear Tire
- Kenda Kwick Journey, 700 x 35c w/K-Shield Anti-Puncture, 60TPI
- Spokes
- 14G Stainless Black, 32x32
- Front Tire
- Kenda Kwick Journey, 700 x 35c w/K-Shield Anti-Puncture, 60TPI
Pedals
- Pedals
- Wellgo Full Aluminum w/Non-Slip Tread, DU Bearings
Accessories
- Color
- Gloss Black / Rust / County Blue / Light Olive
Weight & Sizing
- Size
- Small / Medium / Large / X-Large / XX-Large
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
