Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Marin

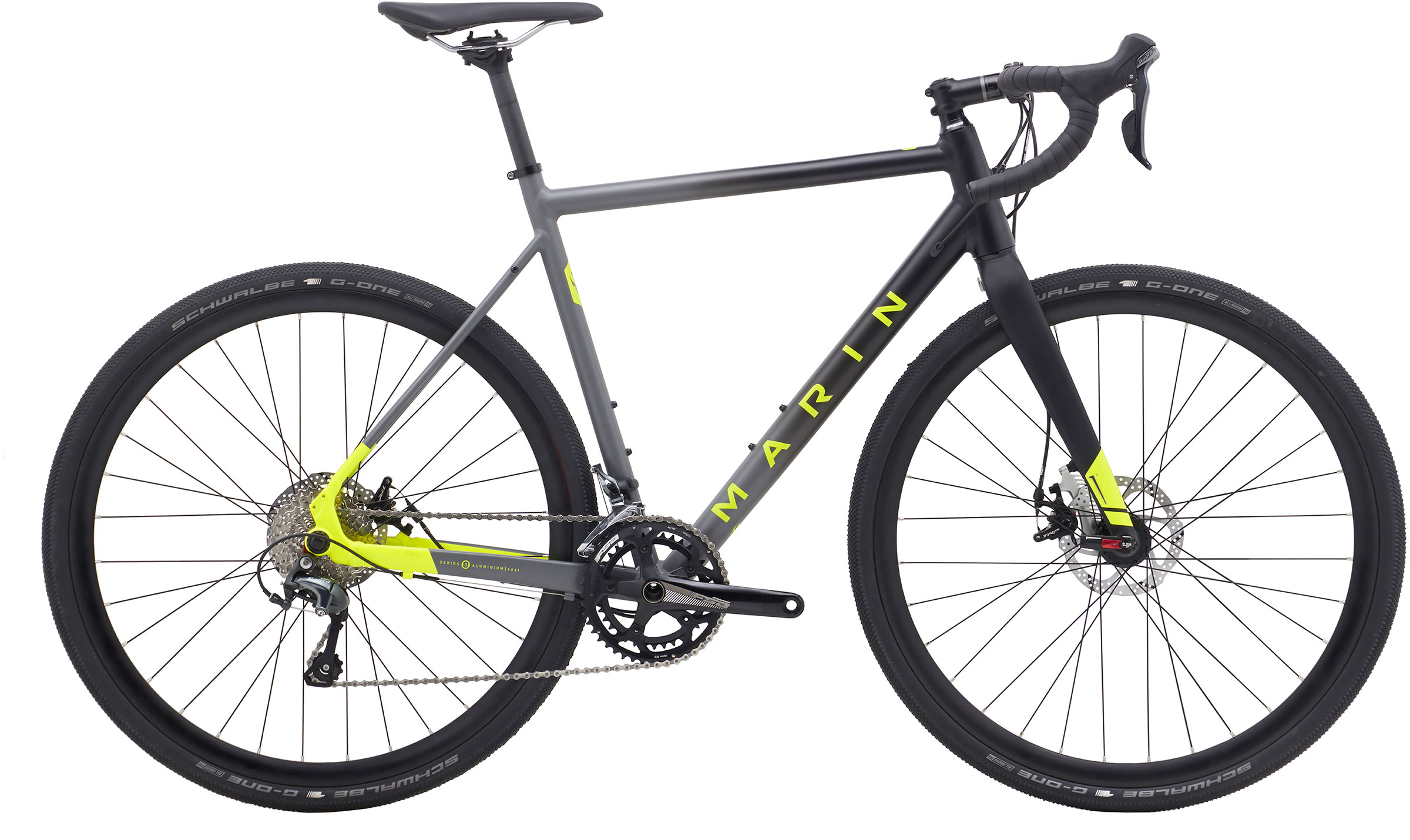

2019 Marin Cortina AX1
Value Guide market data · 2019 Marin Cortina AX1
12-month trend
18%
Direction and magnitude, not judgment
vs. category average
8%
Drops faster than category avg
Price over time - 2019 Marin Cortina AX1
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Cortina model years
2019 Cortina AX1 lineup
Overview
About this bike
2019 Marin Cortina AX1 value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Fork
- Naild NavIt Carbon, Tapered Alloy Steerer, Naild Locking Thru-Axle, IceIt Brake Cooling Fin
- Frame
- Series 4 CX, 6061 Aluminum, 700C Wheels, Tapered Head Tube, Relieved BB, Internal Cable Routing, Post Mount Disc, 142x12mm Naild 12.3.9 Thru-Axle
Drivetrain
- Groupset
- Shimano Tiagra
- Crankset
- FSA Gossamer Compact, 46/36T
- Bottom Bracket
- FSA MegaExo Threaded
- Chain
- KMC X10
- Cassette
- Shimano Tiagra HG-500, 11-34T
- Derailleur Rear
- Shimano Tiagra 10-Speed
- Derailleur Front
- Shimano Tiagra
- Shift Lever
- Shimano Tiagra 2x10-Speed
- Chainrings
- 46/36T
- Front Derailleur
- Shimano Tiagra
- Rear Derailleur
- Shimano Tiagra 10-Speed
- Shifters
- Shimano Tiagra 2x10-Speed
Brakes
- Brake Levers
- Shimano Tiagra 10-Speed STI
- Brakes
- Tektro Spyre-C Road Mechanical Disc, 160mm Rotor
Cockpit
- Handlebar
- Marin Butted Alloy, Compact 12º Flared Drop
- Stem
- Marin 3D Forged Alloy
- Grips
- Marin Microfiber Tape
- Headset
- FSA Orbit, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
- Seatpost
- Marin Alloy
- Saddle
- Marin Beyond Road Concept
Wheels & Tires
- Rims
- Marin Aluminum Double Wall, 21mm Inner, 30mm Tall, Disc Specific, Tubeless Compatible
- Spokes
- 14g Black Stainless Steel
- Tires
- WTB, Riddler Comp, 700Cx37, Wire Bead
- Hub Rear
- Forged Aluminum Alloy, 142x12mm, 6-Bolt Disc, 32H
- Hub Front
- Forged Aluminum Alloy, 100x15mm, 6-Bolt Disc, 32H
- Axles
- Front: 100x15mm Naild Front Locking Thru-Axle, 12.3.9 QR Mechanism , Rear: 142x12mm Naild 12.3.9 Thru-Axle
- Front Tire
- Schwalbe X-One Allround, 700Cx35, Folding Bead
- Hubs
- Forged Aluminum Alloy, 6-Bolt Disc, 32H
Pedals
- Pedals
- - - -
Accessories
- Extras
- Naild Front Locking Thru-Axle, 12.3.9 QR Mechanism, LocIt Lever Technology
- Brakes Front
- Tektro Spyre-C Road Mechanical Disc, 160mm Rotor
- Brakes Rear
- Tektro Spyre-C Road Mechanical Disc, 160mm Rotor
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
