Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Orbea

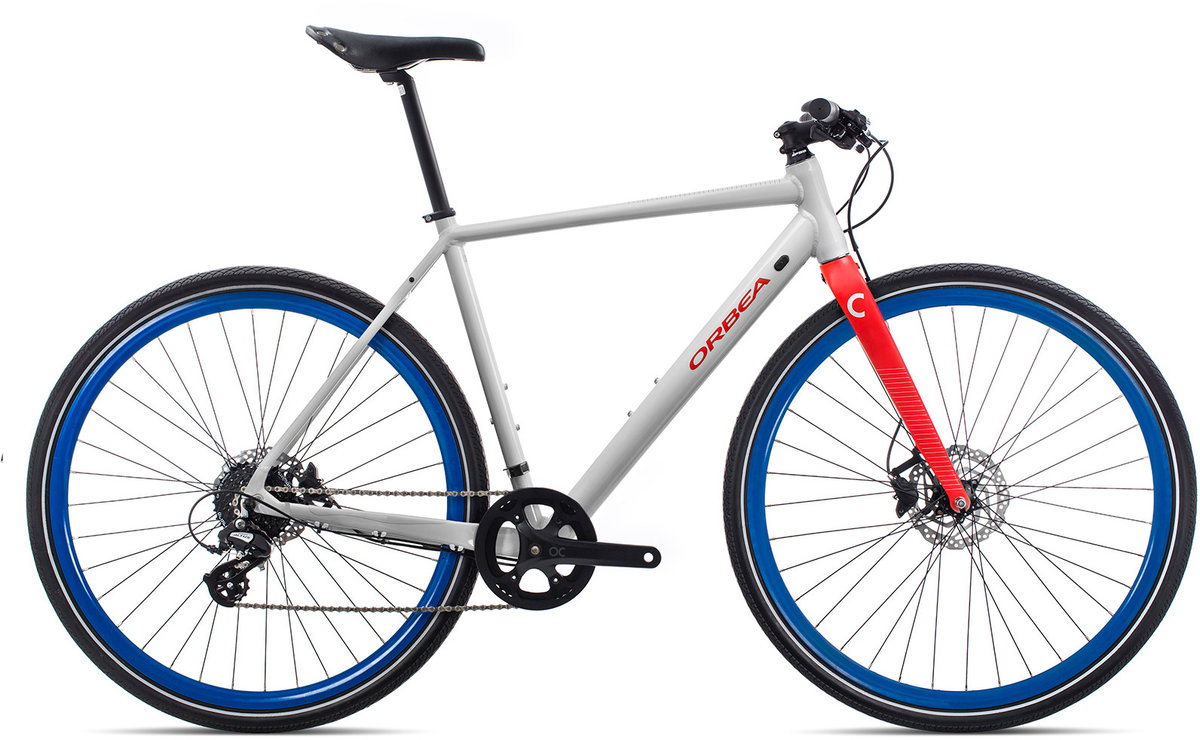

2020 Orbea Carpe 30
Value Guide market data · 2020 Orbea Carpe 30
12-month trend
7%
Direction and magnitude, not judgment
vs. category average
— %
No category comparison available
Price over time - 2020 Orbea Carpe 30
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Carpe model years
2020 Carpe 30 lineup
Overview
About this bike
2020 Orbea Carpe 30 value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Frame
- Aluminum / Orbea Urban Speed, Aluminium 6000, Orbea Tube Shaping, Flat Mount Disc Brake, 135x9 QR, Carrier and Mudguard compatible, max 700x40C, Inner Cable routing,Tire Clearance:40cColors:White (Gloss) / Bright Red (Mate); Met. Navy Blue (Matte) / Purple (Gloss); Bright Red-Black (Matte-Gloss); Black (Matte-Gloss)
- Suspension
- Rigid
- Fork
- Aluminum / Speed 400mm Alloy Flat mount
- Headset
- 1-1/8" Semi-Integrated
Drivetrain
- Drivetrain
- 1 × 8
- Groupset
- Altus
- Rear Derailleur
- Shimano Altus M310
- Crank
- Orbea Alloy 42t
- Shifters
- Shimano SL-M315
- Cassette
- Shimano HG200 12-32t 8-Speed
- Chain
- KMC X8
Brakes
- Brakes
- Shimano Hydraulic Disc / Shimano MT200 Hydraulic DiscType:Shimano Hydraulic Disc
Cockpit
- Stem
- Alloy 31.8mm interface 7º
- Handlebar
- Alloy 31.8mm Riser 640mm
- Saddle
- Velo 1221
- Seatpost
- Alloy 27.2 Offset 0Type:Rigid
Wheels & Tires
- Wheels
- 700c Aluminum
- Rims
- Orbea Airline Corsa Disc 700X19c
- Tires
- Kenda K1067 700x38C Reflective type+puncture protection
Pedals
- Pedals
- VP-538 Black
Frame sizing
XSManufacturer sizing
SMManufacturer sizing
MDManufacturer sizing
LGManufacturer sizing
XLManufacturer sizing
MD highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- 571
- Reach
- 395
- Top Tube Length
- 559
- Seat Tube Length
- 525
- Chainstay Length
- 435
- Wheelbase
- 1,052
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
