Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Orbea

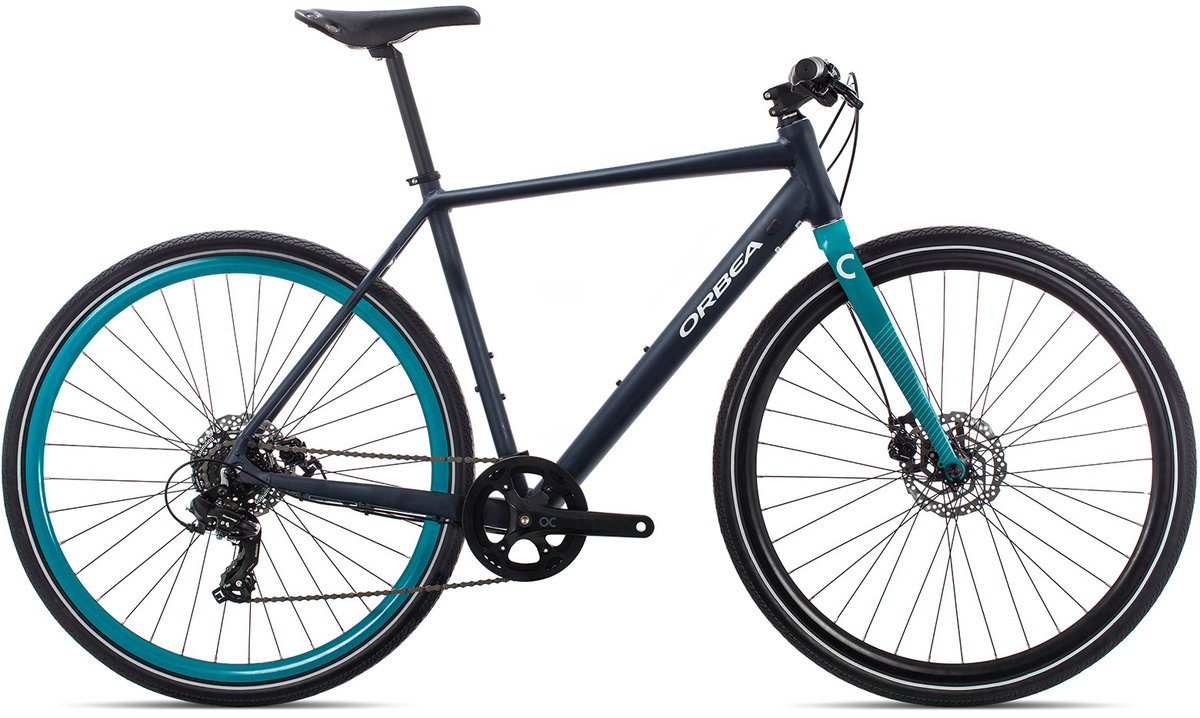

2020 Orbea Carpe 40
Value Guide market data · 2020 Orbea Carpe 40
12-month trend
7%
Direction and magnitude, not judgment
vs. category average
— %
No category comparison available
Price over time - 2020 Orbea Carpe 40
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Carpe model years
2020 Carpe 40 lineup
Overview
About this bike
2020 Orbea Carpe 40 value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Frame Construction
- Orbea Urban Speed, Aluminium 6000, Orbea Tube Shaping, Flat Mount Disc Brake, 135x9 QR, Carrier and Mudguard compatible, max 700x40C, Inner Cable routing,
- Fork Brand & Model
- Speed 400mm Steel Post mount
- Fork
- Speed 400mm Steel Post mount
- Frame
- Orbea Urban Speed, Aluminium 6000, Orbea Tube Shaping, Flat Mount Disc Brake, 135x9 QR, Carrier and Mudguard compatible, max 700x40C, Inner Cable routing,
Drivetrain
- Groupset
- 2020 Orbea Carpe 40
- Crankset
- Prowheel
- Chain
- KMC Z7 GYBR
- Rear Derailleur
- Shimano TY-300
- Cassette/Rear Cogs
- Shimano HG200 12-32T 7-Speed
- Chainrings
- 42T
- Shifters
- Shimano SL-M315
Brakes
- Brake Levers
- Orbea Trekking Alloy 4-finger
- Brakes
- Shimano TX805 Mechanical Disc
Cockpit
- Saddle
- Velo 1221
- Headset
- 1-1/8-inch Semi-Integrated
- Stem
- Alloy 31.8 A:6º
- Handlebars
- Alloy 31.8mm Riser 640mm
- Seat Post
- Alloy 27.2 Offset 0
Wheels & Tires
- Tires
- Kenda K1067 700x38C Reflective type+puncture protection
Pedals
- Pedals
- VP-538 Black
Accessories
- Rims/Wheels
- Orbea Airline Corsa Disc 700C
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
