Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Orbea

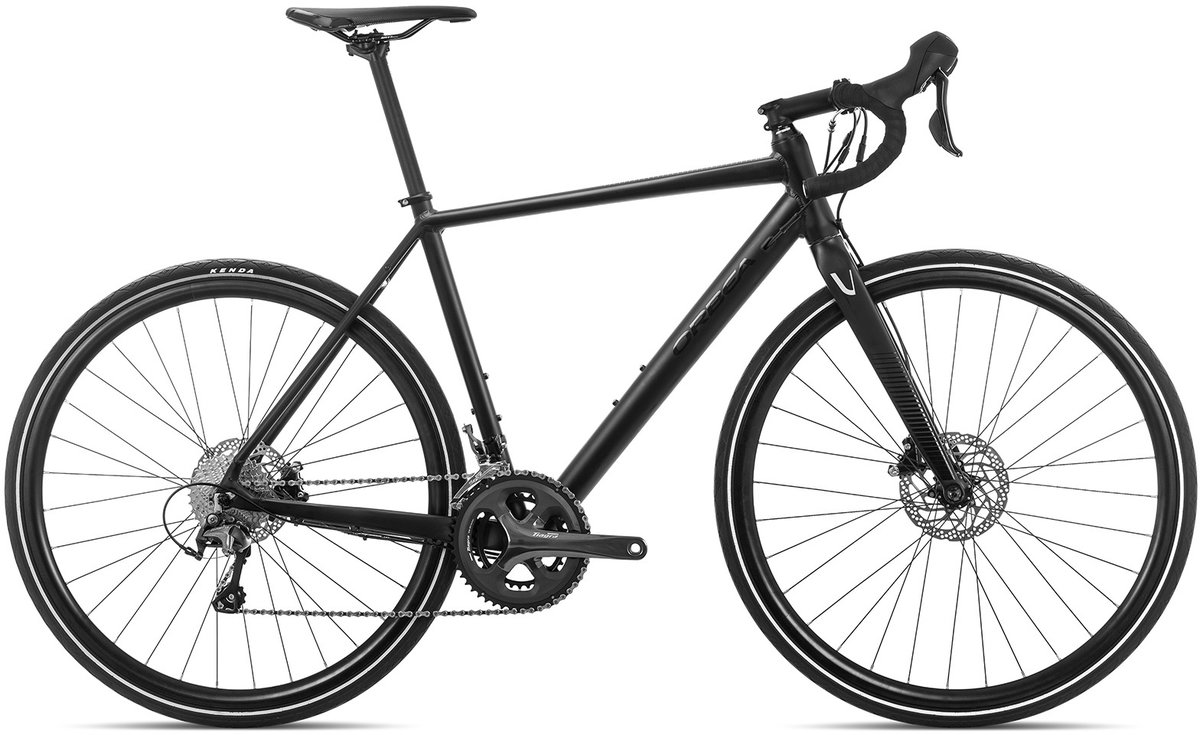

2020 Orbea Vector Drop
Value Guide market data · 2020 Orbea Vector Drop
12-month trend
7%
Direction and magnitude, not judgment
vs. category average
— %
No category comparison available
Price over time - 2020 Orbea Vector Drop
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Vector model years
2020 Vector Drop lineup
Overview
About this bike
2020 Orbea Vector Drop value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Frame Construction
- Orbea Urban Speed, Aluminium 6000, Orbea Tube Shaping, Flat Mount Disc Brake, 135x9 QR, Carrier and Mudguard compatible, max 700x40C, Inner Cable routing,
- Fork Brand & Model
- Speed 400mm Carbon Flat mount
- Fork
- Speed 400mm Carbon Flat mount
- Frame
- Orbea Urban Speed, Aluminium 6000, Orbea Tube Shaping, Flat Mount Disc Brake, 135x9 QR, Carrier and Mudguard compatible, max 700x40C, Inner Cable routing,
Drivetrain
- Groupset
- 2020 Orbea Vector Drop
- Crankset
- Shimano Tiagra 4700
- Chain
- KMC X10
- Front Derailleur
- Shimano Tiagra 4700
- Rear Derailleur
- Shimano Tiagra 4700 GS
- Cassette/Rear Cogs
- Shimano Tiagra HG-500 11-32T 10-Speed
- Chainrings
- 34x50T
- Shifters
- Shimano Tiagra ST-4770
Brakes
- Brakes
- Shimano Tiagra 4770 Hydraulic Disc
Cockpit
- Saddle
- Selle Royal Asphalt GR
- Headset
- 1-1/8-inch Semi-Integrated
- Stem
- Orbea OC-II
- Handlebars
- OC1 Road Handlebar, reach 80mm, drop 125mm
- Seat Post
- Alloy 27.2 Offset 0
- Tape/Grips
- Orbea Eva
Wheels & Tires
- Tires
- Kenda K1098 700x32 Reflective Tape
Accessories
- Rims/Wheels
- Orbea Airline Corsa Disc 700C
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
