Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Raleigh

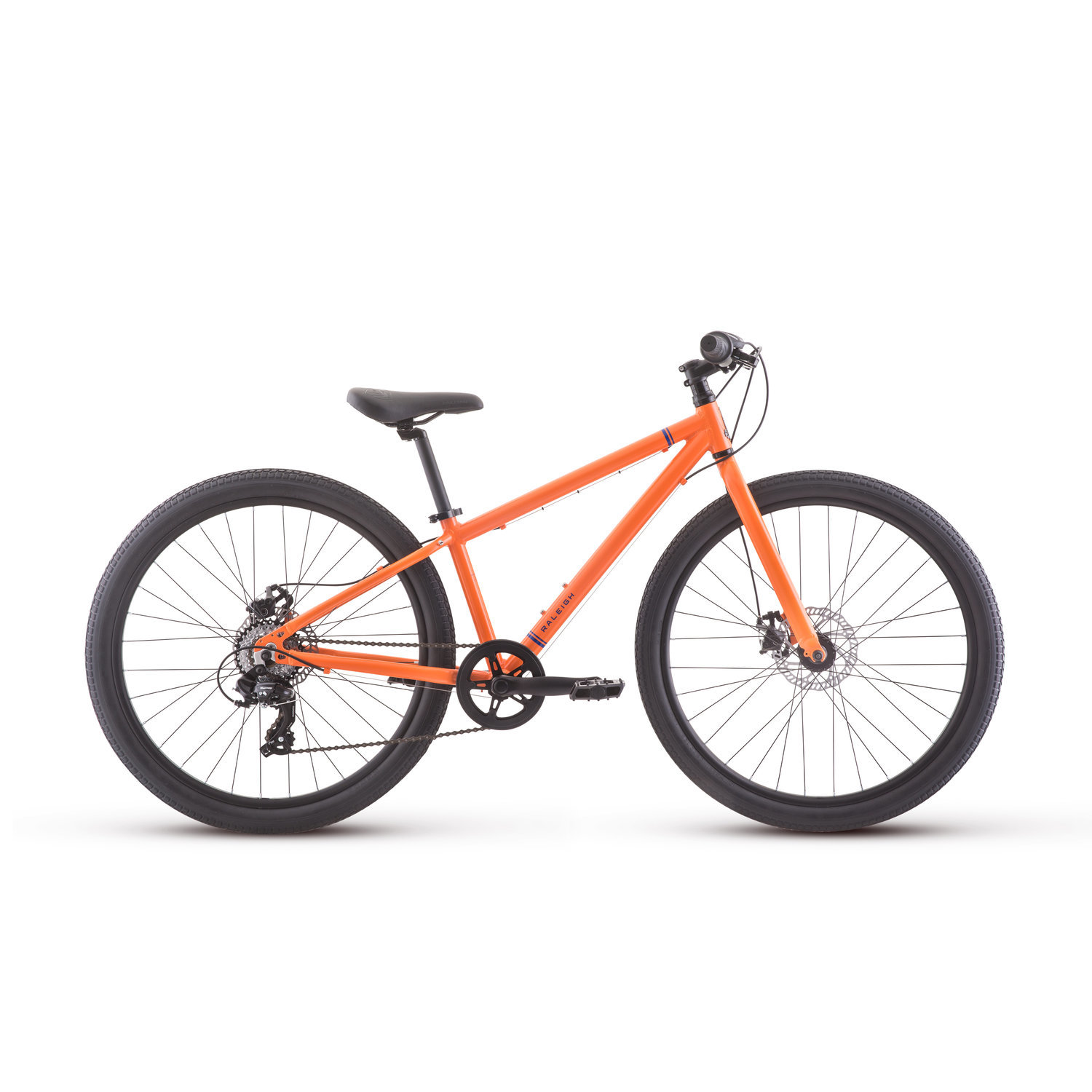

2018 Raleigh Redux 26
Value Guide market data · 2018 Raleigh Redux 26
12-month trend
— %
Direction and magnitude, not judgment
vs. category average
— %
No category comparison available
Price over time - 2018 Raleigh Redux 26
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Redux model years
2018 Redux 26 lineup
Overview
About this bike
2018 Raleigh Redux 26 value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Frame
- Aluminum / 26" 6061 Aluminum w/Replaceable Hanger
- Suspension
- Rigid
- Fork
- Aluminum / 26" Rigid Alloy Fork
- Headset
- 1 1/8" Threadless
Drivetrain
- Drivetrain
- 1 × 7
- Groupset
- Tourney
- Bottom Bracket
- Sealed Mech Loose Ball
- Rear Derailleur
- Shimano Tourney
- Crank
- 152 Alloy, 36t w/Double Guard
- Shifters
- Shimano Revo 7spd
- Cassette
- 7spd 14-32
- Chain
- KMC Z51
Brakes
- Brakes
- Mechanical Disc / Alloy Mechanical Disc Brakes w/160mm RotorType:Mechanical Disc
- Brake Levers
- Alloy w/ Adustable Reach
Cockpit
- Stem
- Alloy Ahead 60mm x 7° 31.8
- Handlebar
- 620mm Alloy 31.8, 25mm Rise
- Saddle
- Jr. Mountain
- Seatpost
- Alloy Micro Adjust 27.2 x 300mmType:Rigid
- Grips
- Jr. Soft PVC
Wheels & Tires
- Wheels
- 26″ Aluminum / 26″
- Top Tube Length
- 540
- Seat Tube Length
- 330
- Seat Tube Angle
- 72.5
- Head Tube Length
- 90
- Head Tube Angle
- 70.0
- Rims
- Alloy Anodized 32h Double Wall Disc
- Spokes
- 14g
- Front Hub
- Alloy Disc 32h w/QR
- Rear Hub
- Alloy Disc 32h w/QR, Freewheel
- Tires
- Kenda Kruiser 26X2.125
Pedals
- Pedals
- Resin Platform
Accessories
- Stack
- 511
- Reach
- 379
- Stack/Reach Ratio
- 1.35
- BB Drop
- 55
- Front Center
- 593
- Chainstay Length
- 425
- Wheelbase
- 1,012
- Rake
- 40
- Standover Height
- 610
Weight & Sizing
- Weight
- 24.6 lbs
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
