Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Tern

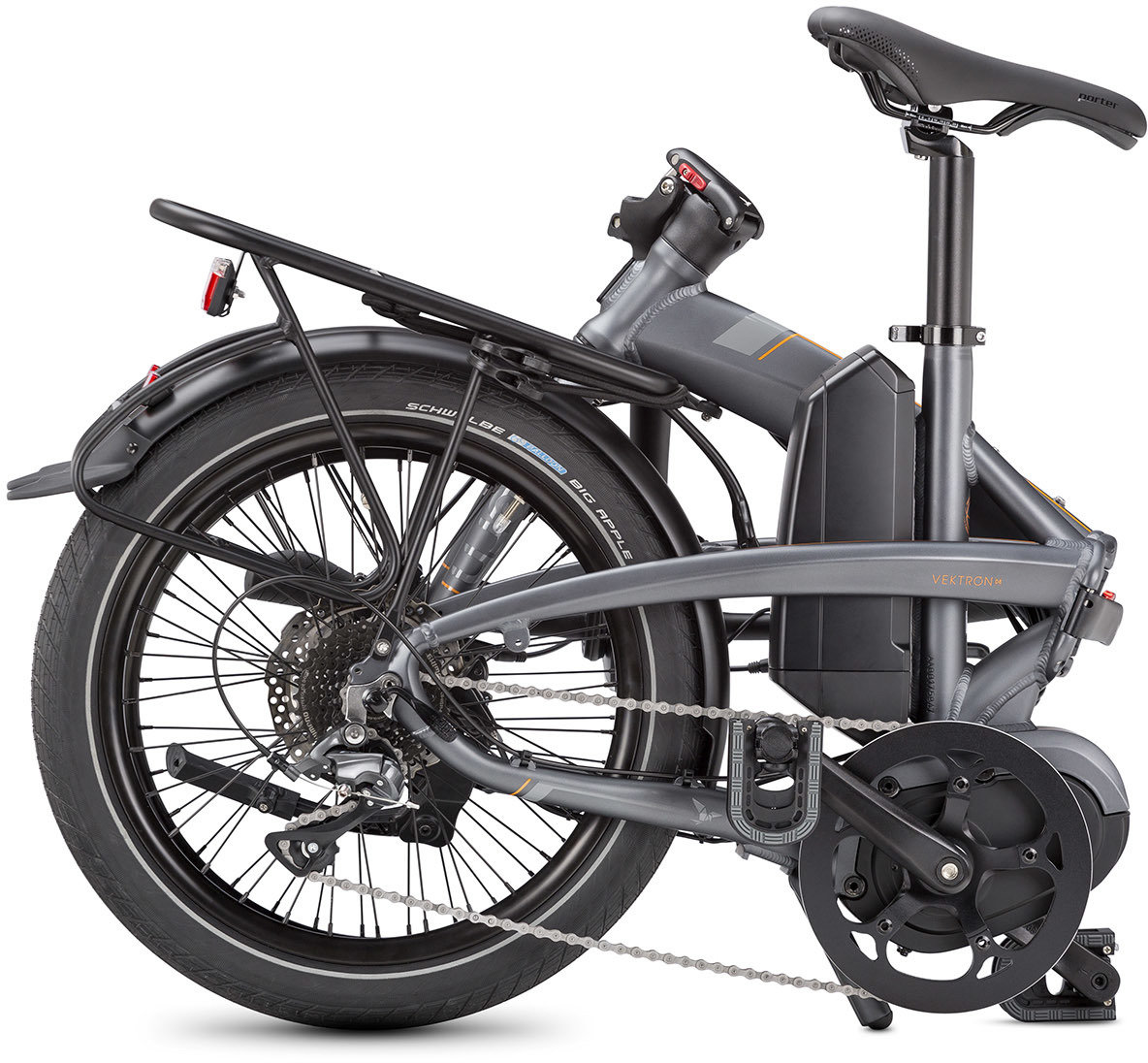

2020 Tern Vektron D8
Value Guide market data · 2020 Tern Vektron D8
12-month trend
10%
Direction and magnitude, not judgment
vs. category average
4%
Holds value better than category avg
Price over time - 2020 Tern Vektron D8
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Vektron model years
2020 Vektron D8 lineup
Overview
About this bike
2020 Tern Vektron D8 value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Fork
- Integrated, hi-tensile steel
- Frame
- Tern Vektron, hydroformed aluminum, OCL+ joint, 3 patented technologies
Drivetrain
- Groupset
- Shimano Claris
- Bottom Bracket
- Motor integrated
- Cassette
- Shimano 11-32T, 8 spd
- Chain
- 8 spd, DHT for eBike, GST corrosion resistant coating
- Crankset
- Vektron custom, forged AL6061 crankarm
- Rear Derailleur
- Shimano Claris
- Shifters
- Shimano, 1 x 8 spd, trigger
Brakes
- Brake Levers
- Shimano, hydraulic disc
- Brakes
- Shimano, hydraulic disc
Cockpit
- Handlebar
- Flat bar, 6061-Al, Tern Andros adapted
- Headset
- Tern Flux, cartridge bearings, Physis integrated
- Saddle
- Tern Porter, patented GripPad design
- Seatpost
- SuperOversize, 6061-Al, micro-adjust clamp
- Stem
- Tern Andros (G2), adjustable, forged construction, patented technology
- Grips
- Velo ergonomic, lock-on
Wheels & Tires
- Front Tire
- Schwalbe Big Apple, Active Line, 50-406, puncture protection, Reflex
- Hubs
- Shimano disc
- Rims
- Kinetix Comp, for disc
- Spokes
- Stainless steel
Pedals
- Pedals
- Folding, alloy body
E-System
- Battery
- Bafang M400 Drive System Battery, 400 Wh, Panasonic cells
- Display
- Bafang M400 Drive System Display, 5 mode selectable, walk assist
- Motor
- Bafang M400 Drive System, 36 V/250 W, max speed 25 kph (EU); max speed 20 mph (US), max torque 80 Nm
- Range
- 40-90 km (25-56 mi)
Accessories
- Max Assisted Speed
- 20mph
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
