Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Diamondback

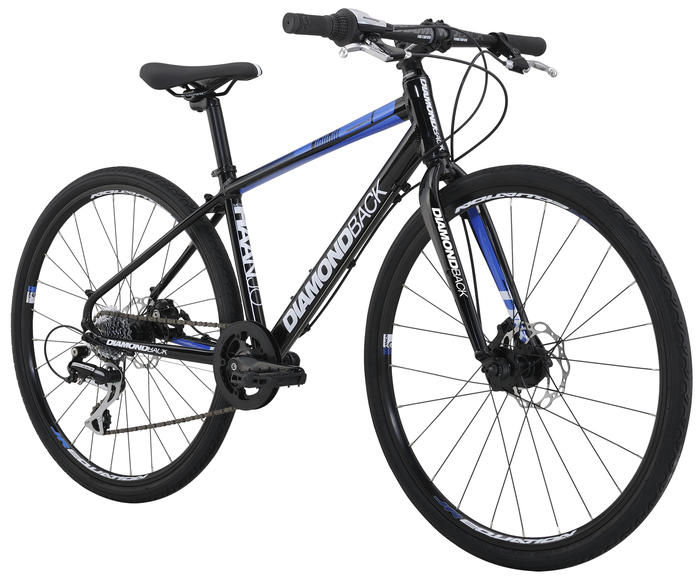

2016 Diamondback Haanjo Metro 24
Value Guide market data · 2016 Diamondback Haanjo Metro 24
12-month trend
1%
Direction and magnitude, not judgment
vs. category average
14%
Drops faster than category avg
Price over time - 2016 Diamondback Haanjo Metro 24
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Haanjo model years
2016 Haanjo Metro 24 lineup
Overview
About this bike
2016 Diamondback Haanjo Metro 24 value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Frame
- 6061-T6 Aluminum Alloy Jr. Frame, Hydroformed Top Tube, Disc Tabs, Rack Ready
- Fork
- DB Jr. Steel Urban Fork, Disc Specific, 1 1/8" Steel Steerer
- Fork Brand & Model
- DB Jr. Steel Urban Fork, Disc Specific, 1 1/8inch Steel Steerer
- Frame Construction
- 6061-T6 Aluminum Alloy Jr. Frame, Hydroformed Top Tube, Disc Tabs, Rack Ready
Drivetrain
- Groupset
- Shimano Acera
- Cranks
- 152mm Alloy Arm, w/ 32T Single Ring and Guard.
- Bottom Bracket
- Square Taper - 5pc
- Rear Derailleur
- Shimano Acera 8 Speed
- Chain
- KMC HG50
- Shifter
- Shimano Tourney 8 Speed Grip Shift
- Cassette
- Shimano HG51 8 Speed, 11-28T
- Chainrings
- 32T
- Crankset
- Aluminum
- Shifters
- Shimano Tourney 8 Speed Grip Shift
Brakes
- Brake Levers
- Alloy Linear
- Brakes
- Tektro Aries Mechanical Disc w/ 140mm Rotors
Cockpit
- Handlebar
- DB Alloy, 580mm Wide, 31.8 Bar Bore
- Stem
- DB 3D Forged 7° 31.8mm, 60mm Reach
- Seatpost
- Alloy Micro Adjust 27.2mm
- Seat
- Jr. Equip Saddle
- Headset
- Threadless 1 1/8"
- Grips
- DB Kraton
- Stem Length
- 60.0mm
- Handlebar Width
- 23.0mm
- Saddle
- Jr. Equip Saddle
Wheels & Tires
- Rims
- DB Equation R 24"
- Tires
- Kenda K193 K-West 24x1 3/8" (37-540)
- Front Hub
- 24h Semi-Sealed Alloy w/ CNC Disc Mount
- Rear Hub
- 28h Semi-Sealed Alloy Cassette w/ CNC Disc mount
- Spokes
- 14g
- Hubs
- Aluminum
- Wheel Set
- DB Equation R 24"
Pedals
- Pedals
- Resin Platform
Accessories
- Extras
- Owner's Manual
- Cogset
- Shimano HG51 8 Speed, 11-28T
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
