Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Raleigh

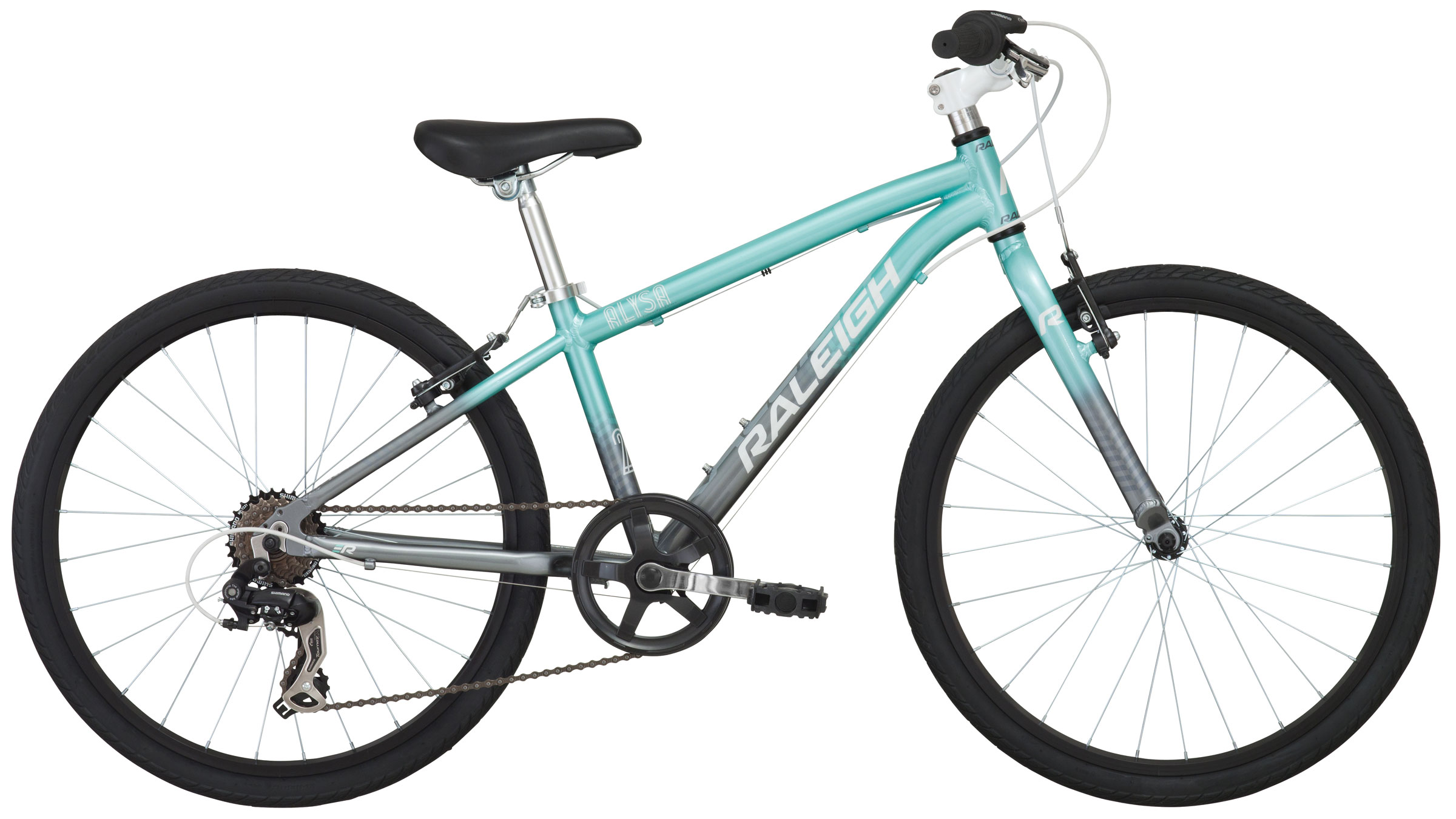

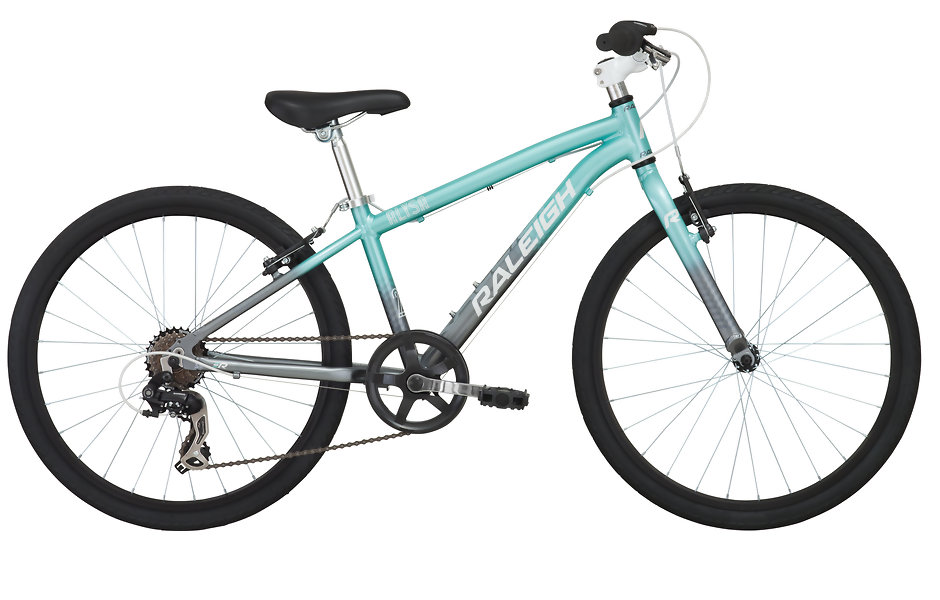

2017 Raleigh Alysa 24
Value Guide market data · 2017 Raleigh Alysa 24
12-month trend
3%
Direction and magnitude, not judgment
vs. category average
— %
No category comparison available
Price over time - 2017 Raleigh Alysa 24
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Alysa model years
2017 Alysa 24 lineup
Overview
About this bike
2017 Raleigh Alysa 24 value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Frame
- Aluminum / 24" Low Standover 6061 Aluminum w/Replaceable Hanger
- Suspension
- Rigid
- Fork
- Aluminum / 24" 6061 Aluminum Rigid, V-Mounts
- Headset
- 1-1/8" Threadless
Drivetrain
- Drivetrain
- 1 × 7
- Groupset
- Tourney
- Crank Length
- 150
- Bottom Bracket
- Sealed Mech Loose Ball
- Rear Derailleur
- Shimano Tourney FT 6/7 super short cage
- Crank
- 152mm 3pc Steel, 36t w/Double Guard
- Shifters
- Shimano Revo 7spd (Rear)
- Cassette
- Shimano TZ21 7spd (13-28t)
- Chain
- KMC Z51
Brakes
- Brakes
- Rim / Alloy V-BrakeType:Rim
- Brake Levers
- Alloy V-Brake
Cockpit
- Stem Length
- 35
- Handlebar Width
- 580
- Stem
- Alloy Ahead 60mm x 7° 31.8
- Handlebar
- 580mm Alloy 31.8, 25mm Rise
- Saddle
- Raleigh Jr. Road
- Seatpost
- Alloy Micro Adjust 27.2 x 300mmType:Rigid
- Grips
- Soft Kraton Rubber
Wheels & Tires
- Wheels
- 24″ Aluminum / 24″
- Top Tube Length
- 510
- Seat Tube Length
- 325
- Seat Tube Angle
- 71.0
- Head Tube Length
- 100
- Head Tube Angle
- 70.0
- Rims
- Alloy Anodized 28h
- Spokes
- 14g
- Front Hub
- Alloy 28h Nutted
- Rear Hub
- Alloy 28h Nutted Freewheel
- Tires
- 24x1.75"
Pedals
- Pedals
- Resin Platform
Accessories
- Stack
- 469
- Reach
- 348
- Stack/Reach Ratio
- 1.35
- BB Drop
- 35
- Front Center
- 552
- Chainstay Length
- 410
- Wheelbase
- 959
- Rake
- 41
- Standover Height
- 630
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
