Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
BMC

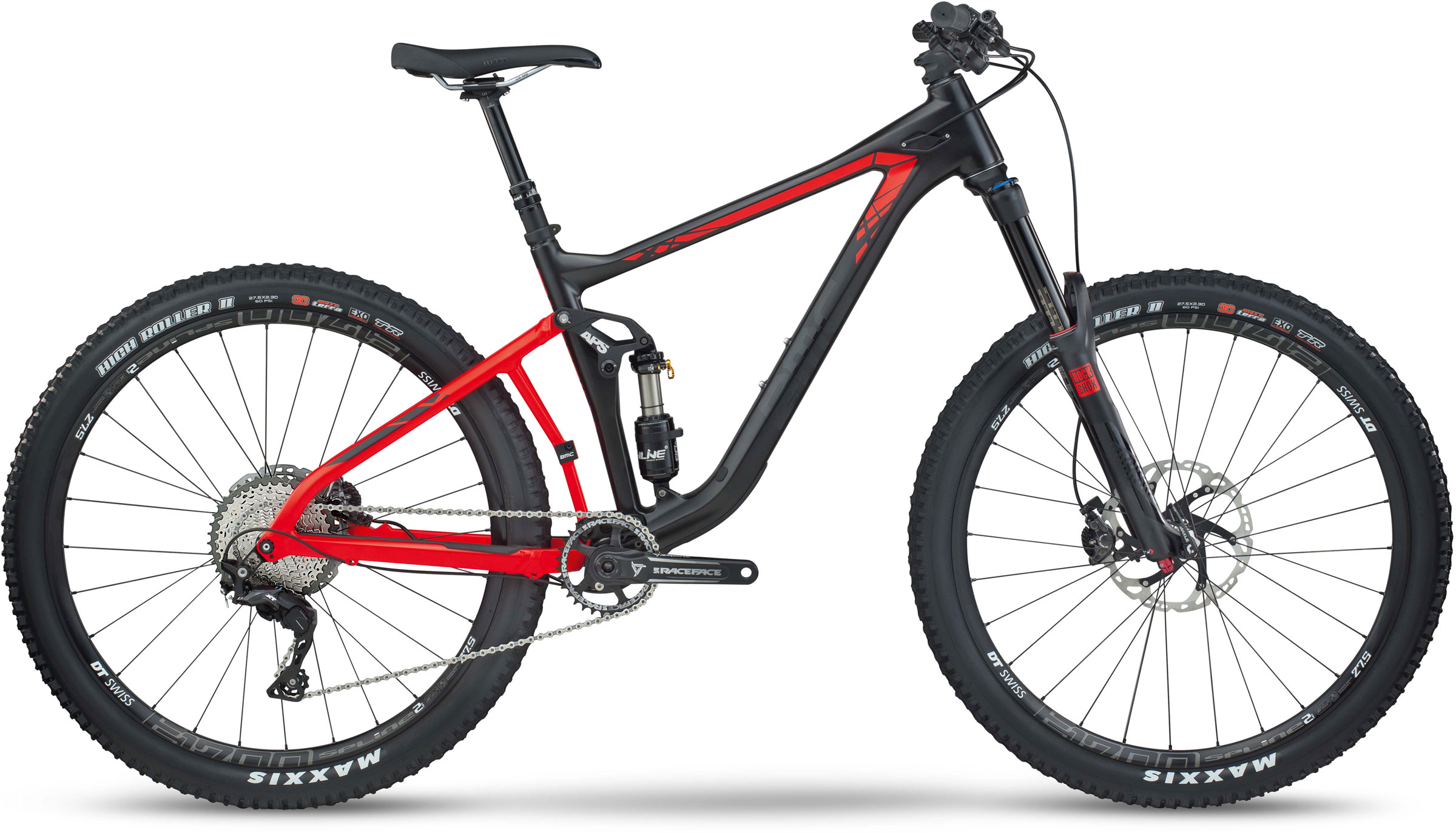

2017 BMC speedfox 02 trailcrew XT
Value Guide market data · 2017 BMC speedfox 02 trailcrew XT
12-month trend
15%
Direction and magnitude, not judgment
vs. category average
— %
No category comparison available
Price over time - 2017 BMC speedfox 02 trailcrew XT
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All speedfox model years
2022$4,184 - $4,859▼ 31% vs. 2017
2021$4,928 - $5,723▼ 18% vs. 2017
2020$3,998 - $4,643▼ 34% vs. 2017
2019$6,044 - $7,0190% vs. 2017
2018$6,974 - $8,099▲ 15% vs. 2017
2017$6,044 - $7,019Currently viewing
2016$7,672 - $8,909▲ 27% vs. 2017
2015$8,369 - $9,719▲ 38% vs. 2017
2013$3,720 - $4,320▼ 38% vs. 2017
2012$4,371 - $5,076▼ 28% vs. 2017
2011$3,906 - $4,536▼ 35% vs. 20172017 speedfox 02 trailcrew XT lineup
Overview
About this bike
2017 BMC speedfox 02 trailcrew XT value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Rear Shock
- Cane Creek DB Inline
- Fork
- Rockshox Pike RC Solo Air (150mm)
- Frame
- Speedfox Trailcrew 02 27.5 - Advanced Pivot System, 02 Carbon (F), Al-13 Triple-butted aluminum (R), (150mm)
Drivetrain
- Groupset
- 2017 BMC speedfox 02 trailcrew XT
- Crankset
- RaceFace Turbine DM
- Chain
- KMC X-11-1 EPT
- Rear Derailleur
- Shimano XT, Shadow Plus
- Cassette/Rear Cogs
- Shimano XT, 11-42T
- Chainrings
- 32T
- Shifters
- Shimano XT
Brakes
- Brakes
- Shimano XT (203/180mm)
Cockpit
- Saddle
- WTB Volt Race
- Stem
- BMC AMSM 02
- Handlebars
- BMC MRB 02, 780mm
- Seat Post
- RockShox Reverb Stealth
Wheels & Tires
- Tires
- Maxxis Highroller II TLR EXO 3C, 27.5x2.3
- Axles
- Front: 15mm thru-axle</br>Rear: 12x142mm thru-axle
Accessories
- Rims/Wheels
- DT Swiss E 1700 Spline TWO
- Color
- Super Red
Weight & Sizing
- Size
- X-Small / Small / Medium / Large / X-Large
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
Inspection
Suspension service
Confirm fork lowers and rear shock service intervals; ask for the most recent service receipts.
Inspection
Frame pivots & bearings
Cycle the suspension off the bike to feel for play, grit, or noise in pivot bearings.
