Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Cervelo

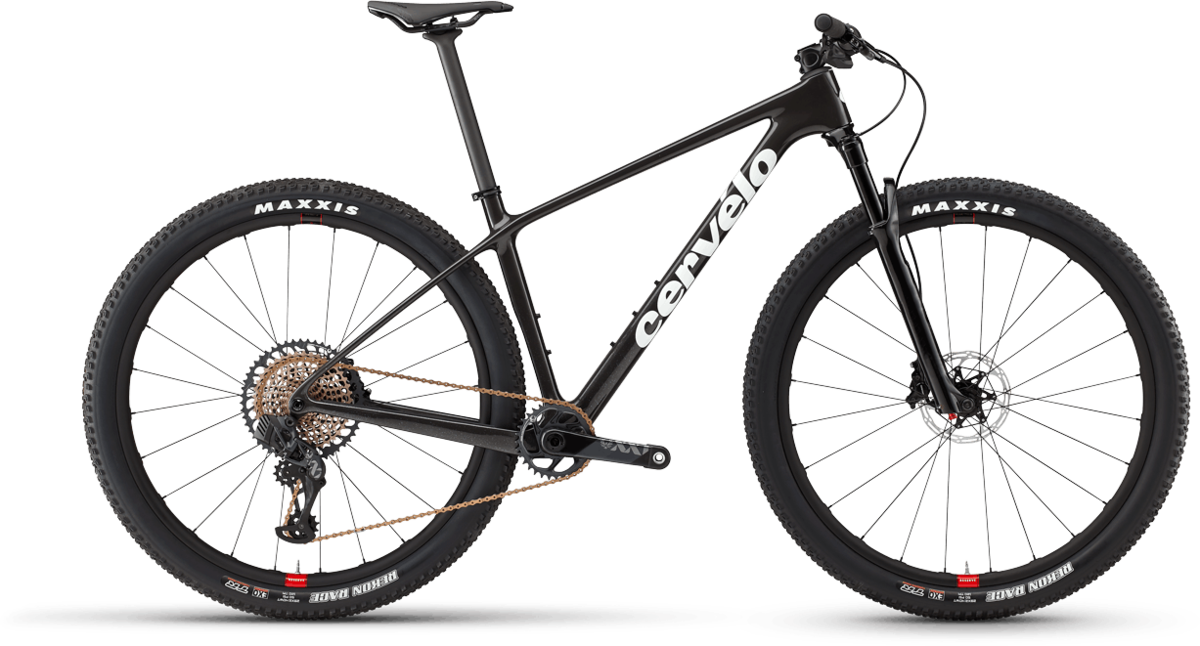

2023 Cervelo ZHT-5 XX1 AXS
Value Guide market data · 2023 Cervelo ZHT-5 XX1 AXS
12-month trend
13%
Direction and magnitude, not judgment
vs. category average
— %
No category comparison available
Price over time - 2023 Cervelo ZHT-5 XX1 AXS
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All ZHT-5 model years
2023 ZHT-5 XX1 AXS lineup
Overview
About this bike
2023 Cervelo ZHT-5 XX1 AXS value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Fork
- Rockshox SID SL Ultimate, DebonAir spring, 2 position remote Charger Race Day damper, tapered steerer, 15x110mm, Maxle Stealth, 44mm offset, 100mm travel
Drivetrain
- Groupset
- 2023 Cervelo ZHT-5 XX1 AXS
- Crankset
- SRAM XX1 Eagle, 32T, Boost 148 DUB
- Bottom Bracket
- SRAM DUB, BSA 73mm
- Chain
- SRAM XX1 Eagle, 12 speed
- Rear Derailleur
- SRAM XX1 Eagle AXS, 12 speed
- Shifters
- SRAM AXS Rocker
- Cassette/Freewheel
- SRAM XX1 Eagle, 10-52, 12 speed
Brakes
- Brakes
- SRAM Level Ultimate
- Rotors
- SRAM CLX R Centerlock
Cockpit
- Seatpost
- CervÉlo SP29 Carbon 30.9
- Saddle
- Prologo Dimension NDR Nack
- Handlebar
- Race Face Next SL Carbon, 35mm clamp, 740mm width, 10mm rise
- Headset
- FSA IS2 1-1/2 x 1-1/2
- Stem
- Race Face Aeffect Alloy, 35mm clamp, 6 degree
Wheels & Tires
- Rear Tire
- Maxxis Rekon Race, EXO 120TPI, 29x2.4
- Axles
- Cervelo Thru-axle, 12x148
- Front Tire
- Maxxis Rekon Race, EXO 120TPI, 29x2.4
- Wheel Set
- Rear: Reserve 28 XC, 28mm IW, i9 1/1,12x148mm, XD freehub, 24H, centerlock, tubeless compatible Front: Reserve 28 XC, 28mm IW, i9 1/1, 15x110mm, 24H, centerlock, tubeless compatible
Pedals
- Pedals
- Sold separately
Accessories
- Color
- Five Black
Weight & Sizing
- Size
- Small / Medium / Large / X-Large
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
Inspection
Suspension service
Confirm fork lowers and rear shock service intervals; ask for the most recent service receipts.
Inspection
Frame pivots & bearings
Cycle the suspension off the bike to feel for play, grit, or noise in pivot bearings.
