Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Diamondback

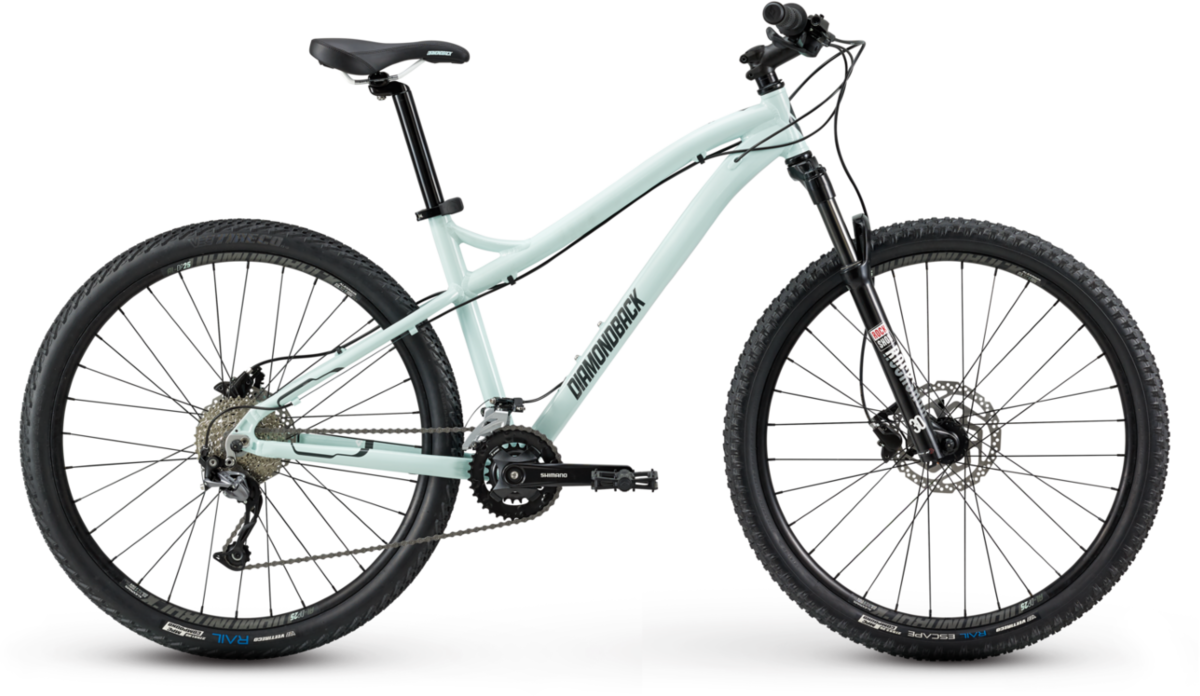

2020 Diamondback Lux 2
Value Guide market data · 2020 Diamondback Lux 2
12-month trend
10%
Direction and magnitude, not judgment
vs. category average
— %
No category comparison available
Price over time - 2020 Diamondback Lux 2
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Lux model years
2021$1,302 - $1,512▲ 27% vs. 2020
2020$1,023 - $1,188Currently viewing
2019$1,023 - $1,1880% vs. 2020
2018$1,023 - $1,1880% vs. 2020
2017$1,023 - $1,1880% vs. 2020
2016$1,116 - $1,296▲ 9% vs. 2020
2015$1,116 - $1,296▲ 9% vs. 2020
2014$1,116 - $1,296▲ 9% vs. 2020
2013$605 - $702▼ 41% vs. 2020
2012$512 - $594▼ 50% vs. 2020
2011$465 - $540▼ 55% vs. 2020
2010$465 - $540▼ 55% vs. 20202020 Lux 2 lineup
Overview
About this bike
2020 Diamondback Lux 2 value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Frame
- Aluminum / Lux 27.5 Women's Specific Double Butted 6061-T6 Aluminum, Super Low TT for Increased Clearance, w/ Formed Top / Down Tube
- Suspension
- Hardtail, 100mm
- Fork
- RockShox 30 Silver TK / RockShox 30 Silver TK 27.5", 100mm Travel, 30mm Stanchions, Magnesium Lower, Alloy CrownTravel:100mm
- Headset
- 1 1/8" Zero Stack
Drivetrain
- Drivetrain
- 2 × 9
- Groupset
- Alivio, Altus
- Bottom Bracket
- Sealed Cartridge
- Rear Derailleur
- Shimano Alivio M4000, 9 Speed
- Front Derailleur
- Shimano Alivio, Side Swing, Front Pull, Direct Mount for 2x9
- Crank
- Shimano MT-10 36/22T
- Shifters
- Shimano Altus, 2x9 Speed Rapidfire
- Cassette
- Shimano HG200, 9 Speed Cassette, 11-32T
- Chain
- KMC Z9, 9 Speed
Brakes
- Brakes
- Shimano Hydraulic Disc / Shimano BR-M200 Hydraulic Disc, w/ 180mm Front /160mm Rear RotorsType:Shimano Hydraulic Disc
- Brake Levers
- Shimano BR-M200 Hydraulic Lever w/ Reach Adjust
Cockpit
- Stem
- DB 3D Forged, 7° Rise, 31.8 Bar Bore
- Handlebar
- Diamondback, 740mm Wide, 15mm Rise, 31.8 Bar Bore
- Saddle
- DB Women's Performance MTB Saddle
- Seatpost
- DB Alloy Micro Adjust, 30.9mmType:Rigid
- Grips
- DB "Flanged" 135mm Silcone
Wheels & Tires
- Wheels
- 27.5″ Aluminum
- Rims
- 32h Diamondback DP25 Doublewall
- Spokes
- 14g Stainless Steel
- Front Hub
- 32h Alloy w/ CNC Disc Mount; 100mm
- Rear Hub
- 32h Alloy, 9mm QR Cassette w/ CNC Disc Mount
- Tires
- Vee Rubber Rail Escape Fron 27.5x2.35 Rail Rear 27.5x1.95
Pedals
- Pedals
- DB Alloy Platform
Frame sizing
WSMManufacturer sizing
WMDManufacturer sizing
WLGManufacturer sizing
WMD highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- 546
- Reach
- 416
- Top Tube Length
- 580
- Seat Tube Length
- 430
- Chainstay Length
- 430
- Wheelbase
- 1,096
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
Inspection
Suspension service
Confirm fork lowers and rear shock service intervals; ask for the most recent service receipts.
Inspection
Frame pivots & bearings
Cycle the suspension off the bike to feel for play, grit, or noise in pivot bearings.
