Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Evil Bikes

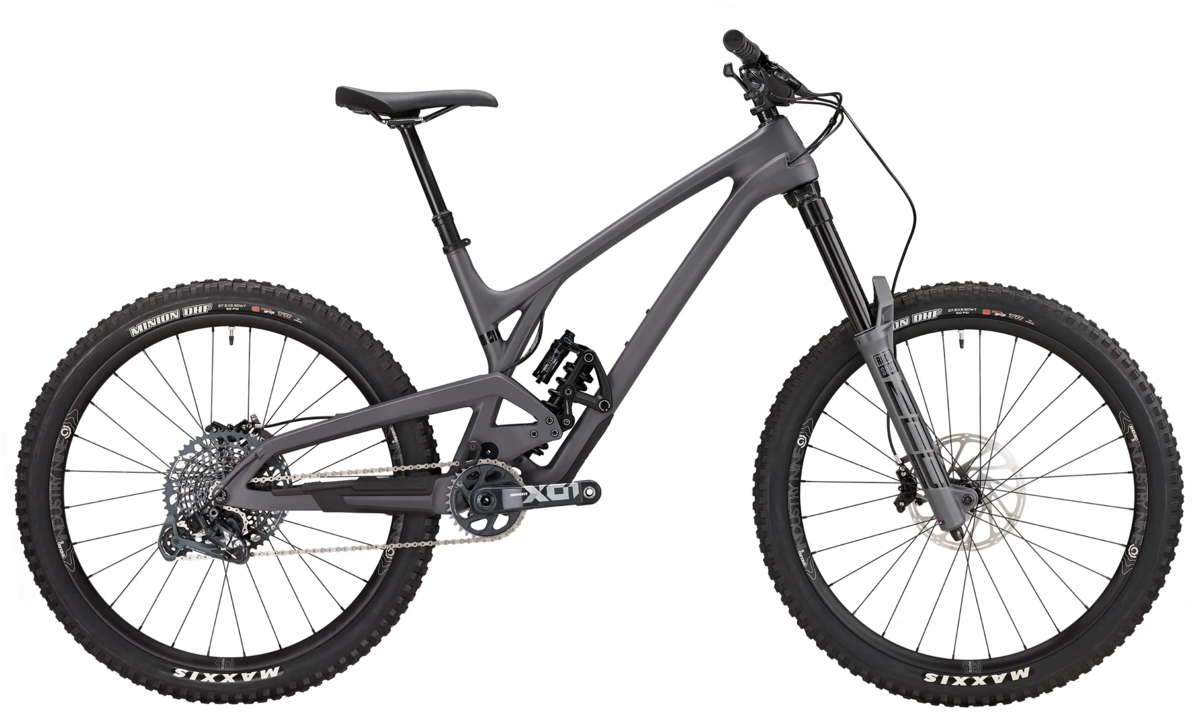

2022 Evil Bikes Insurgent X01 27.5-inch
Value Guide market data · 2022 Evil Bikes Insurgent X01 27.5-inch
12-month trend
12%
Direction and magnitude, not judgment
vs. category average
— %
No category comparison available
Price over time - 2022 Evil Bikes Insurgent X01 27.5-inch
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Insurgent model years
2022 Insurgent X01 27.5-inch lineup
Overview
About this bike
2022 Evil Bikes Insurgent X01 27.5-inch value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Rear Shock
- Rockshox Super Deluxe Coil Ultimate, Trunnion 205x65, ML 320
- Fork
- Rockshox ZEB Ultimate 27.5, Charger 2.1 RC2, 180mm Travel, 44mm Offset
- Frame
- Insurgent 168mm of travel, UD Carbon, Full Internal Cable Routing, SB+ 157mm Rear Spacing, Integrated Chain Guide, Threaded BB
Drivetrain
- Groupset
- 2022 Evil Bikes Insurgent X01 27.5-inch
- Crankset
- SRAM X01 Eagle DUB, SUPERBOOST+, 170mm, Direct Mount 32t, 56.5mm Chainline, Lunar
- Bottom Bracket
- SRAM DUB 73mm BSA
- Chain
- SRAM X01 Eagle w/Powerlock
- Rear Derailleur
- SRAM X01 Eagle, 12sp
- Shifters
- SRAM X01 Eagle, 12sp
- Cassette/Freewheel
- SRAM XG-1295-B1 Eagle, 10-52T, 10,12,14,16,18,21,24,28,32,36,42,52
Brakes
- Brakes
- SRAM Code RSC
- Rotors
- Front: SRAM CenterLine, 200mm<br>Rear: SRAM CenterLine, 180mm
Cockpit
- Seatpost
- Bike Yoke Revive, S:125mm, M: 160mm, L:185mm XL: 213mm
- Saddle
- WTB Volt Pro
- Handlebar
- Evil Boomstick Carbon, Backsweep: 8°, Upsweep: 5° Clamp: 35mm, Rise: 35mm, Width: 810mm
- Headset
- Works Components 1 Degree Angleset<br>Headset Spacers: Poly Spacers 5mm black
- Stem
- Evil 12 Gauge Stem, Length: 35mm
- Tape/Grips
- Evil Palmela Handerson lock-on
Wheels & Tires
- Rear Tire
- Front: Maxxis Minion DHF EXO TR, 27.5x2.5<br>Rear: Maxxis Minion DHF EXO TR, 27.5x2.3
- Front Tire
- Front: Maxxis Minion DHF EXO TR, 27.5x2.5<br>Rear: Maxxis Minion DHF EXO TR, 27.5x2.3
- Wheel Set
- Front: Industry Nine Enduro S Hydra Internal Width: 30.5mm, Hub: 110x15mm<br>Rear: Industry Nine Enduro S Hydra Internal Width: 30.5mm, Hub: 157x12mm
Pedals
- Pedals
- Sold Separately
Accessories
- Color
- Clean Slate
Weight & Sizing
- Size
- Small / Medium / Large / X-Large
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
Inspection
Suspension service
Confirm fork lowers and rear shock service intervals; ask for the most recent service receipts.
Inspection
Frame pivots & bearings
Cycle the suspension off the bike to feel for play, grit, or noise in pivot bearings.
