Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Focus

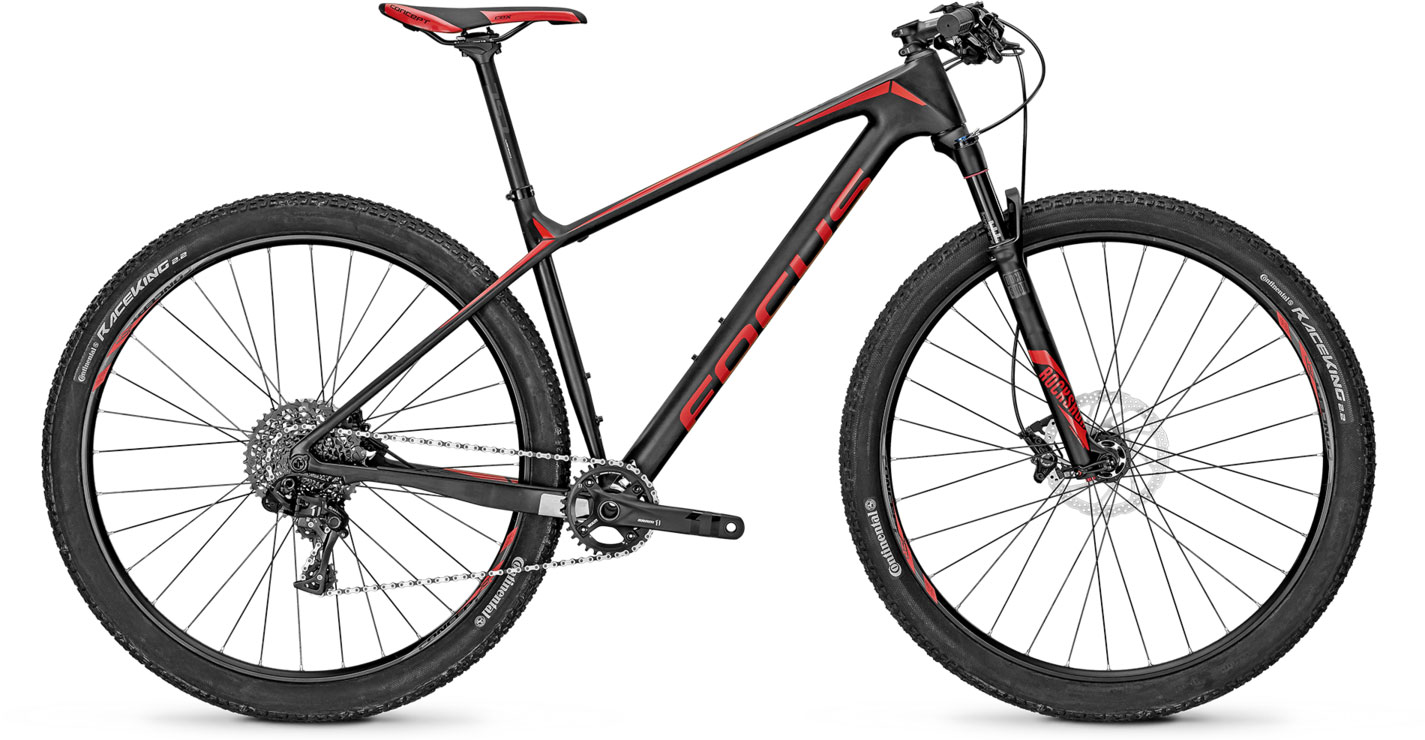

2016 Focus Raven EVO 29
Value Guide market data · 2016 Focus Raven EVO 29
12-month trend
4%
Direction and magnitude, not judgment
vs. category average
— %
No category comparison available
Price over time - 2016 Focus Raven EVO 29
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Raven model years
2016 Raven EVO 29 lineup
Overview
About this bike
2016 Focus Raven EVO 29 value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Frame Construction
- RAVEN, 1by only, carbon, 142 x 12mm thru-axle
- Fork Brand & Model
- RockShox Reba RL, Remote, 100mm, 15mm thru-axle
- Fork
- RockShox Reba RL, Remote, 100mm, 15mm thru-axle
- Frame
- RAVEN, 1by only, carbon, 142 x 12mm thru-axle
Drivetrain
- Groupset
- 2016 Focus Raven EVO 29
- Crankset
- SRAM S1000
- Bottom Bracket
- PF30
- Rear Cogs
- SRAM XG-1150, 11-speed 10-42
- Rear Derailleur
- SRAM X1
- Chainrings
- 30T
- Shifters
- SRAM GX
Brakes
- Brake Levers
- Shimano
- Brakes
- Shimano M615, 180mm/160mm rotors
Cockpit
- Seatpost
- Concept SL, 27.2 mm, 400mm
- Saddle
- Concept EX
- Stem
- Concept SL
- Handlebars
- Concept SL, flat
Wheels & Tires
- Hubs
- Concept EX
- Tires
- Continental Race King, 29 x 2.2
Accessories
- Rims/Wheels
- Concept EX
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
Inspection
Suspension service
Confirm fork lowers and rear shock service intervals; ask for the most recent service receipts.
Inspection
Frame pivots & bearings
Cycle the suspension off the bike to feel for play, grit, or noise in pivot bearings.
