Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Haro
2020 Haro Double Peak 29 Trail
Value Guide market data · 2020 Haro Double Peak 29 Trail
12-month trend
11%
Direction and magnitude, not judgment
vs. category average
— %
No category comparison available
Price over time - 2020 Haro Double Peak 29 Trail
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Double model years
2020 Double Peak 29 Trail lineup
Overview
About this bike
2020 Haro Double Peak 29 Trail value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Frame
- Aluminum / Haro Double Peak 29.0" X6 series alloy, w/ Internal housing routing & chainstay disc brake mount
- Suspension
- Hardtail
- Fork
- Suntour XCT / SR Suntour XCT-30 29x100mm travel w/ hydraulic lockoutSpring Type:Coil
- Headset
- 1-1/8" Threadless for 50mm OD headtube w/ 15mm top cover
Drivetrain
- Drivetrain
- 2 × 9
- Groupset
- Altus
- Bottom Bracket
- Shimano Sealed cartridge

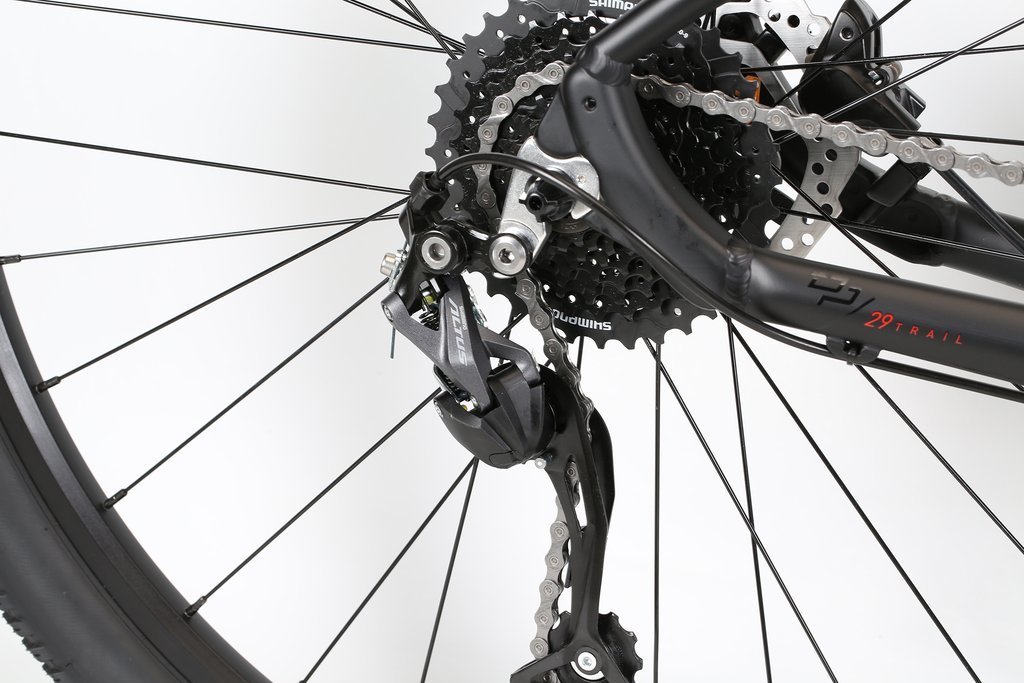

- Rear Derailleur
- New Altus M2000 9-spd, Shadow design
- Front Derailleur
- New Shimano Altus, FD-M2020, 2x9-spd, Top Swing
- Crank
- New Shimano MT-101, 36/22T, 2x9-Spd
- Shifters
- New Shimano SL-M2010-2L, 2x9-spd
- Cassette
- Shimano HG-200 9-spd 11-36T
- Chain
- KMC Z9 9-spd
Brakes
- Brakes
- Shimano Hydraulic Disc / Shimano BR-MT200 hydraulic, 160mm Center Lock RotorsType:Shimano Hydraulic Disc
- Brake Levers
- Shimano BL-MT200
Cockpit
- Stem
- Pivit forged stem
- Handlebar
- Pivit alloy 15mm riser bar 31.8mm
- Saddle
- New Haro Double Peak
- Seatpost
- Pivit alloy micro adjust 31.6mmType:Rigid
Wheels & Tires
- Wheels
- 29″ Aluminum
- Rims
- XD-180 alloy double wall 29"
- Front Hub
- Shimano TX-505 alloy, Center Lock Disc, cassette 32h
- Rear Hub
- Shimano TX-505 alloy, Center Lock Disc, cassette 32h
- Tires
- H-5129 29*2.2"
Pedals
- Pedals
- FPD Nylon body, Chromoly axles,Platform
Weight & Sizing
- Weight
- 32.0 lbs
Frame sizing
SMManufacturer sizing
MDManufacturer sizing
LGManufacturer sizing
XLManufacturer sizing
LG highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- 638
- Reach
- 419
- Top Tube Length
- 620
- Seat Tube Length
- 508
- Chainstay Length
- 456
- Wheelbase
- 1,128
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
Inspection
Suspension service
Confirm fork lowers and rear shock service intervals; ask for the most recent service receipts.
Inspection
Frame pivots & bearings
Cycle the suspension off the bike to feel for play, grit, or noise in pivot bearings.
