Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
KHS

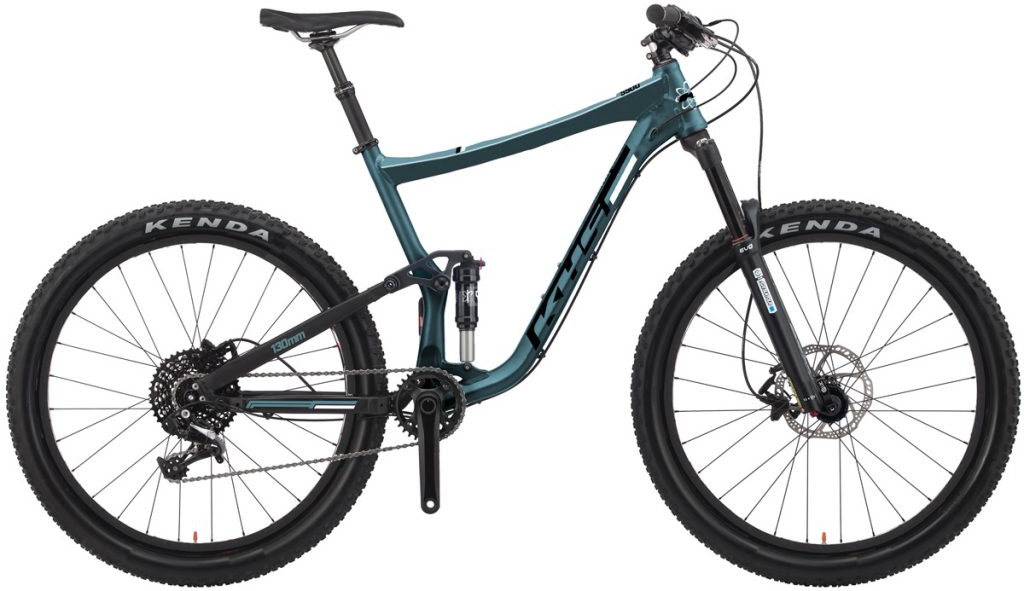

2022 KHS KHS 5500
Value Guide market data · 2022 KHS KHS 5500
12-month trend
7%
Direction and magnitude, not judgment
vs. category average
— %
No category comparison available
Price over time - 2022 KHS KHS 5500
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All 5500 model years
2022 KHS 5500 lineup
Overview
About this bike
2022 KHS KHS 5500 value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Rear Shock
- X-Fusion 02 Pro RL, Air, Ext Rebound, Lock-Out
- Fork
- SR XCR34 Boost, LOR Air, S:27.5, M-XL:29”, 140mm, 34mm Stanchions, Aluminum Steerer, Magnesium Lowers, Hydraulic Damp, External rebound, Lock-Out, 1.5 Taper, 15QR x 110mm
- Frame
- 4-Bar Horst Link 29/650B+ 130mm, 6061 Aluminum w/Custom Formed Double Butted T/T & D/T, 1.5 Taper, 12 x 148 Rear Axle, w/Replaceable Derailleur Hanger, Internal Cable
Drivetrain
- Groupset
- 2022 KHS KHS 5500
- Crankset
- SR Zeron, 2-pc, Boost, 30T Zig/Zag, S:170, M-XL:175
- Bottom Bracket
- SR Outboard Cartridge Bearing
- Chain
- Shimano CN-M6100
- Rear Derailleur
- Shimano Deore, RD-M6100
- Shifters
- Shimano Deore, SL-M6100, 12s, Trigger, Right Only
- Cassette/Freewheel
- Shimano CS-M6100, 10-51T, 12-Speed
Brakes
- Brake Levers
- Shimano MT200
- Brakes
- Shimano MT200 Hydraulic Disc, 180/160mm Rotors Wave 12
Cockpit
- Seatpost
- Kind Shock Exa-Form KSP-900-i, Integra w/Remote, Travel Adjust, 31.6mm
- Saddle
- WTB Volt Medium SL
- Handlebar
- Aluminum 35mm Riser, 780 x 15mm
- Headset
- FSA Orbit 1.5E, Zero Stack, 1-1/8”~1.5
- Stem
- 35mm Aluminum 3D Forged, Threadless 4-bolt
- Tape/Grips
- Q2 Lock-on
Wheels & Tires
- Hubs
- Front: Formula Sealed Bearing Aluminum Disc, 15mm, 110mm Boost <br> Rear: Formula Sealed Bearing Aluminum Disc, Cassette, 12 x 148mm Boost
- Rims
- WTB ST=S:i35, M-XL:i29 TCS, Disc, Double Wall, 32H, Tubeless-Ready
- Rear Tire
- Kenda Regolith Pro, S:27.5 x 2.6”, M-XL:29 x 2.4”, 120TPI, Folding, Tubeless-Ready
- Spokes
- 14G Stainless Black w/Aluminum Nipples, 32x32
- Front Tire
- Kenda Regolith Pro, S:27.5 x 2.6”, M-XL:29 x 2.4”, 120TPI, Folding, Tubeless-Ready
Pedals
- Pedals
- Sold separately
Accessories
- Color
- Dark Teal
Weight & Sizing
- Size
- Small / Medium / Large / X-Large
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
Inspection
Suspension service
Confirm fork lowers and rear shock service intervals; ask for the most recent service receipts.
Inspection
Frame pivots & bearings
Cycle the suspension off the bike to feel for play, grit, or noise in pivot bearings.
