Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
KHS

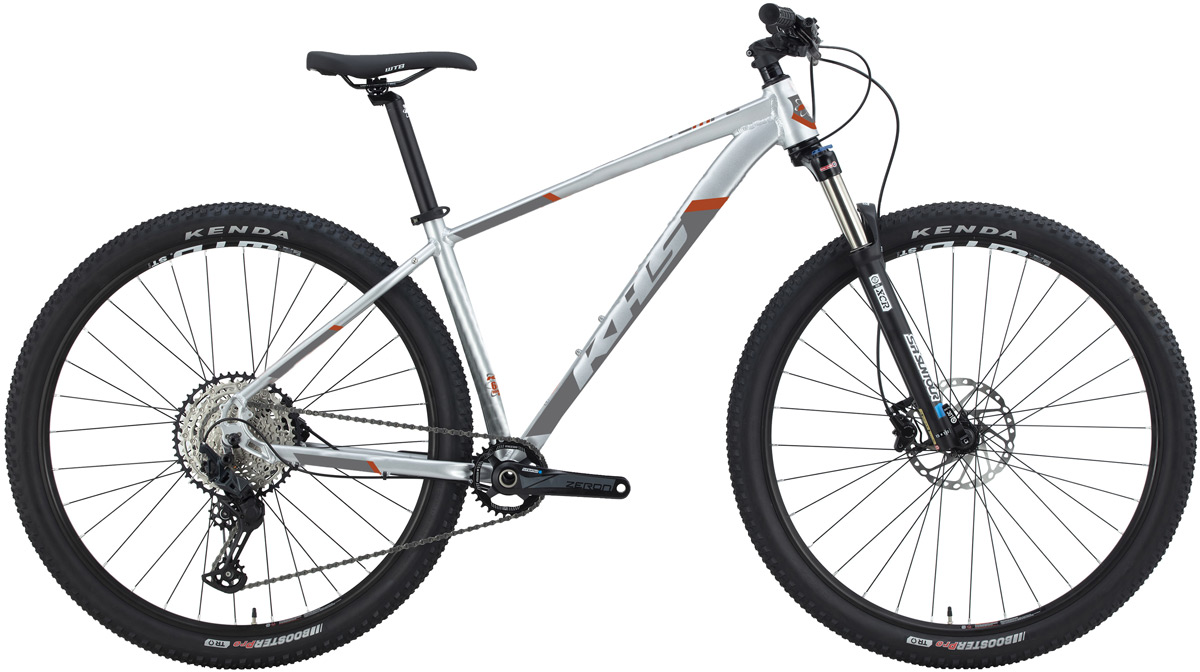

2022 KHS Tempe
Value Guide market data · 2022 KHS Tempe
12-month trend
16%
Direction and magnitude, not judgment
vs. category average
— %
No category comparison available
Price over time - 2022 KHS Tempe
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Tempe model years
2022$1,534 - $1,781Currently viewing
2021$1,348 - $1,565▼ 12% vs. 2022
2020$1,227 - $1,425▼ 20% vs. 2022
2019$1,115 - $1,295▼ 27% vs. 2022
2018$1,143 - $1,327▼ 25% vs. 2022
2017$1,059 - $1,230▼ 31% vs. 2022
2016$1,069 - $1,241▼ 30% vs. 2022
2015$1,069 - $1,241▼ 30% vs. 2022
2014$1,022 - $1,187▼ 33% vs. 2022
2013$966 - $1,122▼ 37% vs. 2022
2012$957 - $1,111▼ 38% vs. 20222022 Tempe lineup
Overview
About this bike
2022 KHS Tempe value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Fork
- SR Raidon 32-LOR, 29 Std/27.5 Plus, 100mm Air, Hydraulic Speed Lock-Out w/Ext. Rebound Dampening Adj, 1-1/8~ 1.5 Aluminum Taper, 15QR x 110 Boost
- Frame
- 6061 Aluminum Double Butted w/Custom Formed T/T & D/T, 1.5 Taper, 141mm Boost, w/Replaceable Derailleur Hanger, 27.5 Plus Compatible, Internal Cables
Drivetrain
- Groupset
- 2022 KHS Tempe
- Crankset
- SR Zeron, 2-pc, Boost, 32T Zig Zag, S:170, M-XL: 175, Ladies: 170
- Bottom Bracket
- Outboard Cartridge Bearing
- Chain
- Shimano CN-M6100
- Rear Derailleur
- Shimano SLX, RD-M7100
- Shifters
- Shimano New Deore, SL-M6100, 12s, Trigger, Right Only, I-Spec EV
- Cassette/Freewheel
- Shimano Deore CS-M6100, 10-51T, 12-Speed
Brakes
- Brake Levers
- Shimano M4100, I-Spec EV
- Brakes
- Shimano MT410 Hydraulic Disc, 180/160mm Rotors, RT54 CenterLock
Cockpit
- Seatpost
- KHS Aluminum Micro-Adjust 31.6mm
- Saddle
- WTB Volt Med; Ladies: KHS Ladies Design
- Handlebar
- FSA Comet Low Riser, 31.8, 720x15mm
- Headset
- FSA Orbit 1.5E, Zero Stack, 1 1/8”~1.5
- Stem
- FSA V-Drive, 3D Forged, 4-bolt, 6 Degree, 31.8, S:60mm, M:70mm, L:80mm, XL:90mm
- Tape/Grips
- Q2 Lock-on
Wheels & Tires
- Hubs
- Front: Shimano HB-MT410, Center Lock Disc, 15mm x 110mm, Boost <br> Rear: Shimano FH-MT401-B, Center Lock Disc, QR, Cassette, Boost
- Rims
- WTB ST S:i25, M-XL: i25:29”, TCS, Disc, Double Wall, 32H, Tubeless-Ready
- Rear Tire
- S: Kenda Booster Pro, 27.5x2.6, 120TPI Folding, Tubeless-Ready <br> M-XL: Booster Pro, 29x2.2, 120TPI Folding, Tubeless-Ready
- Spokes
- 14g Stainless Black w/Aluminum Nipples, 32x32
- Front Tire
- S: Kenda Booster Pro, 27.5x2.6, 120TPI Folding, Tubeless-Ready <br> M-XL: Booster Pro, 29x2.2, 120TPI Folding, Tubeless-Ready
Accessories
- Color
- Shimmering Black / Silver
Weight & Sizing
- Size
- Small / Medium / Large / X-Large
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
Inspection
Suspension service
Confirm fork lowers and rear shock service intervals; ask for the most recent service receipts.
Inspection
Frame pivots & bearings
Cycle the suspension off the bike to feel for play, grit, or noise in pivot bearings.
