Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Marin

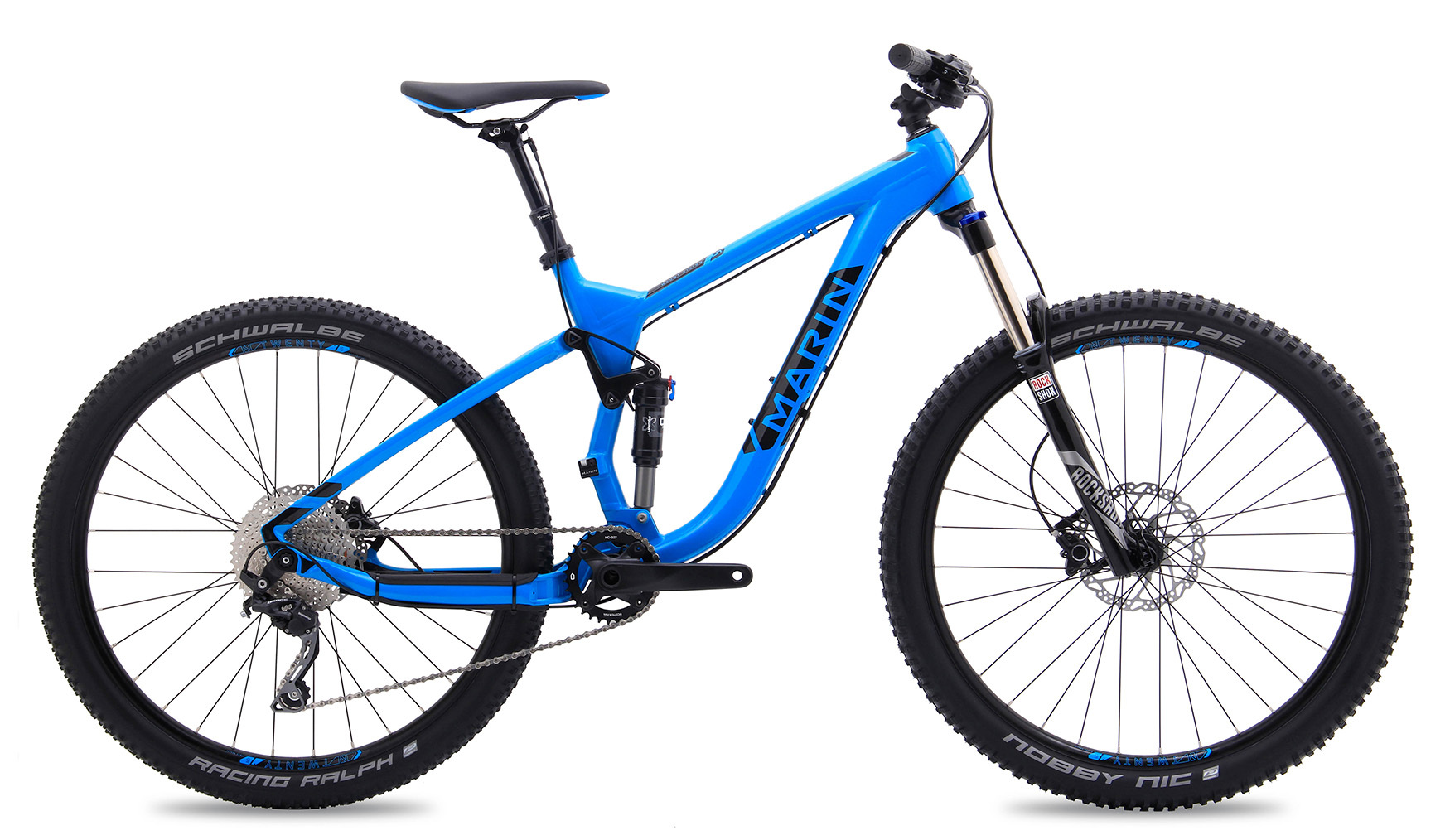

2017 Marin Mount Vision 5
Value Guide market data · 2017 Marin Mount Vision 5
12-month trend
11%
Direction and magnitude, not judgment
vs. category average
8%
Holds value better than category avg
Price over time - 2017 Marin Mount Vision 5
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Mount model years
2021$6,230 - $7,235▲ 8% vs. 2017
2017$5,766 - $6,696Currently viewing
2016$8,696 - $10,098▲ 51% vs. 2017
2015$6,324 - $7,344▲ 10% vs. 2017
2014$7,254 - $8,424▲ 26% vs. 2017
2013$4,929 - $5,724▼ 15% vs. 2017
2012$3,720 - $4,320▼ 35% vs. 2017
2011$3,255 - $3,780▼ 44% vs. 2017
2010$5,859 - $6,804▲ 2% vs. 2017
2009$5,859 - $6,804▲ 2% vs. 2017
2008$4,371 - $5,076▼ 24% vs. 2017
2007$4,371 - $5,076▼ 24% vs. 20172006$3,720 - $4,320▼ 35% vs. 2017
2002$2,883 - $3,348▼ 50% vs. 2017
2001$3,395 - $3,942▼ 41% vs. 2017
2000$3,244 - $3,767▼ 44% vs. 2017
1999$3,036 - $3,525▼ 47% vs. 2017
1998$2,696 - $3,131▼ 53% vs. 20171997$1,673 - $1,943▼ 71% vs. 20172017 Mount Vision 5 lineup
Overview
About this bike
2017 Marin Mount Vision 5 value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Rear Suspension:
- X-Fusion O2 PRO R, 200x57mm, Rebound Adjustment
- Front Fork:
- RockShox Sektor Silver RL 27.5”, 140mm Travel, Compression and Rebound Adjustment, Solo Air
- Fork
- RockShox Sektor Gold RL 27.5”, 140mm Travel, Compression and Rebound Adjustment, Solo Air Spring, Maxle Lite, 42mm Offset
- Frame
- Series 4 6061 Aluminum Frame, 27.5” Wheels, 140mm Travel IsoTrac Suspension Platform, Chainstay Mounted Post Mount Disc Brake
- Rear Shock
- X-Fusion O2 PRO RL, 200x57mm, Rebound Adjustment, Two Stage Compression Adjustment, Lockout
Drivetrain
- Groupset
- Shimano Alivio
- Crankset:
- Marin Forged Alloy 1x10, Hollow Spindle, Steel Narrow-Wide 32T Chainring, 76mm BCD
- Cassette:
- Sunrace 10-Speed, 11-42T
- Bottom Bracket:
- External Sealed Cartridge Bearings
- Chain:
- KMC X10
- Derailleur Rear:
- Shimano Deore Shadow Plus SGS
- Shift Lever:
- Shimano Deore 1x10-Speed
- Derailleur Front:
- Marin Bear Claw Bottle Opener
- Bottom Bracket
- External Sealed Cartridge Bearings
- Cassette
- Sunrace 10-Speed, 11-42T
- Chain
- KMC X10
- Chainrings
- Steel Narrow-Wide 32T Chainring, 76mm BCD
- Crankset
- Marin Forged Alloy 1x10, Hollow Spindle,
- Front Derailleur
- Marin Bear Claw Bottle Opener
- Rear Derailleur
- Shimano Deore Shadow Plus SGS
- Shifters
- Shimano Deore 1x10-Speed
Brakes
- Brake Levers:
- Shimano BL-M315 Hydraulic
- Brake Levers
- Shimano BL-M315 Hydraulic
- Brakes
- Shimano BR-M315 Hydraulic Disc, 180mm Rotors
Cockpit
- Handlebar:
- Marin Mini-Riser, 6061 Double Butted Aluminum, 15mm rise, 780mm width, 4º up, 9º back
- Grips:
- Marin Dual Density
- Stem:
- Marin 3D Forged Alloy
- Headset:
- FSA Orbit, Sealed Cartridge Bearings, 1 1/8
- Seatpost:
- Trans-X Dropper Post
- Saddle:
- Marin Speed Concept
- Grips
- Marin Dual Density
- Handlebar
- Marin Mini-Riser, 6061 Double Butted Aluminum, 15mm rise, 780mm width, 4º up, 9º back
- Headset
- FSA Orbit, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
- Saddle
- Marin Speed Concept
- Seatpost
- Trans-X Dropper Post, 30.9mm
- Stem
- Marin 3D Forged Alloy
Wheels & Tires
- Tires:
- F: Schwalbe Nobby Nic Performance 27.5
- Hub Rear:
- Formula, 142x12mm, Quad Sealed Bearings, Centerlock Disc, 32H
- Hub Front:
- Formula, 100x15mm, Centerlock Disc, 32H
- Rim:
- Marin Aluminum Double Wall, 27mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
- Axles
- Front: 100 x 15mm Thru Axle; Rear: 142 x 12mm Thru Axle
- Hubs
- Formula, Centerlock Disc, 32H
- Tires
- Front: Schwalbe Nobby Nic Performance 27.5"x2.35" Rear: Schwalbe Racing Ralph Performance 27.5”x2.25", Folding Bead
- Wheel Set
- Marin Aluminum Double Wall, 27mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
Accessories
- Brakes Front:
- Shimano BR-M315 Hydraulic Disc, 180mm Rotor
- Brakes Rear:
- Shimano BR-M315 Hydraulic Disc, 180mm Rotor
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
Inspection
Suspension service
Confirm fork lowers and rear shock service intervals; ask for the most recent service receipts.
Inspection
Frame pivots & bearings
Cycle the suspension off the bike to feel for play, grit, or noise in pivot bearings.
