Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Marin

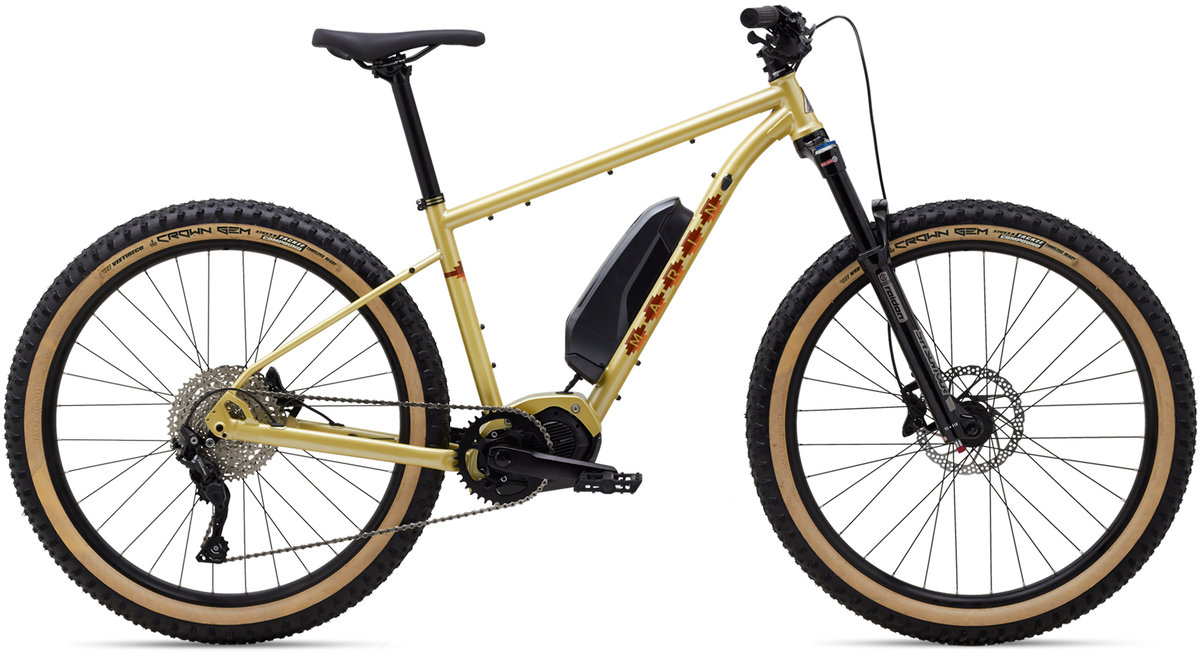

2022 Marin Pine Mountain E1
Previous used estimate
$1,446 - $1,487
Actual value depends on condition, size, and local demand.
Value Guide market data · 2022 Marin Pine Mountain E1
12-month projected trend
12%
Direction and magnitude, not judgment
vs. category average
6%
Drops faster than category avg
Price over time - 2022 Marin Pine Mountain E1
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Pine model years
2022$1,446 - $1,487Currently viewing
2019$327 - $336▼ 77% vs. 20222018$297 - $306▼ 79% vs. 2022
2017$276 - $284▼ 81% vs. 2022
2012$307 - $316▼ 79% vs. 2022
2011$263 - $271▼ 82% vs. 2022
2010$390 - $401▼ 73% vs. 2022
2009$308 - $317▼ 79% vs. 2022
2008$353 - $363▼ 76% vs. 20222006$219 - $225▼ 85% vs. 2022
2001$229 - $235▼ 84% vs. 20221996$190 - $195▼ 87% vs. 20221995$149 - $153▼ 90% vs. 20221994$305 - $313▼ 79% vs. 20221993$310 - $319▼ 79% vs. 2022Compare Pine Mountain E1 models
1 modelsChoose a different build or frame style to see its value.
Overview
About this bike
The Pine Mountain Electric enables adventures that you never believed were possible on two wheels. Powerful Shimano STEPS electric drive units are paired with adventure-seeking CrMo Steel frames with burly 120mm-travel suspension forks and 27.5+ tires, yielding bikes that can climb like billy goats and handle with chutzpah, even while weighed down with gear and supplies. Take it out for some hours of great trail fun, or load it up and head out for an overnight at your favorite nearby peak, the Pine Mountain Electric is ready to be your next adventure travel buddy. Shimano STEPS electric assist Shimano’s STEPS system is neatly integrated into the frame, with a lockable and removable battery pack that fully charges in five hours from a standard wall outlet. Front Suspension Pine Mountain E models are spec’d with stout, 120mm travel forks and front and rear thru axles for maximum control and stiffness on the trail. 27.5+ Wheels Large volume 27.5+ tires roll fast with roughly the same outside diameter as a 29" tire but with extra tire width and air volume for traction on almost any surface. - Series 3 Double Butted & Heat Treated CrMo frame - SR Suntour Raidon Boost 120mm fork - Shimano Deore 10-speed drivetrain - Shimano MT420 hydraulic disc brakes - Marin tubeless rims w/Vee Tire Crown Gem 27.5x2.8" tires
Specifications
- Subtype
- Cross Country
- Category
- Mountain
- Component Fork
- SR Suntour Raidon Boost, 120mm Travel, Air Spring w/ Adjustable Damping, Thru-Bolt, 44mm Offset
- Component Hubs
- Forged Alloy, Center Lock Disc, 32H
- Component Size
- Small, Medium, Large, X-Large
- Component Stem
- Marin 3D Forged Alloy, 35mm
- Product Family
- Pine
- Component Axles
- Front: 15 x 110mm Boost thru-axle Rear: 12 x 148mm Boost thru-axle
- Component Chain
- KMC X10E
- Component Color
- Gloss Gold/Orange
- Component Frame
- Series 3 Double Butted & Heat Treated CrMo, 27.5+ Wheels, Cast Motor Mount, Custom Cast Boost 148x12mm Dropouts, 73mm Threaded BB, Plentiful Gear Mounts
- Component Motor
- Shimano STEPS E7000 System
- Component Brakes
- Shimano MT420, 4-Piston, Hydraulic Disc, 180mm Rotors
- Component Pedals
- Nylon Platform
- Component Saddle
- Marin Pine Mountain Trail
- Component Battery
- Shimano E8010, 418Wh
- Component Headset
- FSA Orbit, NO.42/ACB. C-40-ACB, Sealed Cartridge Bearings, 1 1/8" x 1 1/2"
- Component Cassette
- SunRace 10-Speed, 11-46T
- Component Crankset
- Marin Forged Alloy, Steel Narrow-Wide
- Component Seatpost
- Marin Alloy, 30.9mm
- Component Shifters
- Shimano Deore 1x10-Speed
- Component Handlebar
- Marin Pine Mountain Trail Bar, 50mm Rise, 780 Width, 10° Backsweep, 6° Upsweep
- Component Chainrings
- 38T
- Component Front Tire
- Vee Tire Crown Gem, 27.5x2.8", Synthesis Sidewall, Tubeless Compatible
- Component Tape Grips
- Marin BearPaw Locking
- Component Brake Levers
- Shimano MT400 Hydraulic
- Component Bottom Bracket
- External Sealed Cartridge Bearings
- Component Rear Derailleur
- Shimano Deore Shadow Plus SGS 10-Speed
- Hubs
- Forged Alloy, Center Lock Disc, 32H
- Crankset
- Marin Forged Alloy, Steel Narrow-Wide
- Pedals
- Nylon Platform
- Bottom Bracket
- External Sealed Cartridge Bearings
- Chain
- KMC X10E
- Seatpost
- Marin Alloy, 30.9mm
- Saddle
- Marin Pine Mountain Trail
- Handlebar
- Marin Pine Mountain Trail Bar, 50mm Rise, 780 Width, 10° Backsweep, 6° Upsweep
- Headset
- FSA Orbit, NO.42/ACB. C-40-ACB, Sealed Cartridge Bearings, 1 1/8" x 1 1/2"
- Rear Derailleur
- Shimano Deore Shadow Plus SGS 10-Speed
- Stem
- Marin 3D Forged Alloy, 35mm
- Axles
- Front: 15 x 110mm Boost thru-axle Rear: 12 x 148mm Boost thru-axle
- Brake Levers
- Shimano MT400 Hydraulic
- Brakes
- Shimano MT420, 4-Piston, Hydraulic Disc, 180mm Rotors
- Cassette
- SunRace 10-Speed, 11-46T
- Chainrings
- 38T
- Fork
- SR Suntour Raidon Boost, 120mm Travel, Air Spring w/ Adjustable Damping, Thru-Bolt, 44mm Offset
- Frame
- Series 3 Double Butted & Heat Treated CrMo, 27.5+ Wheels, Cast Motor Mount, Custom Cast Boost 148x12mm Dropouts, 73mm Threaded BB, Plentiful Gear Mounts
- Shifters
- Shimano Deore 1x10-Speed
- Tape/Grips
- Marin BearPaw Locking
- Motor
- Shimano STEPS E7000 System
- Battery
- Shimano E8010, 418Wh
- Color
- Gloss Gold/Orange
- Size
- X-Large
- Front Tire
- Vee Tire Crown Gem, 27.5x2.8", Synthesis Sidewall, Tubeless Compatible
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
Inspection
Suspension service
Confirm fork and rear shock service intervals and check pivot bearings for play.
