Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Raleigh

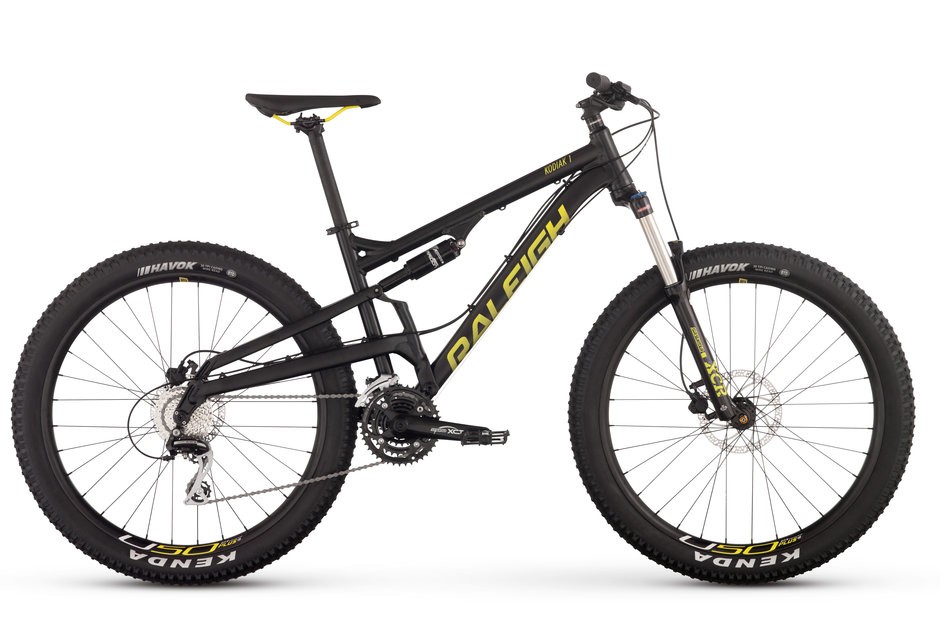

2017 Raleigh Kodiak 1
Value Guide market data · 2017 Raleigh Kodiak 1
12-month trend
12%
Direction and magnitude, not judgment
vs. category average
11%
Drops faster than category avg
Price over time - 2017 Raleigh Kodiak 1
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Kodiak model years
2017 Kodiak 1 lineup
Overview
About this bike
2017 Raleigh Kodiak 1 value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Frame
- AL-6061 Frame w/ 120mm Travel, Raleigh E-Thru and Tapered HT
- Fork
- SR Suntour XCR 32 Coil, 27.5+, 120mm
- Fork Brand & Model
- SR Suntour XCR 32 Coil, 27.5+, 120mm
- Frame Construction
- AL-6061 Frame w/ 120mm Travel, Raleigh E-Thru and Tapered HT
Drivetrain
- Groupset
- Shimano Altus
- Cranks
- SR Suntour XCT 42/32/22t
- Bottom Bracket
- Sealed Cartridge
- Front Derailleur
- Shimano Altus
- Rear Derailleur
- Shimano Acera 8sp
- Chain
- KMC Z7
- Shifter
- Shimano SL-M310
- Chainrings
- 42/32/22
- Crankset
- SR SunTour XCT
- Shifters
- Shimano SL-M310
Brakes
- Brake Levers
- Tektro 2-Finger levers
- Brakes
- Tektro Auriga Hydraulic Disc, 180/160mm rotors
Cockpit
- Handlebar
- Raleigh 200 Series 31.8, 15mm Rise, Width:720/720/740/740mm
- Stem
- Raleigh 3D Forged Alloy, 60mm
- Seatpost
- Alloy Dual Bolt 30.9x350mm
- Seat
- Raleigh Mountain Saddle
- Headset
- FSA NO.42 / ACB
- Grips
- Raleigh Closed-end Single Lock Ring
- Saddle
- Raleigh Mountain Saddle
Wheels & Tires
- Rims
- Weinmann U50, 27.5", 32h
- Tires
- Kenda Havoc, 27.5x2.8"
- Front Hub
- Joytech Alloy 15x110mm thru, 32h
- Rear Hub
- Joytech Alloy 148x12mm thru, 32h
- Spokes
- 14g Stainless Steel, Brass Nipples
- Hubs
- Front: Joytech Alloy 15x110mm thru, 32h; Rear: Joytech Alloy 148x12mm thru, 32h
- Wheel Set
- Weinmann U50, 27.5", 32h
Pedals
- Pedals
- Test Ride Pedals
Weight & Sizing
- *Bike Size
- Choose an Option...
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
Inspection
Suspension service
Confirm fork lowers and rear shock service intervals; ask for the most recent service receipts.
Inspection
Frame pivots & bearings
Cycle the suspension off the bike to feel for play, grit, or noise in pivot bearings.
