Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Tern

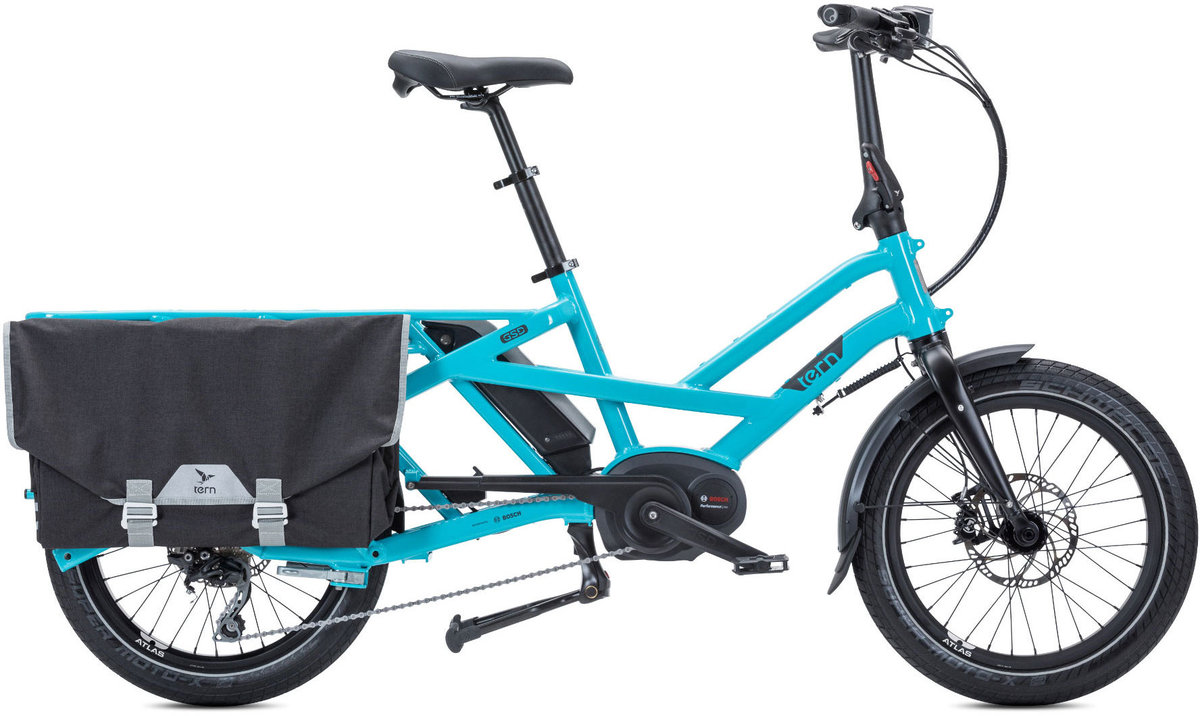

2020 Tern GSD S10
Estimated used market value
$1,685 - $1,733
Actual value depends on condition, size, and local demand.
Value Guide market data · 2020 Tern GSD S10
12-month projected trend
8%
Direction and magnitude, not judgment
vs. category average
— %
No category comparison available
Price over time - 2020 Tern GSD S10
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All GSD model years
Compare GSD S10 models
1 modelsChoose a different build or frame style to see its value.
Overview
About this bike
The GSD is designed to carry two kids, a week’s worth of groceries, or a load of cargo, but it’s only 180cm long—the same length as a standard ebike. With Tern’s best-in-class folding technology, it packs down small enough to fit in a VW Touran or an urban apartment. Plus, it adjusts to fit riders from 150 – 195cm—so mom, dad and the kids can all share it. - Bosch Performance Line motor - Bosch dual-battery system for a range of up to 150 miles - Magura MT5 4-piston hydraulic disc brakes - Custom 62mm Schwalbe Super Moto-X tires with puncture protection - Heavy-duty frame-integrated rack - Boost thru-axle hubs - Wide range of accessories, including the Cargo Hold Panniers - Andros stem for handlebar height and reach adjustments - Fits two Thule Yepp Maxi child seats, or one Thule Yepp Nexxt Maxi seat—no adapters needed
Specifications
- Category
- Other
- Component Fork
- Tern GSD, 1.5" Taper, Boost Thru-axle, 110mm, 7005-AL
- Component Hubs
- Front: Tern Atlas, Boost thru-axle Rear: Tern Atlas, Boost thru-axle, Syntace X-12 standard, ebike reinforced design
- Component Stem
- Tern Andros (G2), adjustable, forged construction, patented technology
- Product Family
- GSD
- Component Axles
- Front: 110 x 15mm Rear: 148 x 12mm
- Component Chain
- 10 spd, DHT for eBike, GST corrosion resistant coating
- Component Frame
- Tern GSD, 7005-Al, patented MultiTruss design
- Component Motor
- Bosch Performance, 36V/250W, max speed 25 kph (EU); max speed 20 mph (US), max torque 63 Nm
- Component Range
- 400Wh: 50-110km (31-68mi), 500Wh: 60-140km (37-87mi), 900Wh: 110-250km (68-155mi)
- Component Brakes
- Magura MT5, 4-piston hydraulic disc, 180mm rotors
- Component Pedals
- Urban with non-slip surface, sealed bearings
- Component Saddle
- Tern GSD, with rear handle
- Component Battery
- Bosch Dual Battery system: 400Wh single / 900Wh dual
- Component Display
- Bosch Purion, 4 mode selectable, walk assist
- Component Headset
- Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
- Component Crankset
- Tern GSD custom, forged 6061-AL DH crankarm
- Component Seatpost
- Tern Telescope, 34.9mm, 2014-AL
- Component Shifters
- Shimano Deore, 1 x 10 spd
- Component Handlebar
- Tern Sweep, 27 degrees, 6061-AL, Tern Andros adapted
- Component Front Tire
- Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
- Component Tape Grips
- Ergon GC10, for swept bar
- Component Brake Levers
- Magura, hydraulic
- Component Bottom Bracket
- Motor integrated
- Component Rear Derailleur
- Shimano Deore Shadow+
- Component Fork Brand Model
- Tern GSD, 1.5" Taper, Boost Thru-axle, 110mm, 7005-AL
- Component Accessories Extras
- Bell, SKS Chainblade, Heavy-duty double stand, Tern Valo Direct front light, Herrmans H-Trace rear light, SplashGuard fenders, frame-integrated rack
- Component Frame Construction
- Tern GSD, 7005-Al, patented MultiTruss design
- Frame Construction
- Tern GSD, 7005-Al, patented MultiTruss design
- Fork Brand & Model
- Tern GSD, 1.5" Taper, Boost Thru-axle, 110mm, 7005-AL
- Hubs
- Front: Tern Atlas, Boost thru-axle Rear: Tern Atlas, Boost thru-axle, Syntace X-12 standard, ebike reinforced design
- Crankset
- Tern GSD custom, forged 6061-AL DH crankarm
- Pedals
- Urban with non-slip surface, sealed bearings
- Bottom Bracket
- Motor integrated
- Chain
- 10 spd, DHT for eBike, GST corrosion resistant coating
- Seatpost
- Tern Telescope, 34.9mm, 2014-AL
- Saddle
- Tern GSD, with rear handle
- Handlebar
- Tern Sweep, 27 degrees, 6061-AL, Tern Andros adapted
- Headset
- Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
- Rear Derailleur
- Shimano Deore Shadow+
- Stem
- Tern Andros (G2), adjustable, forged construction, patented technology
- Accessories & Extras
- Bell, SKS Chainblade, Heavy-duty double stand, Tern Valo Direct front light, Herrmans H-Trace rear light, SplashGuard fenders, frame-integrated rack
- Axles
- Front: 110 x 15mm Rear: 148 x 12mm
- Brake Levers
- Magura, hydraulic
- Brakes
- Magura MT5, 4-piston hydraulic disc, 180mm rotors
- Display
- Bosch Purion, 4 mode selectable, walk assist
- Fork
- Tern GSD, 1.5" Taper, Boost Thru-axle, 110mm, 7005-AL
- Frame
- Tern GSD, 7005-Al, patented MultiTruss design
- Range
- 400Wh: 50-110km (31-68mi), 500Wh: 60-140km (37-87mi), 900Wh: 110-250km (68-155mi)
- Shifters
- Shimano Deore, 1 x 10 spd
- Tape/Grips
- Ergon GC10, for swept bar
- Motor
- Bosch Performance, 36V/250W, max speed 25 kph (EU); max speed 20 mph (US), max torque 63 Nm
- Battery
- Bosch Dual Battery system: 400Wh single / 900Wh dual
- Front Tire
- Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
