Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Bianchi

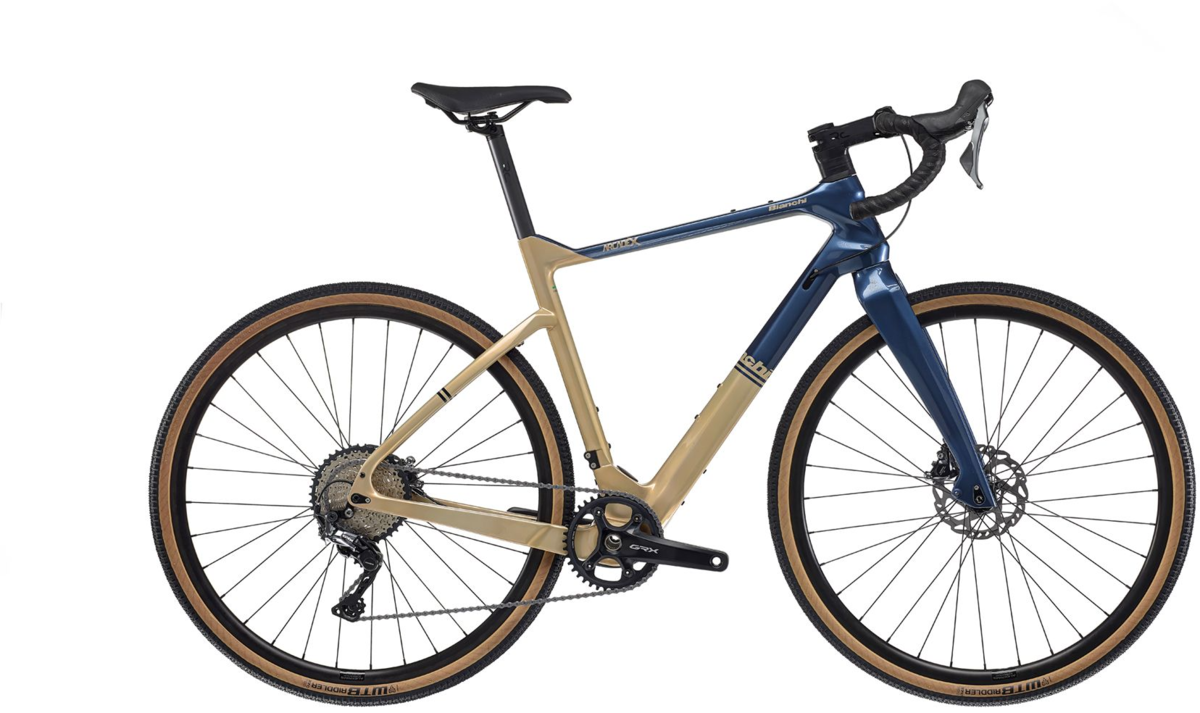

2022 Bianchi Arcadex GRX 810
Value Guide market data · 2022 Bianchi Arcadex GRX 810
12-month trend
9%
Direction and magnitude, not judgment
vs. category average
— %
No category comparison available
Price over time - 2022 Bianchi Arcadex GRX 810
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Arcadex model years
2022 Arcadex GRX 810 lineup
Overview
About this bike
2022 Bianchi Arcadex GRX 810 value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Fork
- Bianchi Full Carbon Disc, 1.5" head, flat mount caliper, thru axle 12x100mm
- Frame
- Arcadex Carbon, 1.5" headset, seatpost diam. 31.6mm, thru axle 12x142mm, flat mount caliper, Pressfit 41 BB, compatible with 42mm tire and mudguard predisposition
Drivetrain
- Groupset
- 2022 Bianchi Arcadex GRX 810
- Crankset
- Shimano GRX 810 FC-RX810-1 40T, Hollowtech II
- Bottom Bracket
- Shimano SM-BB72-41B
- Chain
- Kmc X11-1 EPT finish
- Rear Derailleur
- Shimano RD-RX812, GRX 11sp, top normal shadow plus design, direct attachment, direct mount compatible
- Shifters
- Shimano GRX 810 ST-RX810 1x11sp
- Cassette/Freewheel
- Shimano SLX CS-M7000, 11sp 11-13-15-17-19-21-24-28-32-37-42T
Brakes
- Brake Levers
- Included w/shifters
- Brakes
- Shimano BR-RX810
- Rotors
- Shimano SM-RT70, diam. 160mm
Cockpit
- Seatpost
- Reparto Corse Alloy shaft AL6061, alloy head, 15mm offset, 31,6mm
- Saddle
- Reparto Corse 2315HRN, rail steel black, open, cover PU, lenght/wide 250x148mm
- Handlebar
- Reparto Corse Aluminum 6061, reach 70mm, flare angle 16°
- Headset
- FSA SMR HS with 1.1/8” custom top cone Bianchi, H2475, Internal Headset, Integrated Alloy custom top cup 1.1/8", 1.5", 36°/45° ACB
- Stem
- Reparto Corse by Fsa ST-OS-188/SMR-0°, Alloy 6061 , 1 1/4", rise 0°
- Tape/Grips
- La Spirale Ribbon cork
Wheels & Tires
- Rims
- AlexRims GD24 disc 622-21, tubeless ready
- Rear Tire
- WTB Riddler Comp 700x37
- Front Tire
- WTB Riddler Comp 700x37
Pedals
- Pedals
- Sold separately
Accessories
- Color
- CK16/Blue / GOLD/Blue
Weight & Sizing
- Size
- X-Small / Small / Medium / Large / X-Large
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
Inspection
Carbon inspection
Tap test the frame, fork, seatpost, and bars for cracks; verify no impact damage near dropouts.
Inspection
Brake hoses & cables
Check hydraulic line bleed, cable housing wear, and confirm rotors are within spec.
