Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Diamondback

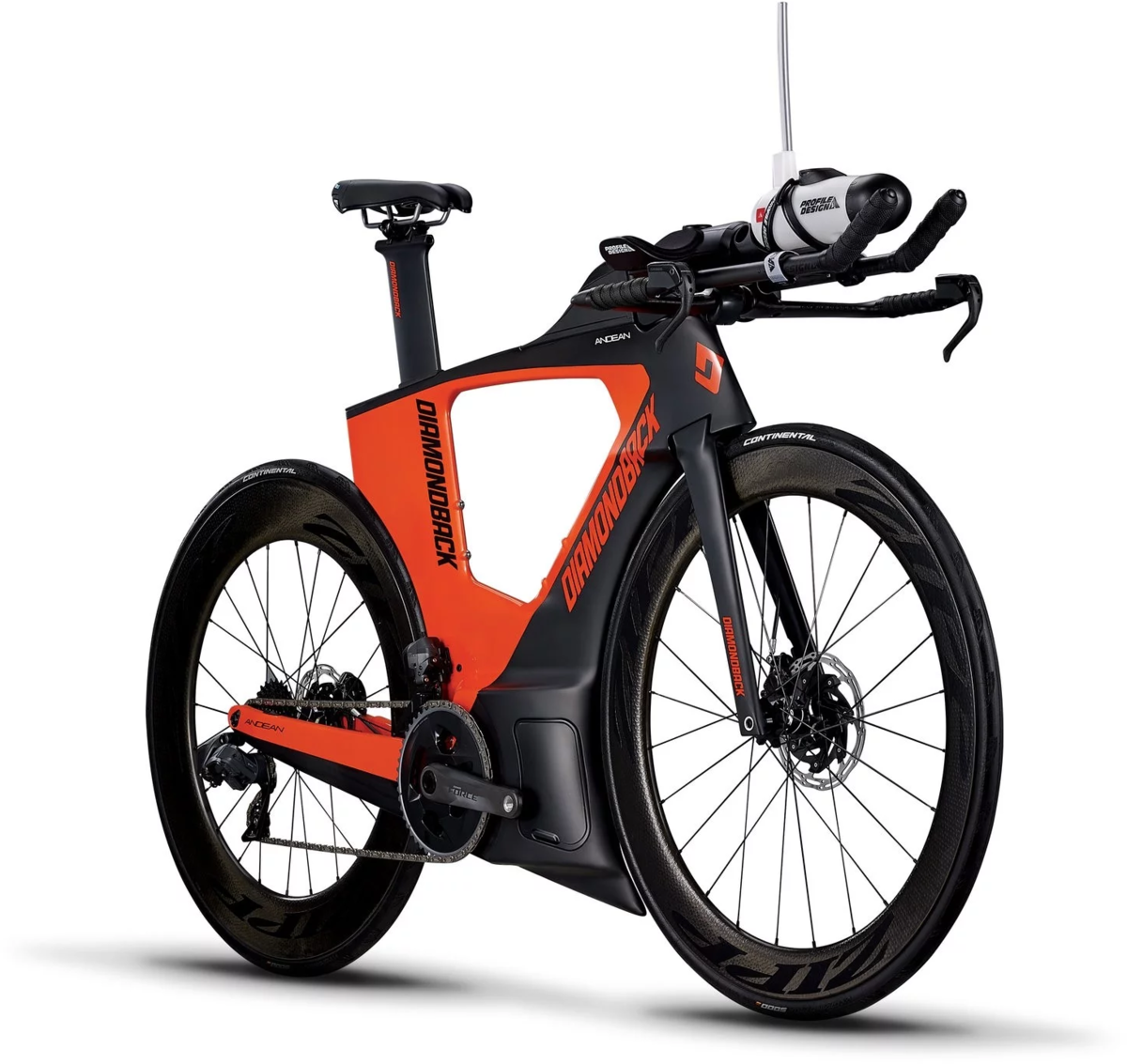

2020 Diamondback Andean 3
Value Guide market data · 2020 Diamondback Andean 3
12-month trend
11%
Direction and magnitude, not judgment
vs. category average
— %
No category comparison available
Price over time - 2020 Diamondback Andean 3
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Andean model years
2020 Andean 3 lineup
Overview
About this bike
2020 Diamondback Andean 3 value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Fork
- Andean Aero Triathlon Fork, Unidirectional Carbon, 1" steer, Continuous Fiber Technology (CFT)
- Frame
- Andean Aero Core Triathlon Frameset, Unidirectional Carbon, 1" Headtube, Press-Fit 30 BB, Di2 ready Internal Cable Routing, Integrated Storage System
Drivetrain
- Groupset
- SRAM Force
- Bottom Bracket
- SRAM PressFit 30 for DUB Spindle
- Cassette
- SRAM XG-1270,10-26T
- Chain
- SRAM Force, 12-speed
- Chainrings
- 48/35T
- Crankset
- SRAM Force Carbon, w/DUB Oversized Alloy Spindle
- Front Derailleur
- SRAM Force eTap AXS, Braze-on
- Rear Derailleur
- SRAM Force eTap AXS, 12 speed
- Shifters
- SRAM eTap Blip Button, w/ Clics Aero Buttons, 2x12 Speed
Brakes
- Brake Levers
- SRAM S-900 Aero HDR Disc
- Brakes
- SRAM S-900 Aero HDR Hydraulic Disc, 160/140mm CLX R Centerline 2-Piece Rotors
Cockpit
- Handlebar
- Profile Design Aeria Ultimate Carbon, 42cm
- Headset
- FSA orbit IS-2A, Integrated 1", Sealed Cartridge Bearing
- Saddle
- ISM PN 3.1, 40-Serise Foam, Noseless Design, Chromoly Rails
- Seatpost
- Diamondback TT Aero Carbon, Ritchey WCS Seat Rail Clamp
- Stem
- DB Alloy TT, w/ Full Custom Internal Cable Routing System
Wheels & Tires
- Axles
- Front: 12 x 100mm thru-axle, Rear: 12 x 142mm thru-axle
- Front Tire
- Continental Grandprix 5000, 700x25c
- Hubs
- Front: Zipp 77D 6-Bolt Disc, 24 hole, Rear: Zipp 177D, 6-Bolt Disc, 24 hole
- Rims
- Zipp 404 Firecrest Carbon Clincher Front / Zipp 808 Firecrest Carbon Clincher Rear
- Spokes
- Sapim CX-Ray, Straight Pull, Double Butted Stainless
Accessories
- Accessories & Extras
- Spare Front and Rear Derailleur Hangers, 2x/10mm Aero Headset Spacer, 2x/15mm Aero Headset Spacer, Torque Wrench, FSA Carbon Installation Compound
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
Inspection
Carbon inspection
Tap test the frame, fork, seatpost, and bars for cracks; verify no impact damage near dropouts.
Inspection
Brake hoses & cables
Check hydraulic line bleed, cable housing wear, and confirm rotors are within spec.
