Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Diamondback
2018 Diamondback Arden 4 Carbon
Value Guide market data · 2018 Diamondback Arden 4 Carbon
12-month trend
7%
Direction and magnitude, not judgment
vs. category average
— %
No category comparison available
Price over time - 2018 Diamondback Arden 4 Carbon
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Arden model years
2018 Arden 4 Carbon lineup
Overview
About this bike
2018 Diamondback Arden 4 Carbon value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Frame
- Carbon / Diamondback Women's Specific Carbon Monocoque Endurance Road Frame, Internal Cable Routing, 142x12mm Carbon Drop Outs, w/Taper Headtube, Di2 Compatible

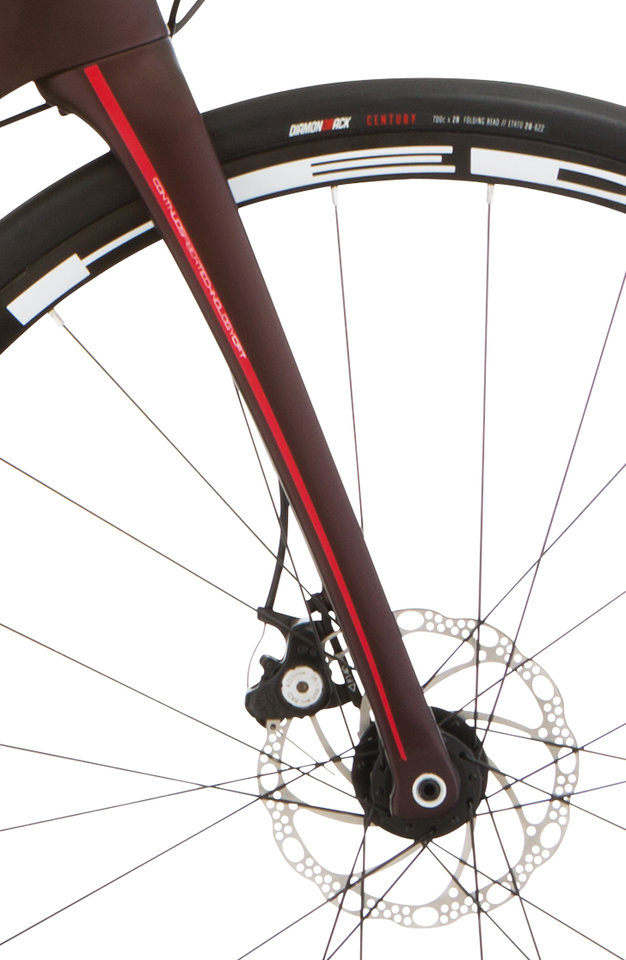

- Fork
- Carbon / DB Road Performance, Full Monocoque Carbon "CFT", 12mm Thru-axle Drop Outs, Flat Mount Disc Tabs, 1.5" Tapered Steerer Tube
- Headset
- FSA No.42, Sealed Cartridge
Drivetrain
- Drivetrain
- 2 × 10
- Groupset
- Tiagra
- Bottom Bracket
- Shimano Outboard Bearing
- Rear Derailleur
- Shimano Tiagra RD-4700, 10 Speed
- Front Derailleur
- Shimano Tiagra FD-4700, 31.8mm Band Clamp
- Crank
- Shimano FC-RS400 Compact, 50/34T
- Shifters
- Shimano Tiagra ST-4700, Dual Control 2x10 Speed
- Cassette
- Shimano HG500 Cassette, 10 Speed, 11-32T
- Chain
- KMC X10, 10 Speed
Brakes
- Brakes
- Hydraulic Disc / Tekro Lyra Flat Mount Disc, w/ 160mm Front / 140mm Rear RotorsType:Hydraulic Disc
- Brake Levers
- Shimano ST-4700
Cockpit
- Stem
- HED Tour Stem, +/-7° Rise, 31.8mm Bar Bore
- Handlebar
- HED Tour Flat Top Drop Bar, 31.8 Bar Bore
- Saddle
- Diamondback Performance Womens Road
- Seatpost
- HED Tour, 27.2mmType:Rigid
- Grips
- Diamondback Endurance Gel Tape
Wheels & Tires
- Wheels
- 700c Carbon
- Rims
- HED Flanders C2+ Disc, 24h
- Spokes
- 14g Stainless Steel
- Front Hub
- 24h Alloy, Sealed Cartridge, 12mm Thru-axle
- Rear Hub
- 24h Alloy, Sealed Cartridge, 142x12mm Thru-axle, Cassette
- Tires
- Diamondback Century Folding Bead, 700x28c
Pedals
- Pedals
- Alloy Road Platform
Weight & Sizing
- Weight
- 19.2 lbs
Frame sizing
WheelsManufacturer sizing
StackManufacturer sizing
ReachManufacturer sizing
Stack/Reach RatioManufacturer sizing
Top Tube LengthManufacturer sizing
Seat Tube LengthManufacturer sizing
Seat Tube AngleManufacturer sizing
Head Tube LengthManufacturer sizing
Head Tube AngleManufacturer sizing
BB DropManufacturer sizing
BB HeightManufacturer sizing
Front CenterManufacturer sizing
Chainstay LengthManufacturer sizing
WheelbaseManufacturer sizing
RakeManufacturer sizing
TrailManufacturer sizing
Standover HeightManufacturer sizing
Stem LengthManufacturer sizing
Crank LengthManufacturer sizing
Handlebar WidthManufacturer sizing
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
Inspection
Carbon inspection
Tap test the frame, fork, seatpost, and bars for cracks; verify no impact damage near dropouts.
Inspection
Brake hoses & cables
Check hydraulic line bleed, cable housing wear, and confirm rotors are within spec.
