Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Diamondback
2018 Diamondback Haanjo 2
Value Guide market data · 2018 Diamondback Haanjo 2
12-month trend
6%
Direction and magnitude, not judgment
vs. category average
— %
No category comparison available
Price over time - 2018 Diamondback Haanjo 2
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Haanjo model years
2018 Haanjo 2 lineup
Overview
About this bike
2018 Diamondback Haanjo 2 value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset

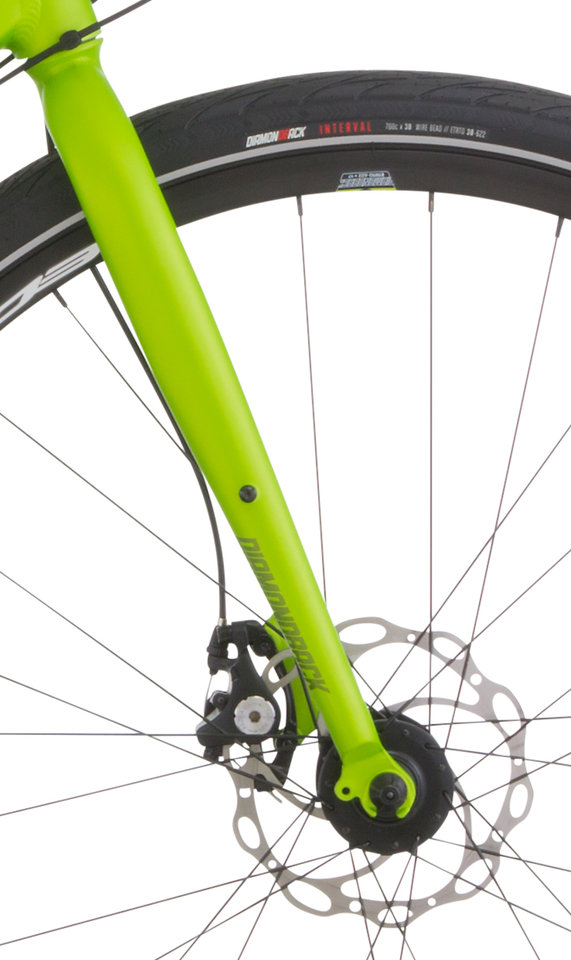

- Fork
- DB Steel Gravel Disc, 1-1/8" Steerer Tube, w/ Fender Mounts/ Low Rider Mounts
- Frame
- DB Alternative Road, Disc Brake, Endurance Geometry, Relaxed Head Tube Angle, Fully Butted 6061-T6 Alloy, Formed Top Tube, 1 1/8" Headtube, Replaceable Hanger
Drivetrain
- Groupset
- 2018 Diamondback Haanjo 2
- Crankset
- Alloy Cross Compact
- Bottom Bracket
- Steel Cartridge
- Chain
- KMC Z82, 8 Speed
- Front Derailleur
- Shimano Claris FD-2400, 31.8mm Band Clamp
- Rear Derailleur
- Shimano Claris RD-2400, 8 Speed
- Cassette/Rear Cogs
- Shimano HG50 Cassette, 8 Speed, 11-32T
- Chainrings
- 46/34T w/ Alloy Big Ring
- Shifters
- Shimano Claris ST-2400 STI, 2x8 Speed
Brakes
- Brake Levers
- Shimano Claris ST-2400
- Brakes
- Tektro Lyra Flat Mount Mechanical Disc, w/ 160mm Front / 140mm Rear Rotors
Cockpit
- Saddle
- DB Eldorado
- Headset
- FSA IS-3/ No.11 Integrated Style
- Stem
- HED Eroica, 6061 Alloy, 3D Forged, +/-7° Rise, 31.8 Bar Bore
- Handlebars
- HED Eroica, 7050 Alloy, 8 Degree Flare, 31.8mm Bar Bore
- Seat Post
- HED Eroica, 6061 Alloy, 27.2mm
- Tape/Grips
- Diamondback EnduranceTape
Wheels & Tires
- Hubs
- Front: 28h Alloy Quick Release<br> Rear: 28h Alloy Quick Release, Cassette
- Tires
- Diamondback Interval Wire Bead, 700x38c, Reflective Sidewall, 60TPI
- Spokes
- 14g Stainless Steel
Pedals
- Pedals
- DB4L Alloy Platform
Accessories
- Rims/Wheels
- Diamondback Equation, 28h, Doublewall
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
Inspection
Carbon inspection
Tap test the frame, fork, seatpost, and bars for cracks; verify no impact damage near dropouts.
Inspection
Brake hoses & cables
Check hydraulic line bleed, cable housing wear, and confirm rotors are within spec.
