Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Diamondback

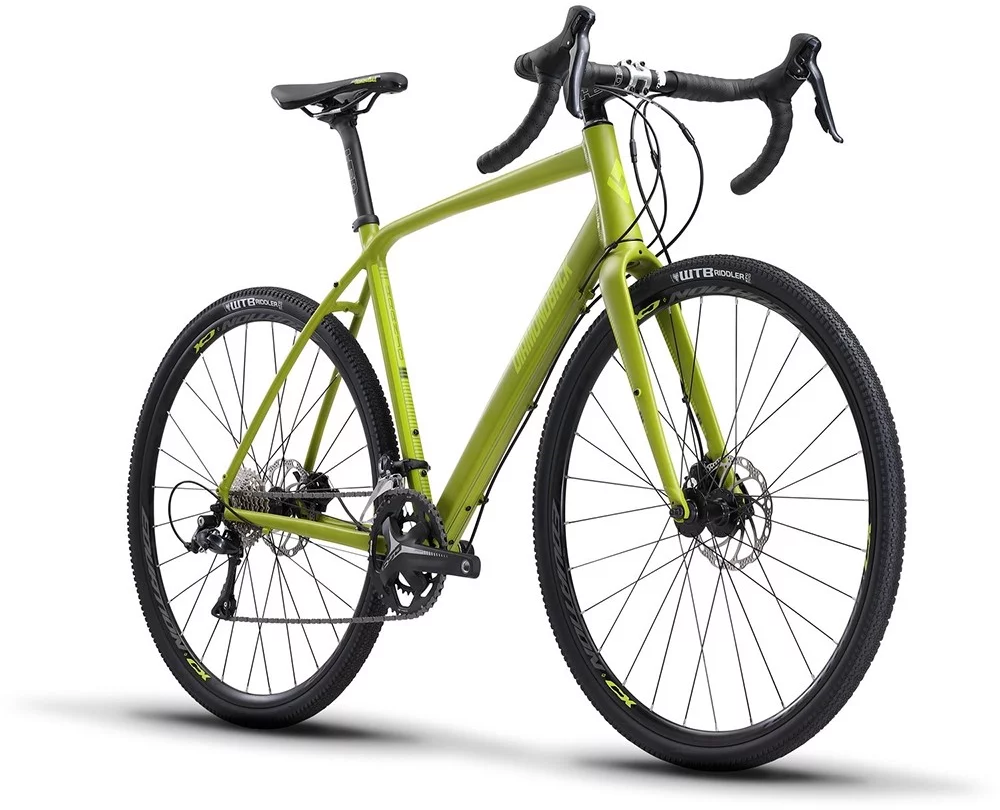

2019 Diamondback Haanjo 3
Previous used estimate
$305 - $314
Actual value depends on condition, size, and local demand.
Value Guide market data · 2019 Diamondback Haanjo 3
12-month projected trend
9%
Direction and magnitude, not judgment
vs. category average
6%
Drops faster than category avg
Price over time - 2019 Diamondback Haanjo 3
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Haanjo model years
Compare Haanjo 3 models
1 modelsChoose a different build or frame style to see its value.
Overview
About this bike
Your next bike shouldn't limit you—it should open up a world of new possibilities. Enter the Haanjo 3, a bike that can handle any kind of road—paved or not—that calls your name. We equipped the Haanjo 3 with a butted and formed aluminum frame that delivers a great balance of comfort and durability. Our Endurance Geometry is also designed to place you in a more comfortable position that's perfect for both long rides and rough roads. The Shimano Sora 2x9-speed drivetrain provides ample gearing for those long hauls, while the Gravel Disc alloy fork keeps the steering pinpoint-precise without adding extra weight to the mix. Where can you ride the Haanjo 3? Wherever you want. There are no limits with this one. - 6061-T6 aluminum alloy frame with Endurance Geometry for worry-free durability and all-day riding comfort - Gravel Disc alloy fork is lightweight and steers precisely - Shimano Sora 2x9 speed drivetrain w/FSA cranks provide reliable shifting performance - Tektro Lyra mechanical disc brakes plus 700x37c WTB Riddler Comp tires equal more control
Specifications
- Subtype
- Gravel
- Category
- Road
- Component Fork
- DB SPF Formed Alloy Gravel Disc w/1.5" Tapered Steerer Tube
- Component Hubs
- 28h Alloy
- Component Size
- 50cm, 53cm, 56cm
- Component Stem
- HED Eroica, 6061 Alloy, 3D Forged, +/-7° Rise, 31.8 Bar Bore
- Product Family
- Haanjo
- Component Axles
- Quick release
- Component Chain
- KMC Z9, 9 Speed
- Component Color
- Olive Green
- Component Frame
- DB Alternative Road, Disc Brake, Endurance Geometry, Relaxed Head Tube Angle, Fully Butted 6061-T6 Alloy, Formed Top Tube, Tapered Headtube, Flat Mount Disc, Replaceable Hanger
- Component Brakes
- Tektro Lyra Flat Mount Mechanical Disc, w/160mm Front / 160mm Rear Rotors
- Component Pedals
- DB Resin Gravel Platform
- Component Saddle
- Diamondback Performance Mens Gravel Road
- Component Headset
- FSA No.42B, Sealed Cartridge
- Component Cassette
- Shimano HG400, 9 Speed Cassette, 11-32T
- Component Crankset
- FSA Omega Adventure
- Component Shifters
- Shimano Sora ST-R3000, 2x9 Speed
- Component Handlebar
- HED Eroica, 7050 Alloy, 12 Degree Flare, 31.8mm Bar Bore
- Component Seat Post
- HED Eroica, 6061 Alloy, 27.2mm
- Component Chainrings
- 46/30T
- Component Front Tire
- WTB Riddler Comp, 700x37c
- Component Tape Grips
- Diamondback Endurance Gel Tape
- Component Brake Levers
- Shimano Sora ST-R3000
- Component Bottom Bracket
- FSA Mega Exo
- Component Rear Derailleur
- Shimano Sora RD-R3000, 9 Speed, GS
- Component Front Derailleur
- Shimano Sora FD-R3000, 31.8 Band Clamp
- Component Accessories Extras
- Tool Kit
- Hubs
- 28h Alloy
- Crankset
- FSA Omega Adventure
- Pedals
- DB Resin Gravel Platform
- Bottom Bracket
- FSA Mega Exo
- Chain
- KMC Z9, 9 Speed
- Saddle
- Diamondback Performance Mens Gravel Road
- Handlebar
- HED Eroica, 7050 Alloy, 12 Degree Flare, 31.8mm Bar Bore
- Headset
- FSA No.42B, Sealed Cartridge
- Front Derailleur
- Shimano Sora FD-R3000, 31.8 Band Clamp
- Rear Derailleur
- Shimano Sora RD-R3000, 9 Speed, GS
- Stem
- HED Eroica, 6061 Alloy, 3D Forged, +/-7° Rise, 31.8 Bar Bore
- Accessories & Extras
- Tool Kit
- Axles
- Quick release
- Brake Levers
- Shimano Sora ST-R3000
- Brakes
- Tektro Lyra Flat Mount Mechanical Disc, w/160mm Front / 160mm Rear Rotors
- Cassette
- Shimano HG400, 9 Speed Cassette, 11-32T
- Chainrings
- 46/30T
- Fork
- DB SPF Formed Alloy Gravel Disc w/1.5" Tapered Steerer Tube
- Frame
- DB Alternative Road, Disc Brake, Endurance Geometry, Relaxed Head Tube Angle, Fully Butted 6061-T6 Alloy, Formed Top Tube, Tapered Headtube, Flat Mount Disc, Replaceable Hanger
- Seat Post
- HED Eroica, 6061 Alloy, 27.2mm
- Shifters
- Shimano Sora ST-R3000, 2x9 Speed
- Tape/Grips
- Diamondback Endurance Gel Tape
- Color
- Olive Green
- Size
- 56cm
- Front Tire
- WTB Riddler Comp, 700x37c
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
