Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Diamondback

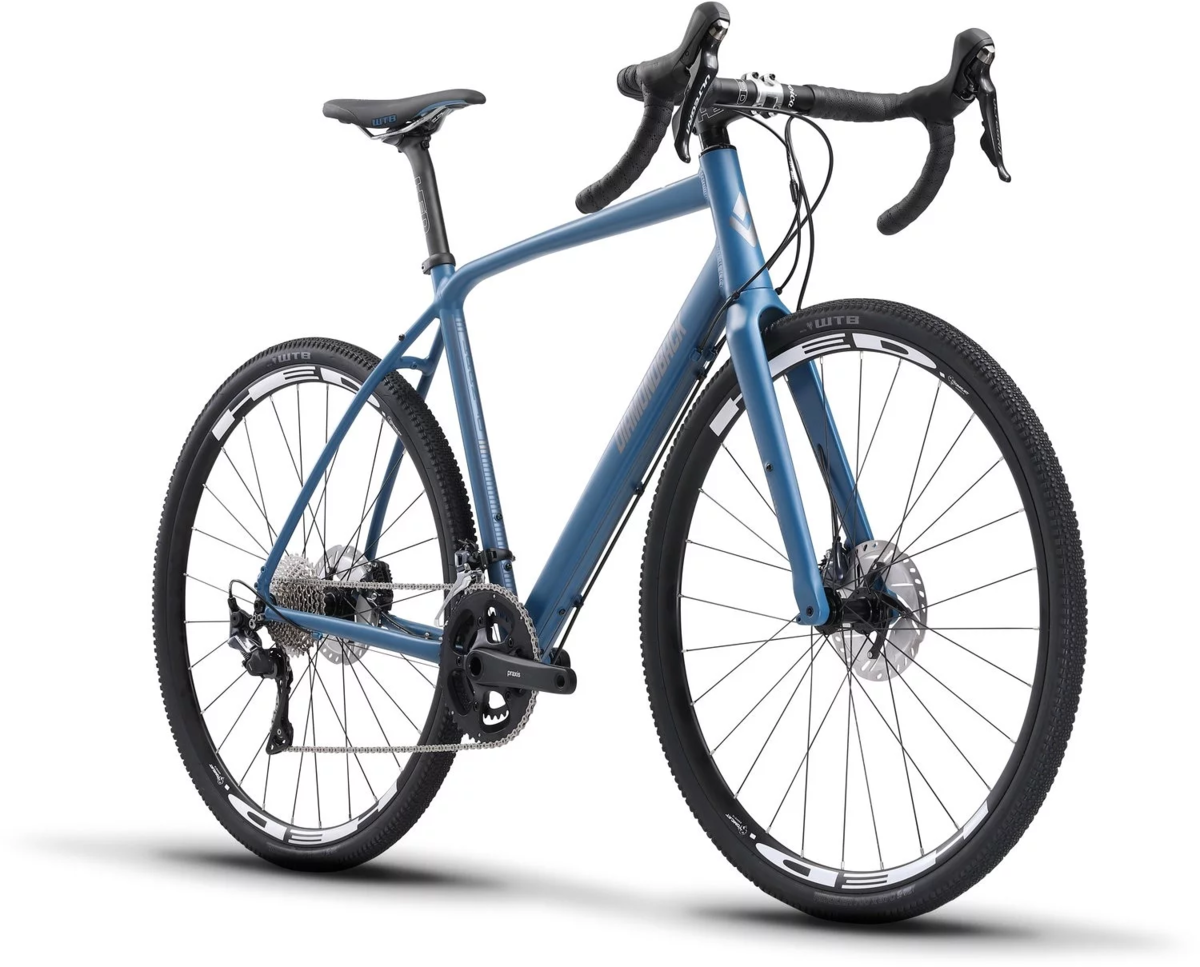

2019 Diamondback Haanjo 4
Value Guide market data · 2019 Diamondback Haanjo 4
12-month trend
11%
Direction and magnitude, not judgment
vs. category average
— %
No category comparison available
Price over time - 2019 Diamondback Haanjo 4
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Haanjo model years
2019 Haanjo 4 lineup
Overview
About this bike
2019 Diamondback Haanjo 4 value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Fork
- DB Gravel Performance, Full Monocoque Carbon, Flat Mount Disc ready, w/Tapered Steerer Tube
- Frame
- DB Alternative Road, Endurance Geometry, Relaxed Head Tube Angle, Fully Butted 6061-T6 Alloy, Formed Top Tube, Tapered Headtube, Flat Mount Disc , Replaceable Hanger
Drivetrain
- Groupset
- Shimano Ultegra
- Bottom Bracket
- Praxxis M30 Sealed
- Cassette
- Shimano 105 CS-7001 Cassette, 11 Speed, 11-34T
- Chain
- KMC X11EL, 11 Speed
- Chainrings
- 48/32T
- Crankset
- Praxis Alba, Direct Mount
- Front Derailleur
- Shimano Ultegra FD-R8000, 31.8mm Band Clamp
- Rear Derailleur
- Shimano Ultegra RX RD-R8000, Shadow Plus, 11 Speed, GS
- Shifters
- Shimano ST-R8020, Dual Control 2x11 Speed
Brakes
- Brake Levers
- Shimano ST-R8020
- Brakes
- Shimano BR-R8070 Flat Mount Hydraulic Disc, w/160mm Front / 160mm Rear Rotors
Cockpit
- Handlebar
- HED Eroica, 7050 Alloy, 12 Degree Flare, 31.8mm Bar Bore
- Headset
- FSA No.42, Sealed Cartridge
- Saddle
- WTB Silverado Race
- Seatpost
- HED Eroica, 6061 Alloy, 27.2mm
- Stem
- HED Eroica, 6061 Alloy, 3D Forged, +/-7° Rise, 31.8 Bar Bore
- Grips
- Diamondback Endurance Gel Tape
Wheels & Tires
- Axles
- Front: 12 x 100mm thru-axle, Rear: 12 x 142mm thru-axle
- Front Tire
- WTB Riddler, Dual DNA Compound, Lightweight Casing Tubeless, 700x37c
- Hubs
- 28h Alloy, Sealed Cartridge, Center Lock
- Spokes
- 2.0/1.8/2.0 Butted Stainless Steel
Accessories
- Accessories & Extras
- Tool Kit, Tubeless Valves
- Wheels/Rims
- HED Tomcat Disc, 28h, 21mm Internal Width, Tubeless Ready
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
Inspection
Carbon inspection
Tap test the frame, fork, seatpost, and bars for cracks; verify no impact damage near dropouts.
Inspection
Brake hoses & cables
Check hydraulic line bleed, cable housing wear, and confirm rotors are within spec.
