Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Giant

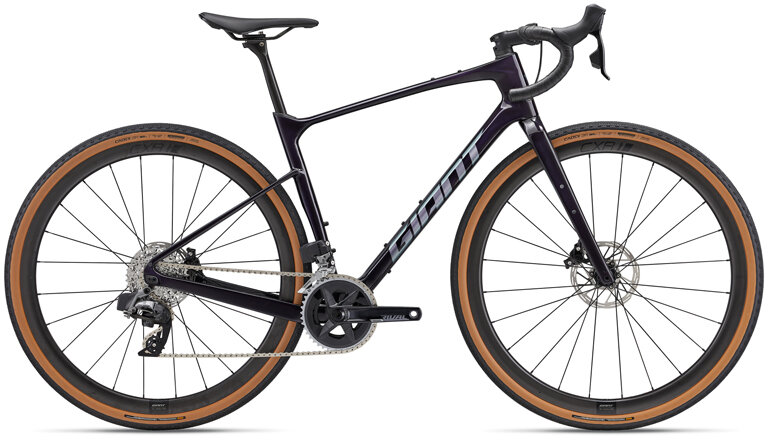

2023 Giant Revolt Advanced Pro 1
Value Guide market data · 2023 Giant Revolt Advanced Pro 1
12-month trend
9%
Direction and magnitude, not judgment
vs. category average
— %
No category comparison available
Price over time - 2023 Giant Revolt Advanced Pro 1
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Revolt model years
2026$3,813 - $4,428▼ 40% vs. 2023
2025$6,510 - $7,560▲ 3% vs. 2023
2024$6,975 - $8,100▲ 10% vs. 2023
2023$6,324 - $7,344Currently viewing
2022$5,952 - $6,912▼ 6% vs. 2023
2021$5,766 - $6,696▼ 9% vs. 2023
2020$5,115 - $5,940▼ 19% vs. 2023
2019$3,222 - $3,742▼ 49% vs. 2023
2016$1,209 - $1,404▼ 81% vs. 2023
2015$2,581 - $2,997▼ 59% vs. 2023
2014$2,976 - $3,456▼ 53% vs. 20232023 Revolt Advanced Pro 1 lineup
Overview
About this bike
2023 Giant Revolt Advanced Pro 1 value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Fork
- Advanced SL-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
- Frame
- Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout
Drivetrain
- Groupset
- 2023 Giant Revolt Advanced Pro 1
- Crankset
- SRAM Rival D1 DUB, 30/43 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
- Bottom Bracket
- SRAM DUB, press fit
- Chain
- SRAM Rival D1
- Front Derailleur
- SRAM Rival eTap AXS
- Rear Derailleur
- SRAM Rival eTap AXS
- Shifters
- SRAM Rival eTap AXS, 2x12
- Cassette/Freewheel
- SRAM Rival, 12-speed, 10x36
Brakes
- Brake Levers
- SRAM Rival eTap AXS hydraulic
- Brakes
- SRAM Rival eTap AXS hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm
Cockpit
- Seatpost
- Giant D-Fuse SLR, composite, -5/+15mm offset
- Saddle
- Giant Approach SL
- Handlebar
- Giant Contact SLR XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
- Stem
- Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
- Tape/Grips
- Stratus Lite 3.0
Wheels & Tires
- Hubs
- [F] Giant AR alloy, CenterLock, 12mm thru-axle, [R] Giant AR alloy, DT350 36t ratchet system, CenterLock, 12mm thru-axle
- Rims
- Giant CXR 1 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm
- Rear Tire
- CADEX AR, 700x40c, tubeless
- Spokes
- Sapim CX-Ray
- Front Tire
- CADEX AR, 700x40c, tubeless
Pedals
- Pedals
- Sold separately
Accessories
- Accessories & Extras
- tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position
- Color
- Black Currant
Weight & Sizing
- Size
- X-Small / Small / Medium / Medium/Large / Large / X-Large
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
Inspection
Carbon inspection
Tap test the frame, fork, seatpost, and bars for cracks; verify no impact damage near dropouts.
Inspection
Brake hoses & cables
Check hydraulic line bleed, cable housing wear, and confirm rotors are within spec.
