Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Marin

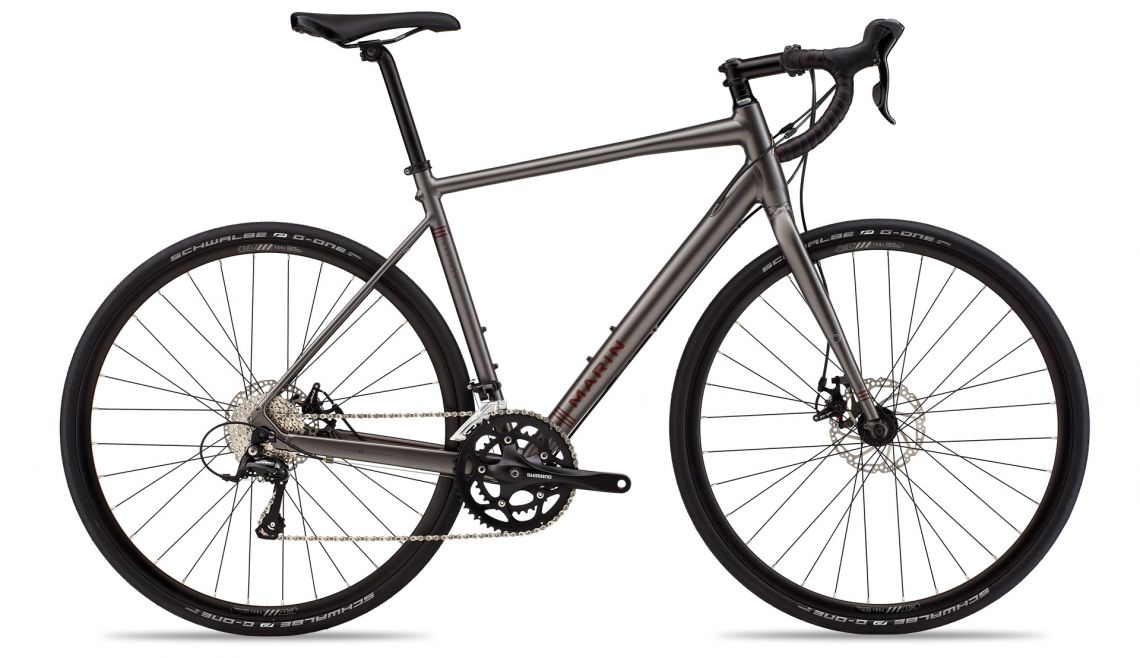

2016 Marin Gestalt 1
Value Guide market data · 2016 Marin Gestalt 1
12-month trend
21%
Direction and magnitude, not judgment
vs. category average
15%
Drops faster than category avg
Price over time - 2016 Marin Gestalt 1
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Gestalt model years
2016 Gestalt 1 lineup
Overview
About this bike
2016 Marin Gestalt 1 value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Front Fork:
- 6061 Aluminum, Straight-Blade, Post-Mount Disc
- Fork
- 6061 Aluminum, Straight-Blade, Post-Mount Disc
- Fork Brand & Model
- 6061 Aluminum, Straight-Blade, Post-Mount Disc
- Frame
- Series 3 6061 Aluminum
- Frame Construction
- Series 3 6061 Aluminum
Drivetrain
- Groupset
- Shimano Sora
- Crankset:
- Shimano M345 Compact, 50/34T
- Cassette:
- Sunrace 9-Speed, 11-32T
- Bottom Bracket:
- Shimano Octalink V2 Cartridge
- Chain:
- KMC X9
- Derailleur Rear:
- Shimano Sora
- Shift Lever:
- Shimano Sora 9-Speed
- Derailleur Front:
- Shimano Sora
- Chainrings
- 50/34
- Crankset
- Shimano Sora
- Front Derailleur
- Shimano Sora
- Rear Derailleur
- Shimano Sora
- Shifters
- Shimano Sora
Brakes
- Brake Levers:
- Shimano w/ Integrated Shifters
- Brake Levers
- Shimano w/ Integrated Shifters
- Brakes
- Tektro Spyre-C Road Mechanical Disc, 160mm Rotor
Cockpit
- Handlebar:
- Marin Compact 12º Flared Drop
- Grips:
- Marin Microfiber Tape
- Stem:
- Marin 3D Forged Alloy
- Headset:
- FSA No.8B
- Seatpost:
- Marin Alloy
- Saddle:
- Marin Endurance Concept
- Grips
- Marin Microfiber Tape
- Handlebar
- Marin Compact 12º Flared Drop
- Saddle
- Marin Endurance Concept
- Seatpost
- Marin Alloy
- Stem
- Marin 3D Forged Alloy
Wheels & Tires
- Tires:
- Schwalbe G-ONE Performance, 700x30C, Kevlar Puncture Protection, Folding
- Hub Rear:
- Formula, 6-Bolt Disc, 32H
- Hub Front:
- Formula, 6-Bolt Disc, 32H
- Rim:
- Maddux CR24D, Double Wall, Disc Specific, 19mm Inner, Tubeless Ready
- Hubs
- Formula, 6-Bolt Disc
- Rims
- Maddux CR24D, Double Wall, Disc Specific, 19mm Inner, Tubeless Ready
- Spokes
- 14g Black Stainless Steel
- Tires
- Schwalbe G-ONE Performance, 700x30C, Kevlar Puncture Protection, Folding
Pedals
- Pedals:
- Resin Platform
Accessories
- Spokes Nipples:
- 14g Black Stainless Steel
- Brakes Front:
- Tektro Spyre-C Road Mechanical Disc, 160mm Rotor
- Brakes Rear:
- Tektro Spyre-C Road Mechanical Disc, 160mm Rotor
- Rear Cog(s)
- Sunrace 9-Speed, 11-32T
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
Inspection
Carbon inspection
Tap test the frame, fork, seatpost, and bars for cracks; verify no impact damage near dropouts.
Inspection
Brake hoses & cables
Check hydraulic line bleed, cable housing wear, and confirm rotors are within spec.
