Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Marin

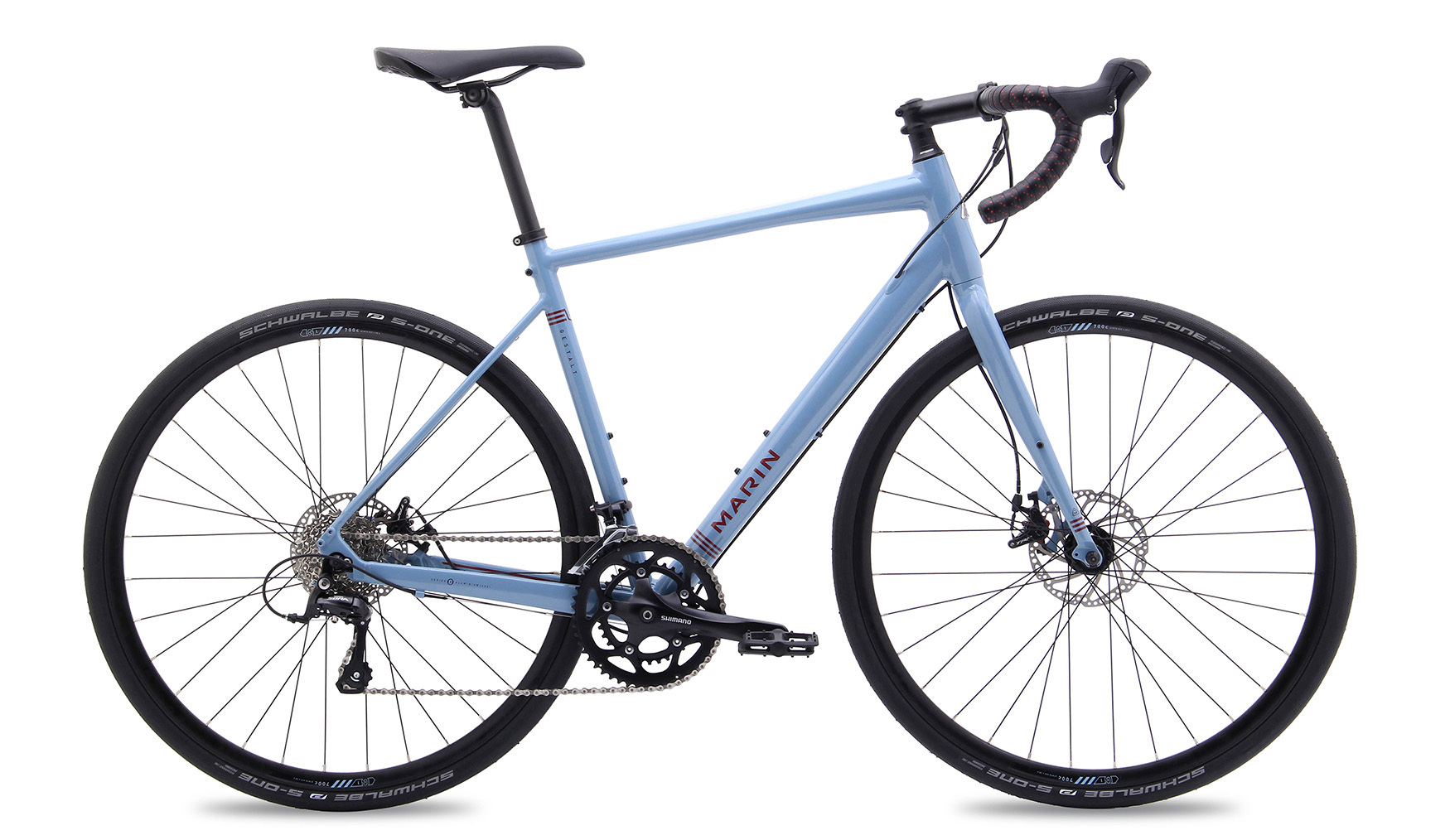

2017 Marin Gestalt 1
Value Guide market data · 2017 Marin Gestalt 1
12-month trend
11%
Direction and magnitude, not judgment
vs. category average
21%
Drops faster than category avg
Price over time - 2017 Marin Gestalt 1
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Gestalt model years
2017 Gestalt 1 lineup
Overview
About this bike
2017 Marin Gestalt 1 value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Front Fork:
- 6061 Aluminum, Straight-Blade, Post-Mount Disc
- Fork
- 6061 Aluminum, Straight-Blade, Post-Mount Disc
- Frame
- Series 3 6061 Aluminum, 700C Wheels, Relieved Head Tube and BB, Internal Cable Routing, Post Mount Disc Specific Forged Dropouts
Drivetrain
- Groupset
- Shimano Sora
- Crankset:
- Shimano R345 Octalink Compact, 50/34T
- Cassette:
- Sunrace 9-Speed, 11-32T
- Bottom Bracket:
- Shimano Octalink V2 Cartridge
- Chain:
- KMC X9
- Derailleur Rear:
- Shimano Sora
- Shift Lever:
- Shimano Sora 9-Speed
- Derailleur Front:
- Shimano Sora
- Bottom Bracket
- Shimano Octalink V2 Cartridge
- Cassette
- Sunrace 9-Speed, 11-32T
- Chain
- KMC X9
- Chainrings
- 50/34
- Crankset
- Shimano R345 Octalink Compact
- Front Derailleur
- Shimano Sora
- Rear Derailleur
- Shimano Sora
- Shifters
- Shimano Sora 9-Speed
Brakes
- Brake Levers:
- Shimano w/ Integrated Shifters
- Brake Levers
- Shimano w/ Integrated Shifters
- Brakes
- Tektro Spyre-C Road Mechanical Disc, 160mm Rotor
Cockpit
- Handlebar:
- Marin Compact 12º Flared Drop
- Grips:
- Marin Microfiber Tape
- Stem:
- Marin 3D Forged Alloy
- Headset:
- FSA No.8B
- Seatpost:
- Marin Alloy
- Saddle:
- Marin Beyond Road Concept
- Grips
- Marin Microfiber Tape
- Handlebar
- Marin Compact 12-degree Flared Drop
- Headset
- FSA No.8B
- Saddle
- Marin Beyond Road Concept
- Seatpost
- Marin Alloy
- Stem
- Marin 3D Forged Alloy
Wheels & Tires
- Tires:
- Schwalbe G-ONE Performance, 700Cx30, Folding Bead, Kevlar Puncture Protection
- Hub Rear:
- Forged Aluminum Alloy, 6-Bolt Disc, 32H
- Hub Front:
- Forged Aluminum Alloy, 6-Bolt Disc, 32H
- Rim:
- Marin Aluminum Double Wall, 19mm Inner, 24mm Tall, Disc Specific, Tubeless Compatible
- Axles
- Quick Release
- Hubs
- Forged Aluminum Alloy, 6-Bolt Disc
- Tires
- Schwalbe G-ONE Performance, 700Cx30, Folding Bead, Kevlar Puncture Protection
- Wheel Set
- Marin Aluminum Double Wall, 19mm Inner, 24mm Tall, Disc Specific, Tubeless Compatible
Pedals
- Pedals:
- Commute Platform
- Pedals
- Commute Platform
Accessories
- Brakes Front:
- Tektro Spyre-C Road Mechanical Disc, 160mm Rotor
- Brakes Rear:
- Tektro Spyre-C Road Mechanical Disc, 160mm Rotor
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
Inspection
Carbon inspection
Tap test the frame, fork, seatpost, and bars for cracks; verify no impact damage near dropouts.
Inspection
Brake hoses & cables
Check hydraulic line bleed, cable housing wear, and confirm rotors are within spec.
