Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Marin

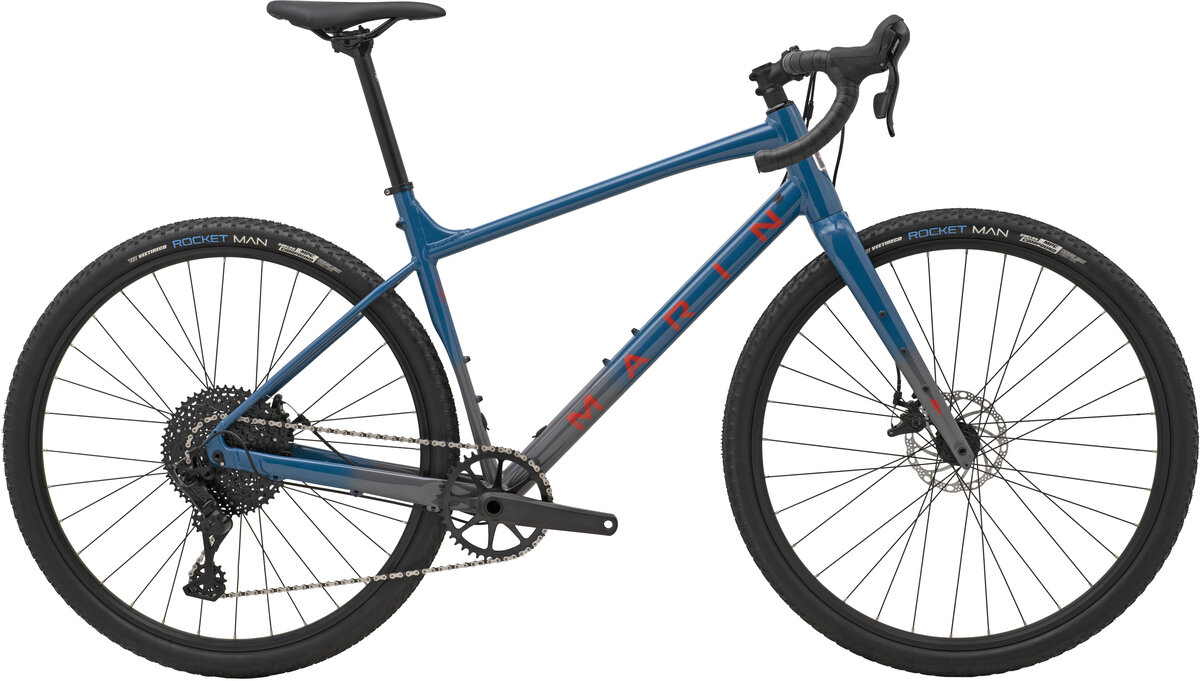

2023 Marin Gestalt X10
Value Guide market data · 2023 Marin Gestalt X10
12-month trend
16%
Direction and magnitude, not judgment
vs. category average
6%
Drops faster than category avg
Price over time - 2023 Marin Gestalt X10
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Gestalt model years
2023 Gestalt X10 lineup
Overview
About this bike
2023 Marin Gestalt X10 value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Fork
- Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
- Frame
- Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
Drivetrain
- Groupset
- 2023 Marin Gestalt X10
- Crankset
- Forged Alloy 1x10, Hollow CrMo Spindle, Narrow Wide 42T
- Bottom Bracket
- External Sealed Cartridge Bearings
- Chain
- KMC X10
- Cassette
- SunRace 10-Speed, 11-51T
- Derailleur, Rear
- microSHIFT Advent X 10-Speed Wide-Range
- Shift Lever
- microSHIFT Advent X 10-Speed
- Rear Derailleur
- MicroSHIFT Advent X 10-Speed Wide-Range
- Shifters
- MicroSHIFT Advent X 10-Speed
Brakes
- Brake Levers
- microSHIFT Advent X
- Brake, Front
- Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor
- Brake, Rear
- Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor
- Brakes
- Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor, Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor, MicroSHIFT Advent X
Cockpit
- Handlebar
- Marin Butted Alloy, Compact 16º Flared Drop
- Stem
- Marin 3D Forged Alloy
- Grips
- Marin Shock Absorbing Perforated Tape
- Headset
- FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
- Seatpost
- Marin Alloy, 27.2mm
- Saddle
- Marin Beyond Road Concept
Wheels & Tires
- Rims
- Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific
- Tires
- Vee Tire Co., Rocket Man, 700x44, Tubeless Compatible
- Hub, Rear
- Forged Aluminum Alloy, Disc, 32H
- Hub, Front
- Forged Aluminum Alloy, Disc, 32H
- Spoke, Nipples
- 14g Black Stainless Steel
- Axles
- Bolt-On Thru-Axles F and R
- Front Tire
- Vee Tire Co., Rocket Man, 700x44, Tubeless Compatible
- Hubs
- Forged Aluminum Alloy, 32H
- Rear Tire
- Vee Tire Co., Rocket Man, 700x44, Tubeless Compatible
- Spokes
- 14g Black Stainless Steel
Pedals
- Pedals
- Sold separately
Accessories
- Extras
- Bolt-On Thru-Axles F and R
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
Inspection
Carbon inspection
Tap test the frame, fork, seatpost, and bars for cracks; verify no impact damage near dropouts.
Inspection
Brake hoses & cables
Check hydraulic line bleed, cable housing wear, and confirm rotors are within spec.
