Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Norco

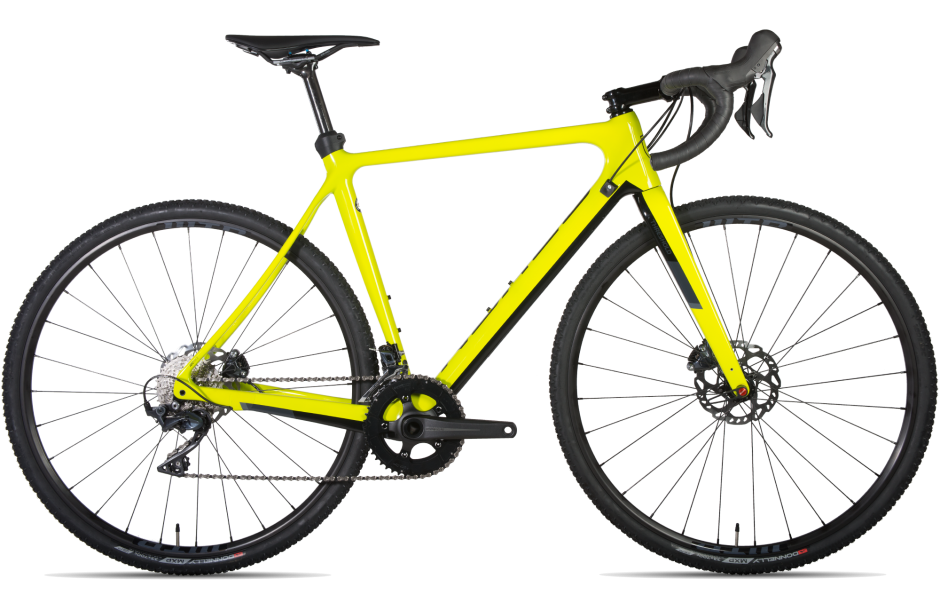

2019 Norco Threshold Carbon Ultegra
Value Guide market data · 2019 Norco Threshold Carbon Ultegra
12-month trend
15%
Direction and magnitude, not judgment
vs. category average
— %
No category comparison available
Price over time - 2019 Norco Threshold Carbon Ultegra
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Threshold model years
2019 Threshold Carbon Ultegra lineup
Overview
About this bike
2019 Norco Threshold Carbon Ultegra value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Fork
- Threshold Carbon
- Frame
- Threshold Carbon
Drivetrain
- Groupset
- 2019 Norco Threshold Carbon Ultegra
- Crankset
- Praxis Zayante - Black
- Bottom Bracket
- Praxis M30
- Chain
- KMC X11
- Front Derailleur
- Shimano Ultegra FD-R8000
- Rear Derailleur
- Shimano Ultegra RD-R8000-GS 11spd
- Cassette/Rear Cogs
- Shimano 105 CS-5800 11spd 11-32T
- Chainrings
- 46/36T
- Shifters
- Shimano Ultegra ST-R8020
Brakes
- Brake Levers
- Shimano Ultegra BR-R8070
- Brakes
- Shimano Ultegra BR-R8070 w/160mm Rotor
Cockpit
- Saddle
- Norco SL Race w/Chromo Rails - Black
- Headset
- FSA Orbit No. 42/ACB - All Black
- Stem
- Norco SL Alloy - Black
- Handlebars
- Easton EA70
- Seat Post
- Norco SLR Composite 27.2mm - UD Carbon
- Tape/Grips
- Norco Super Griptacular - Black
Wheels & Tires
- Hubs
- DT Swiss 350 - Black
- Tires
- Donnelly Crusade MXP 700 x 33c - Folding Tubeless Ready
- Axles
- Front: DT Swiss RWS Thru-Axle 12mm <br>Rear: DT Swiss RWS Thru-Axle 12mm
- Spokes
- Sapim Race Double Butted - Black w/Black Brass Nipples
Accessories
- Rims/Wheels
- WTB ST Light i19 TCS 2.0 Tubeless Ready - Black
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
Inspection
Carbon inspection
Tap test the frame, fork, seatpost, and bars for cracks; verify no impact damage near dropouts.
Inspection
Brake hoses & cables
Check hydraulic line bleed, cable housing wear, and confirm rotors are within spec.
