Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Orbea

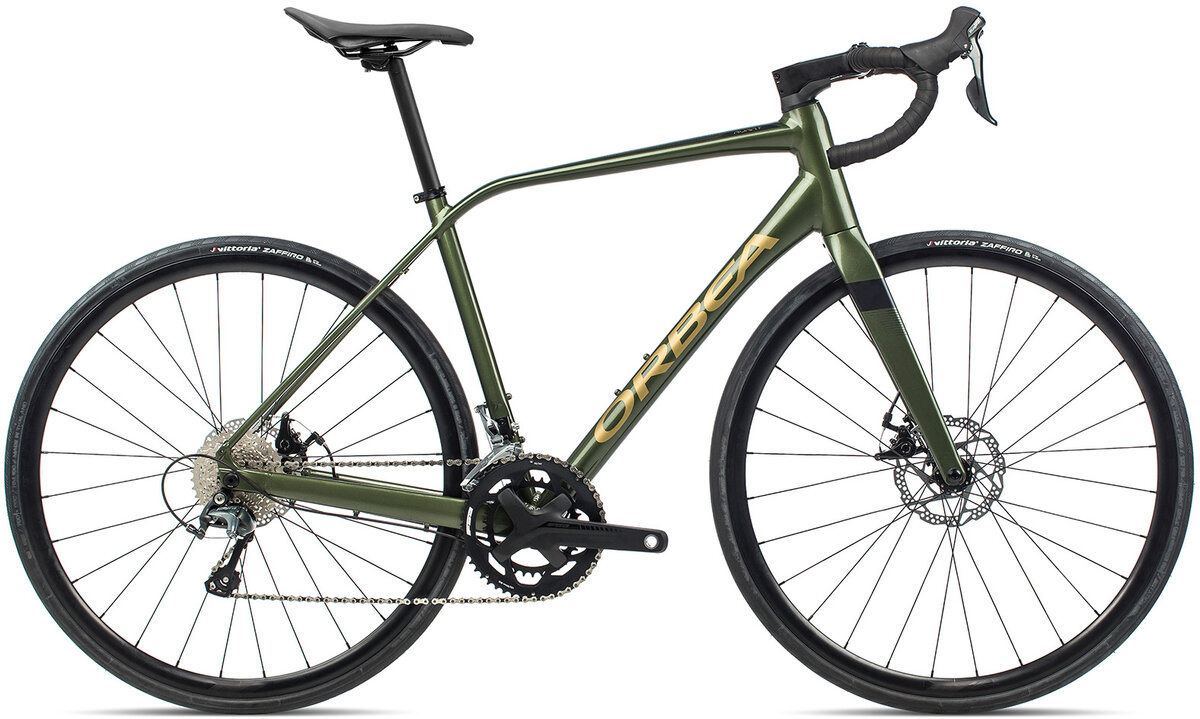

2022 Orbea Avant H40-D
Value Guide market data · 2022 Orbea Avant H40-D
12-month trend
10%
Direction and magnitude, not judgment
vs. category average
— %
No category comparison available
Price over time - 2022 Orbea Avant H40-D
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Avant model years
2024$1,580 - $1,835▼ 23% vs. 2022
2023$1,673 - $1,943▼ 18% vs. 2022
2022$2,045 - $2,375Currently viewing
2021$1,766 - $2,051▼ 14% vs. 2022
2020$2,789 - $3,239▲ 36% vs. 2022
2019$7,439 - $8,639▲ 264% vs. 2022
2018$6,509 - $7,559▲ 218% vs. 2022
2017$9,253 - $10,745▲ 352% vs. 2022
2016$4,277 - $4,967▲ 109% vs. 2022
2015$5,300 - $6,155▲ 159% vs. 2022
2014$8,370 - $9,720▲ 309% vs. 20222022 Avant H40-D lineup
Overview
About this bike
2022 Orbea Avant H40-D value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Fork
- Orbea carbon fork 2021, aluminum steerer, 1-1/8" head tube
- Frame
- Orbea Avant Hydro disc, hydroformed triple butted aluminum, HS 1,5" ICR, BB 68mm – BSC English, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, SP 27,2mm, MMS system.
Drivetrain
- Groupset
- 2022 Orbea Avant H40-D
- Crankset
- FSA Omega Megaexo 34x50T
- Chain
- KMC X10
- Front Derailleur
- Shimano Tiagra 4700
- Rear Derailleur
- Shimano Tiagra 4700 GS
- Shifters
- Shimano Tiagra ST-4700
- Cassette/Freewheel
- Sun Race CSMS1 11-34T 10-Speed
Brakes
- Brakes
- Tektro MD-C550 Mechanical Disc
Cockpit
- Seatpost
- Alloy 27.2 Offset 20
- Saddle
- Fizik Aliante R5
- Handlebar
- OC RP30-R Road Performance Riser, Reach 70, Drop 125, Rise 15, w/Di2 hole
- Headset
- Acros Alloy 1-1/2" Internal Cable Routing
- Stem
- OC RP21 Road Performance ICR, -6º, IFC01 Computer mount interface
- Tape/Grips
- Orbea EVA
Wheels & Tires
- Rear Tire
- Vittoria Zafiro V Rigid bead 700x28c
- Axles
- Front: Orbea Thru Axle 12x100mm M12x2 P1 Solid<br>Rear: Orbea Thru Axle 12x142mm M12x2 P1 Solid
- Front Tire
- Vittoria Zafiro V Rigid bead 700x28c
- Wheel Set
- Orbea wheel: Corsa with 12mm E-Thru hubset Shimano RS470 28H
Pedals
- Pedals
- Sold separately
Accessories
- Accessories & Extras
- Mudguards: OPCIÓN GUARDABARROS
- Color
- Military Green/Gold / Speed Silver / White/Grey
Weight & Sizing
- Size
- 47cm / 49cm / 51cm / 53cm / 55cm / 57cm / 60cm
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
Inspection
Carbon inspection
Tap test the frame, fork, seatpost, and bars for cracks; verify no impact damage near dropouts.
Inspection
Brake hoses & cables
Check hydraulic line bleed, cable housing wear, and confirm rotors are within spec.
