Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Felt

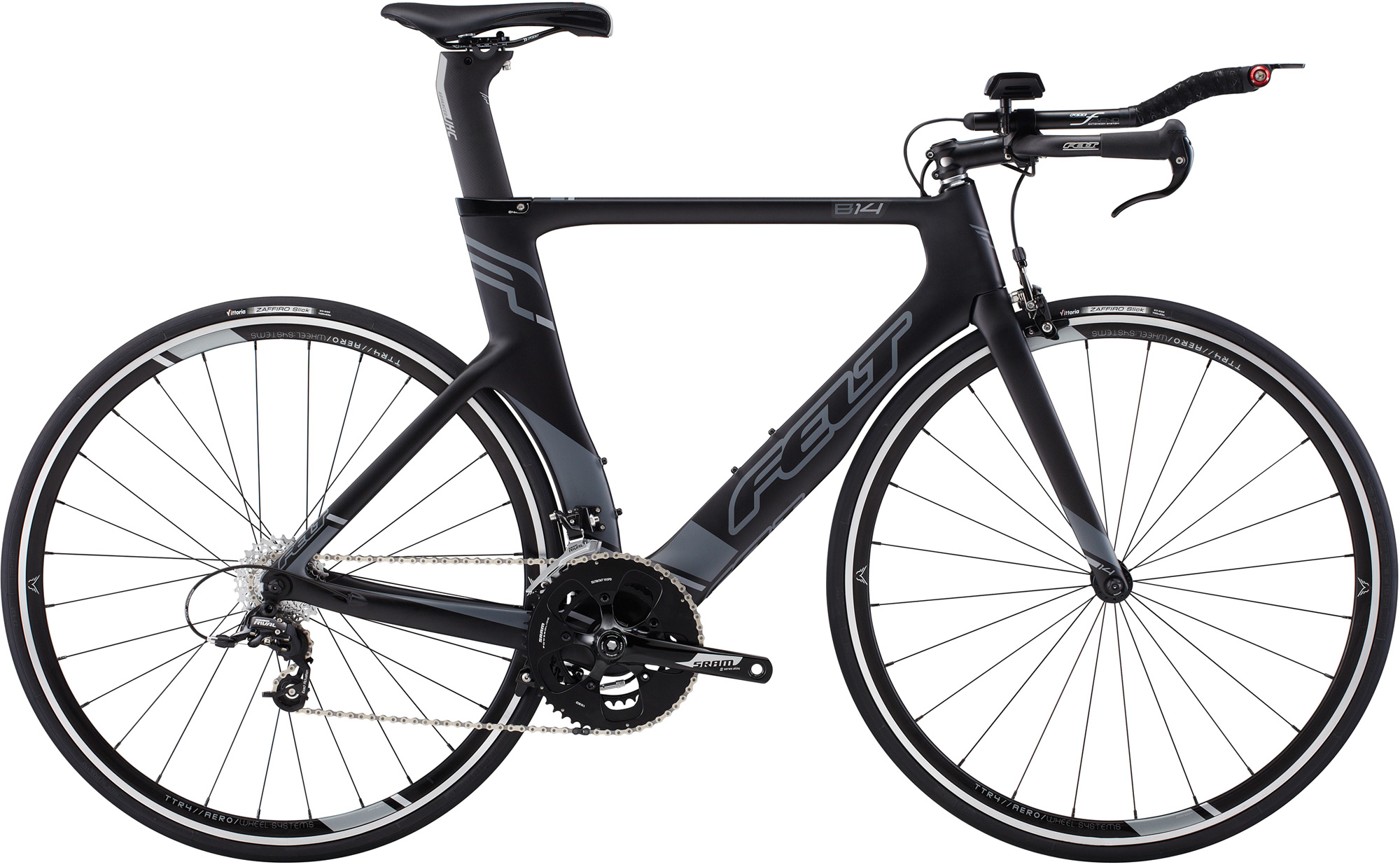

2016 Felt B14
Value Guide market data · 2016 Felt B14
12-month trend
3%
Direction and magnitude, not judgment
vs. category average
7%
Holds value better than category avg
Price over time - 2016 Felt B14
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All B14 model years
2016 B14 lineup
Overview
About this bike
2016 Felt B14 value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Fork
- Felt Aero TT / Tri UHC Performance carbon fiber blades & dropouts, 1.125" aluminum steer tube
Drivetrain
- Groupset
- Shimano Ultegra
- Shifters
- microSHIFT TT 11-speed
- Front Derailleur
- Shimano Ultegra braze-on
- Rear Derailleur
- Shimano Ultegra short cage
- Crankset
- FSA Omega BB30 51cm = 167.5mm 54 - 56cm = 170mm 58 - 61cm = 172.5mm
- Bottom Bracket
- FSA BB30
- Chain
- Shimano 11-speed
- Freewheel / Cassette
- Shimano 11-speed, 11-28T
- Freewheel
- Shimano 11-speed, 11-28T
- Cables
- Felt Slick brake & derailleur
Brakes
- Brake Levers
- Aero TT / Tri
- Brake (Front)
- Dual pivot caliper
- Brake (Rear)
- TRP T822 TT direct mount caliper brake
- Brakes
- Front Brake: Dual pivot caliper/Rear Brake: Felt Aero TT / Tri
Cockpit
- Stem
- Devox Tri, ±17° rise, Ø31.8mm, 51cm: 80mm --- 54 - 56cm: 90mm --- 58cm: 100mm --- 61cm: 110mm
- Grips
- Felt VelvetGel Tape, Felt Tri Tip Grips & Dimpled Gel Pads
- Saddle
- Prologo Nago Evo Tri40 T2.0
- Seat Post
- Felt DA/B Aero UHC carbon fiber, 350mm length
- Seat Post Clamp
- Felt Aero Integrated DA/B
- Handlebar
- Felt Bayonet 3 base bar w/ Felt ƒ-Bend 3-position extensions, Ø31.8mm 51 - 54cm = 390mm 56 - 58cm = 420mm 61cm = 440mm
- Bar Ends
- Felt Mechanical Extension Plugs
Wheels & Tires
- Wheelset
- Felt TTR4 wheels with Vittoria Zaffiro Slick tires
- Front Hub
- Felt R3, sealed bearing, 24H
- Rear Hub
- Felt R3, sealed cartridge bearing, 28H, 11-speed
- Spokes
- 2.0mm stainless steel
- Tires
- Vittoria Zaffiro Slick, 700c x 23c
- Rims / Wheelset
- Devox 30A, tubeless ready, 17mm width, 27mm depth
- Rims
- Felt TTR4, 22mm Width, 30mm Depth
Frame sizing
51Manufacturer sizing
54Manufacturer sizing
56Manufacturer sizing
58Manufacturer sizing
61Manufacturer sizing
56 highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Bottom Bracket Drop
- 70
- Chainstay Length
- 395
- Wheelbase
- 999
- Reach
- 420
- Stack
- 554
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
