Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Specialized

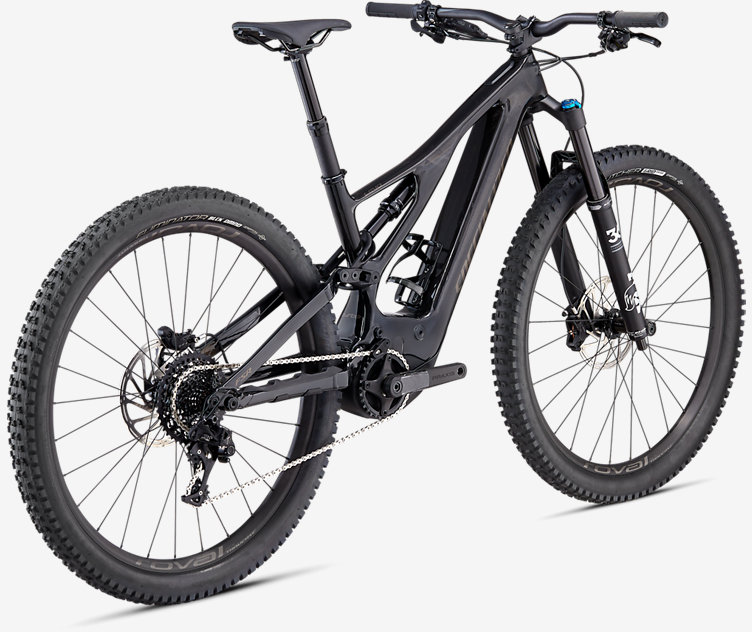

2020 Specialized Turbo Levo Expert Carbon
Value Guide market data · 2020 Specialized Turbo Levo Expert Carbon
12-month trend
8%
Direction and magnitude, not judgment
vs. category average
— %
No category comparison available
Price over time - 2020 Specialized Turbo Levo Expert Carbon
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Turbo Levo model years
2020 Turbo Levo Expert Carbon lineup
Overview
About this bike
2020 Specialized Turbo Levo Expert Carbon value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Frame
- FACT 9m Carbon w/ M5 alloy rear triangle, 29 Trail Geometry, Integrated down tube battery, enclosed internal cable, dropper post routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel
- Rear Shock
- FOX FLOAT DPS Performance, 3-position adjustment, 52.5x210mm, Rx Trail Tune
- Fork
- Fox 36 Performance, 150mm travel, Grip damper with 3 position micro adjust, 51mm offset
Drivetrain
- Groupset
- Shimano Alivio
- Shift Levers
- SRAM S700, single-click lever
- Rear Derailleur
- SRAM X1, 11-speed
- Cassette
- SRAM XG-1175, 11-speed, 10-42t
- Chain
- KMC e11T, 11-speed w/ Missing Link™
- Crankset
- Praxis forged M30, custom offset
- Chainrings
- 40T
- Shifters
- SRAM S700, single-click lever
Brakes
- Front Brake
- SRAM Code R, 4-piston caliper, hydraulic disc, 200mm
- Rear Brake
- SRAM Code R, 4-piston caliper, hydraulic disc, 200mm
- Brakes
- SRAM Code R, 4-piston caliper, hydraulic disc, 200mm
Cockpit
- Seat Binder
- Specialized bolt-type, alloy, 38.6mm
- Stem
- Specialized Trail, forged alloy, 4-bolt, 5mm rise, 40mm
- Handlebars
- Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 780mm, 31.8mm clamp
- Grips
- Specialized Sip grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
- Saddle
- Bridge 155 S2, Bridge 143 S3/S4/S5, Hollow cr-mo rails
- SeatPost
- Command Post IRcc, 16-position micro-height adjustable, two-bolt head, bottom mount cable routing, remote SRL lever, 34.9mm, S: 130mm, M/L/XL: 160mm of travel
- Handlebar
- Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 780mm, 31.8mm clamp
Wheels & Tires
- Rims
- Roval Traverse 29, hookless alloy, 30mm width, hand-built, 2Bliss Ready
- Front Hub
- Specialized, sealed cartridge bearings, 15x110mm spacing, 28h
- Rear Hub
- DT Swiss 360, 3-pawl design, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
- Spokes
- DT Swiss Competition Race
- Front Tire
- Butcher, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 29x2.6"
- Rear Tire
- Eliminator, BLCK DMND Casing, 2Bliss Ready, 29x2.3"
- Inner Tubes
- Standard, Presta valve
- Axles
- Front: 110x15mm, Rear: 148x12mm
- Hubs
- Front: Specialized, sealed cartridge bearings, 15x110mm spacing, 28h, Rear: DT Swiss 360, 3-pawl design, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
Pedals
- Pedals
- Specialized Dirt
E-System
- Motor
- Specialized Turbo Full Power System 2.2 Motor
- Battery
- Specialized M2-700, integrated battery w/rock guard, 700Wh
- UI/Remote
- Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote
- Charger
- Custom charger, 42V4A w/ Rosenberger plug, 100-240V
- Wiring Harness
- Custom Specialized harness
- Display
- Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
Inspection
Battery health
Request battery cycle count and any diagnostic report; older packs lose range and capacity.
Inspection
Motor warranty
Verify motor warranty status and any firmware updates from the manufacturer dealer.
