Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Trek

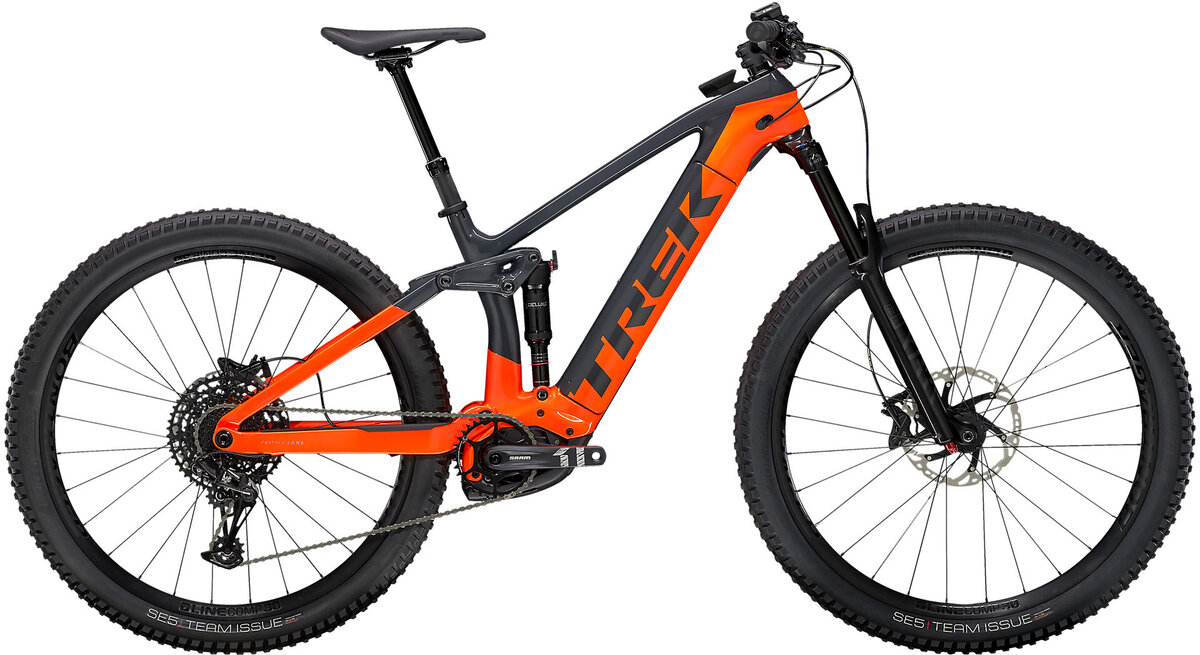

2021 Trek Rail 9.7
Value Guide market data · 2021 Trek Rail 9.7
12-month trend
13%
Direction and magnitude, not judgment
vs. category average
— %
No category comparison available
Price over time - 2021 Trek Rail 9.7
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Rail model years
2021 Rail 9.7 lineup
Overview
About this bike
2021 Trek Rail 9.7 value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Rear Shock
- RockShox Deluxe Select+, 230x57.5mm
- Fork
- RockShox Yari RC, DebonAir spring, Motion Control RC damper, e-MTB optimized, tapered steerer, 42mm offset, Maxle Stealth, 160mm travel
- Frame
- OCLV Mountain Carbon main frame, Removable Integrated Battery (RIB), tapered head tube, Knock Block, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, 150mm travel
Drivetrain
- Groupset
- 2021 Trek Rail 9.7
- Crankset
- SRAM X1 1000, 165mm length
- Chain
- SRAM NX Eagle, 12 speed
- Rear Derailleur
- SRAM NX Eagle
- Chainrings
- 36T
- Shifters
- SRAM NX Eagle single-click, 12 speed
- Cassette
- SRAM PG-1230 Eagle, 11-50, 12 speed
Brakes
- Brakes
- Shimano M6120 4-piston hydraulic disc w/Shimano RT76, 203mm, 6-bolt rotors
Cockpit
- Saddle
- Bontrager Arvada, steel rails, 138mm width
- Handlebar
- Bontrager Comp, alloy, 31.8mm, 15mm rise, 780mm width
- Headset
- Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
- Stem
- Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 60mm length
- Seat Post
- Bontrager Line Dropper, internal routing, 31.6mm, Small: 100mm travel / Medium – X-Large: 150mm travel
- Tape/Grips
- Bontrager XR Trail Comp, nylon lock-on
Wheels & Tires
- Hubs
- Bontrager alloy, sealed bearing, alloy axle
- Rear Tire
- Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 TPI, 29 x 2.60''
- Axles
- Front: 110 x 15 thru-axle<br>Rear: 148 x 12mm thru-axle
- Front Tire
- Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 TPI, 29 x 2.60''
Pedals
- Pedals
- VP-536 nylon platform
E-System
- Display
- Bosch Kiox with Anti-theft solution
- Battery
- Bosch PowerTube 625
- Charger
- Bosch standard 4A (100-240V) charger
- Motor
- Bosch Performance CX, magnesium motor body, 250 watt, 75 Nm
Accessories
- Rims/Wheels
- Bontrager Line Comp 30, Tubeless Ready, 6-bolt
- Max Assisted Speed
- 20mph (32km/h)
- Color
- Gloss Purple Phaze/Matte Raw Carbon / Raw Carbon/Volt / Solid Charcoal to Root Beer Ano Decal / Solid Charcoal/Radioactive Orange
Weight & Sizing
- Size
- Small / Medium / Large / X-Large
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
Inspection
Battery health
Request battery cycle count and any diagnostic report; older packs lose range and capacity.
Inspection
Motor warranty
Verify motor warranty status and any firmware updates from the manufacturer dealer.
