Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Marin

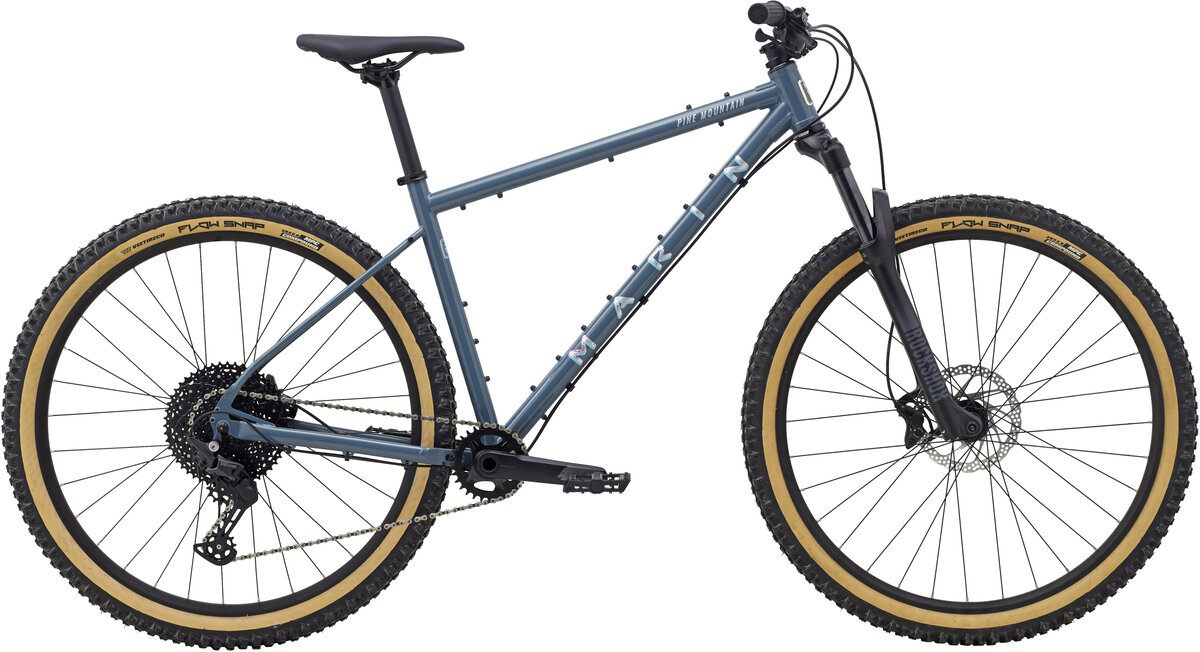

2023 Marin Pine Mountain 1
Value Guide market data · 2023 Marin Pine Mountain 1
12-month trend
11%
Direction and magnitude, not judgment
vs. category average
— %
No category comparison available
Price over time - 2023 Marin Pine Mountain 1
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Pine Mountain model years
2023 Pine Mountain 1 lineup
Overview
About this bike
2023 Marin Pine Mountain 1 value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Fork
- RockShox Recon RL, 120mm Travel, Compression and Rebound Adjustment, Alloy Tapered Steerer, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 51mm Offset
- Frame
- Series 2 Double Butted CrMo, 29" Wheels, Boost 141x9mm Open Dropout, 73mm Threaded BB, Plentiful Gear Mounts
Drivetrain
- Groupset
- 2023 Marin Pine Mountain 1
- Crankset
- Marin Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 32T Chainring, 76mm BCD
- Bottom Bracket
- External Sealed Cartridge Bearings
- Chain
- KMC X11
- Rear Derailleur
- Shimano Deore 11-Speed
- Shifters
- Shimano Deore 11-Speed
- Cassette/Freewheel
- SunRace 11-Speed, 11-51T
Brakes
- Brake Levers
- Shimano MT400 Hydraulic
- Brakes
- Shimano MT420, 4-Piston, Hydraulic Disc, 180mm Rotor, Shimano MT400, 2-Piston, Hydraulic Disc, 160mm Rotor, Shimano MT400 Hydraulic
Cockpit
- Seatpost
- Marin Alloy, 30.9mm
- Saddle
- Marin Pine Mountain Trail
- Handlebar
- Marin Bedroll Bar, 50mm Rise, 780 Width, 10° Backsweep, 6° Upsweep
- Headset
- FSA Orbit ITA, Sealed Cartridge Bearings, 1 1/8" x 1 1/2"
- Stem
- Marin 3D Forged Alloy, 35mm
- Tape/Grips
- Marin BearPaw Locking
Wheels & Tires
- Hubs
- Forged Alloy, 141x9mm, Disc, 32HForged Alloy, 110x15mm, Disc, 32H
- Rims
- Alloy Double-Wall, Offset Spoke, 32mm ID, Tubeless Compatible
- Rear Tire
- Vee Tire Flow Snap, 29x2.6", Wire Bead
- Spokes
- 14g Black Stainless Steel
- Front Tire
- Vee Tire Flow Snap, 29x2.6", Wire Bead
Pedals
- Pedals
- Nylon Platform
Accessories
- Color
- Gloss Grey/Silver/Teal
Weight & Sizing
- Size
- Small / Medium / Large / X-Large
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
Inspection
Suspension service
Confirm fork lowers and rear shock service intervals; ask for the most recent service receipts.
Inspection
Frame pivots & bearings
Cycle the suspension off the bike to feel for play, grit, or noise in pivot bearings.
