Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Orbea

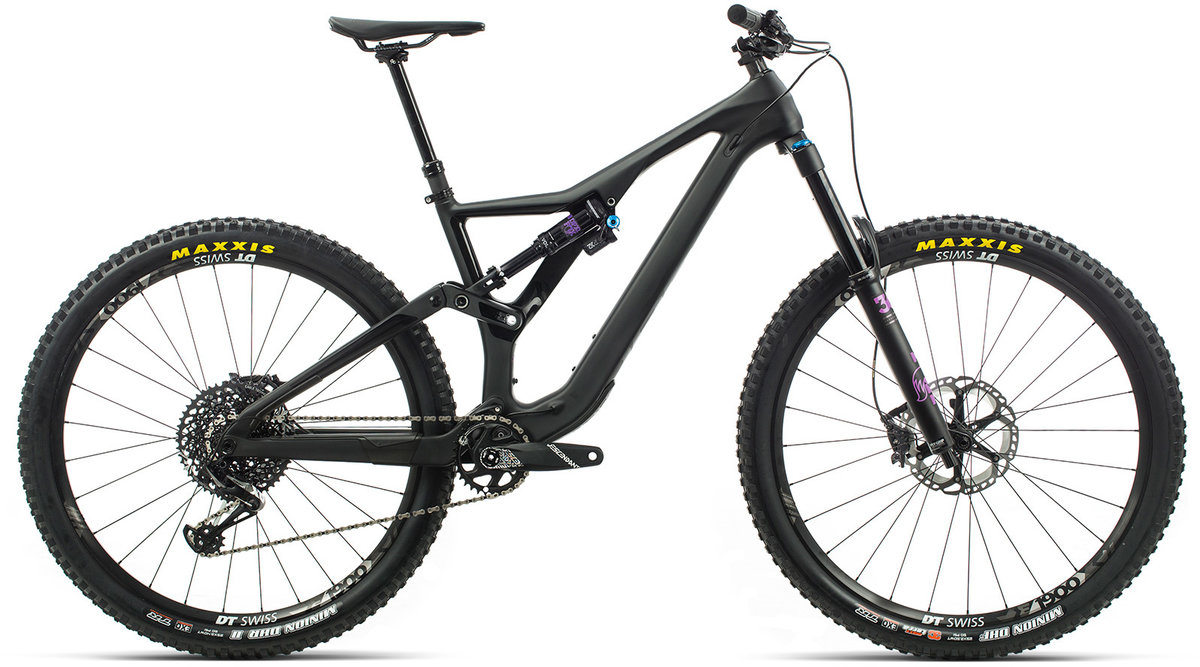

2020 Orbea Rallon M10
Value Guide market data · 2020 Orbea Rallon M10
12-month trend
9%
Direction and magnitude, not judgment
vs. category average
— %
No category comparison available
Price over time - 2020 Orbea Rallon M10
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Rallon model years
2024$6,509 - $7,559▼ 30% vs. 2020
2023$10,229 - $11,879▲ 10% vs. 2020
2022$7,160 - $8,315▼ 23% vs. 2020
2021$8,369 - $9,719▼ 10% vs. 2020
2020$9,299 - $10,799Currently viewing
2019$9,299 - $10,7990% vs. 2020
2018$8,369 - $9,719▼ 10% vs. 2020
2017$5,579 - $6,479▼ 40% vs. 2020
2016$5,579 - $6,479▼ 40% vs. 2020
2015$5,858 - $6,803▼ 37% vs. 2020
2012$6,510 - $7,560▼ 30% vs. 2020
2011$6,045 - $7,020▼ 35% vs. 2020
2010$3,906 - $4,536▼ 58% vs. 20202020 Rallon M10 lineup
Overview
About this bike
2020 Orbea Rallon M10 value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Frame
- Carbon / Orbea Monocoque Race Carbon. Advanced Dynamics 160mm suspension technology. 29" wheels.Concentric Boost 12x148 rear axle. Pure Enduro geometry. Internal cable routing. ISCG05Colors:Black (Matte) / Black-Purple (Gloss); Green (Matte) /Orange (Gloss); Grey Blue - Bright Red (Gloss)
- Suspension
- Full, 160 / 170mm
- Fork
- Fox Performance Float 38 / Fox 38 Float Performance 170 Grip 3-Position QR15x110Travel:170mmSpring Type:Air
- Shock
- Fox Float DPX2 Performance / Fox DPX2 Performance 3-Position Evol custom tune 230x60mmTravel:160mm
- Headset
- Acros Alloy 1-1/8 - 1-1/2" Integrated
Drivetrain
- Drivetrain
- 1 × 12
- Groupset
- RED, GX Eagle
- Rear Derailleur
- SRAM X01 Eagle Red
- Crank
- SRAM Descendant CNC Eagle Dub Boost 32t
- Shifters
- SRAM GX Eagle Lunar
- Cassette
- SRAM XG-1275 Eagle 10-50t 12-Speed
- Chain
- SRAM GX Eagle 12-Speed
Brakes
- Brakes
- Shimano XT Hydraulic Disc / Shimano XT M8120 Hydraulic DiscType:Shimano XT Hydraulic Disc
Cockpit
- Seatpost
- Dropper / OC2 Dropper 31.6mmType:Dropper
- Stem
- Race Face Aeffect R 35mm interface
- Handlebar
- Race Face Aeffect 35 20mm Rise 780mm
- Saddle
- Fizik Taiga S-alloy rail
Wheels & Tires
- Wheels
- 29″ Aluminum
- Rims
- DT Swiss E-1900 Spline 30c TLR 15/110mm CL
- Tires
- Maxxis Minion DHR II 2.40" FB 60 TPI Dual Exo TR
Frame sizing
SM/MDManufacturer sizing
LGManufacturer sizing
XLManufacturer sizing
LG highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- 627
- Reach
- 455
- Top Tube Length
- 611
- Seat Tube Length
- 444
- Chainstay Length
- 435
- Wheelbase
- 1,217
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
Inspection
Suspension service
Confirm fork lowers and rear shock service intervals; ask for the most recent service receipts.
Inspection
Frame pivots & bearings
Cycle the suspension off the bike to feel for play, grit, or noise in pivot bearings.
