Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Trek

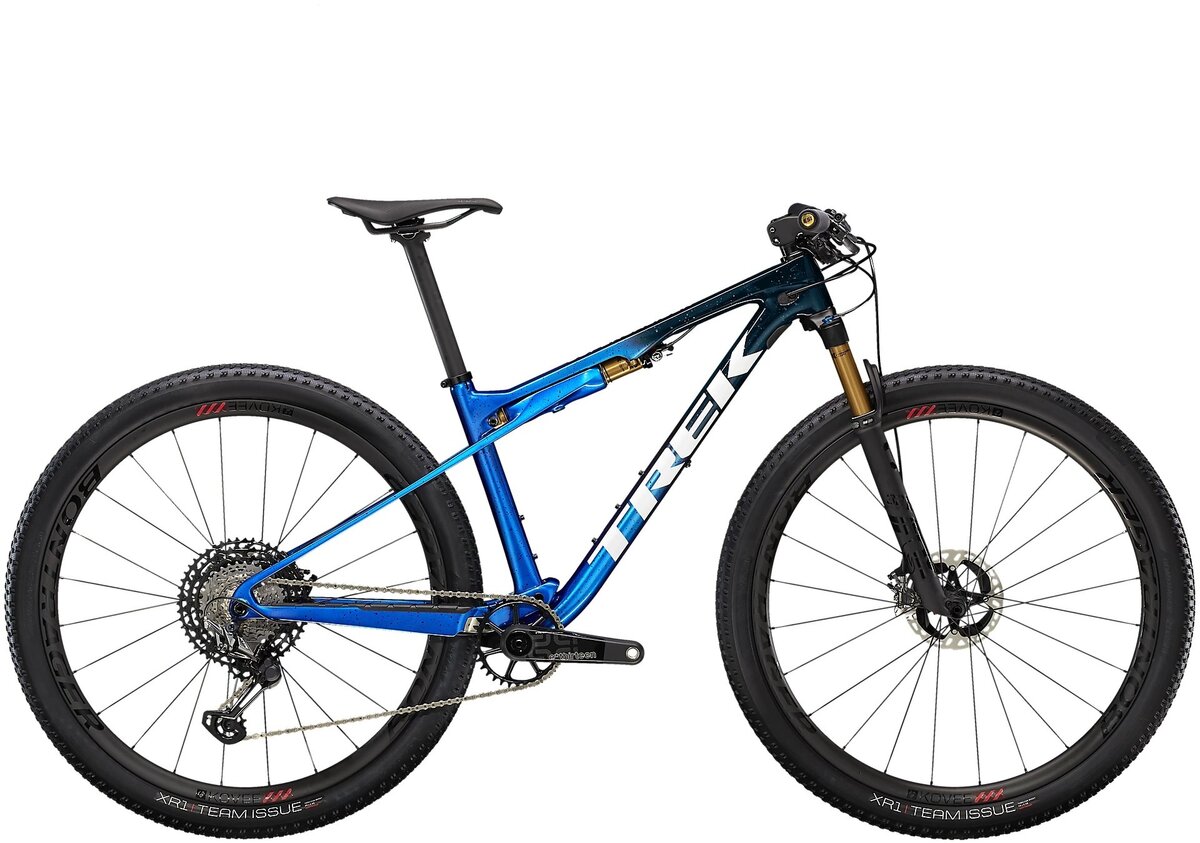

2022 Trek Supercaliber 9.9 XTR
Value Guide market data · 2022 Trek Supercaliber 9.9 XTR
12-month trend
11%
Direction and magnitude, not judgment
vs. category average
— %
No category comparison available
Price over time - 2022 Trek Supercaliber 9.9 XTR
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Supercaliber model years
2022 Supercaliber 9.9 XTR lineup
Overview
About this bike
2022 Trek Supercaliber 9.9 XTR value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Rear Shock
- Trek IsoStrut, Fox Factory shock, air spring, DPS 2-position remote damper, Kashima Coat, 235x32.5mm
- Fork
- Fox Factory 32 Step-Cast, Float EVOL air spring, FIT4 2-position remote damper, tapered steerer, 44mm offset, Kashima Coat, Boost110, 15mm Kabolt axle
- Frame
- OCLV Mountain Carbon main frame & stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60mm travel
Drivetrain
- Groupset
- 2022 Trek Supercaliber 9.9 XTR
- Crankset
- Size: S E*thirteen XCX Race, carbon, 34T ring, Boost, 170mm length<br>Size: M, M/L, L, XL E*thirteen XCX Race, carbon, 34T ring, Boost, 175mm length
- Bottom Bracket
- e*thirteen BB20-92
- Chain
- Shimano XTR M9100, 12 speed
- Rear Derailleur
- Shimano XTR M9100, Shadow Plus, long cage, 51T max cog
- Shifters
- Shimano XTR M9100, 12 speed
- Cassette/Freewheel
- Shimano XTR M9101, 10-51, 12 speed
Brakes
- Brakes
- Shimano XTR M9100 hydraulic disc
- Rotors
- Shimano MT900, 160mm, centerlock
Cockpit
- Seatpost
- Fox Transfer SL, 100mm travel, internal routing, 31.6mm
- Saddle
- Bontrager P3 Verse Pro, carbon rails, 145mm width
- Headset
- Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom
- Stem
- Size: S, M Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0mm handlebar rise, 750mm width, -13 degree stem rise, 70mm length<br>Size: M/L, L Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0mm handlebar rise, 750mm width, -13 degree stem rise, 80mm length<br>Size: XL Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0mm handlebar rise, 750mm width, -13 degree stem rise, 90mm length
- Tape/Grips
- ESI Chunky
Wheels & Tires
- Rear Tire
- Bontrager XR1 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.20"
- Front Tire
- Bontrager XR1 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.20"
- Wheel Set
- Front: Bontrager Kovee XXX, OCLV Mountain Carbon, Tubeless Ready, center lock, Boost110, 15mm thru axle<br>Rear: Bontrager Kovee XXX, OCLV Mountain Carbon, Tubeless Ready, DT Swiss 54T engagement, center lock, SRAM XD driver, Boost148, 12mm thru-axle
Pedals
- Pedals
- Sold separately
Accessories
- Color
- Navy Smoke to Alpine Blue Fade
Weight & Sizing
- Size
- Small / Medium / Medium/Large / Large / X-Large
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
Inspection
Suspension service
Confirm fork lowers and rear shock service intervals; ask for the most recent service receipts.
Inspection
Frame pivots & bearings
Cycle the suspension off the bike to feel for play, grit, or noise in pivot bearings.
