Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Raleigh
2006 Raleigh Grand Prix
Value Guide market data · 2006 Raleigh Grand Prix
12-month trend
— %
Direction and magnitude, not judgment
vs. category average
— %
No category comparison available
Price over time - 2006 Raleigh Grand Prix
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.

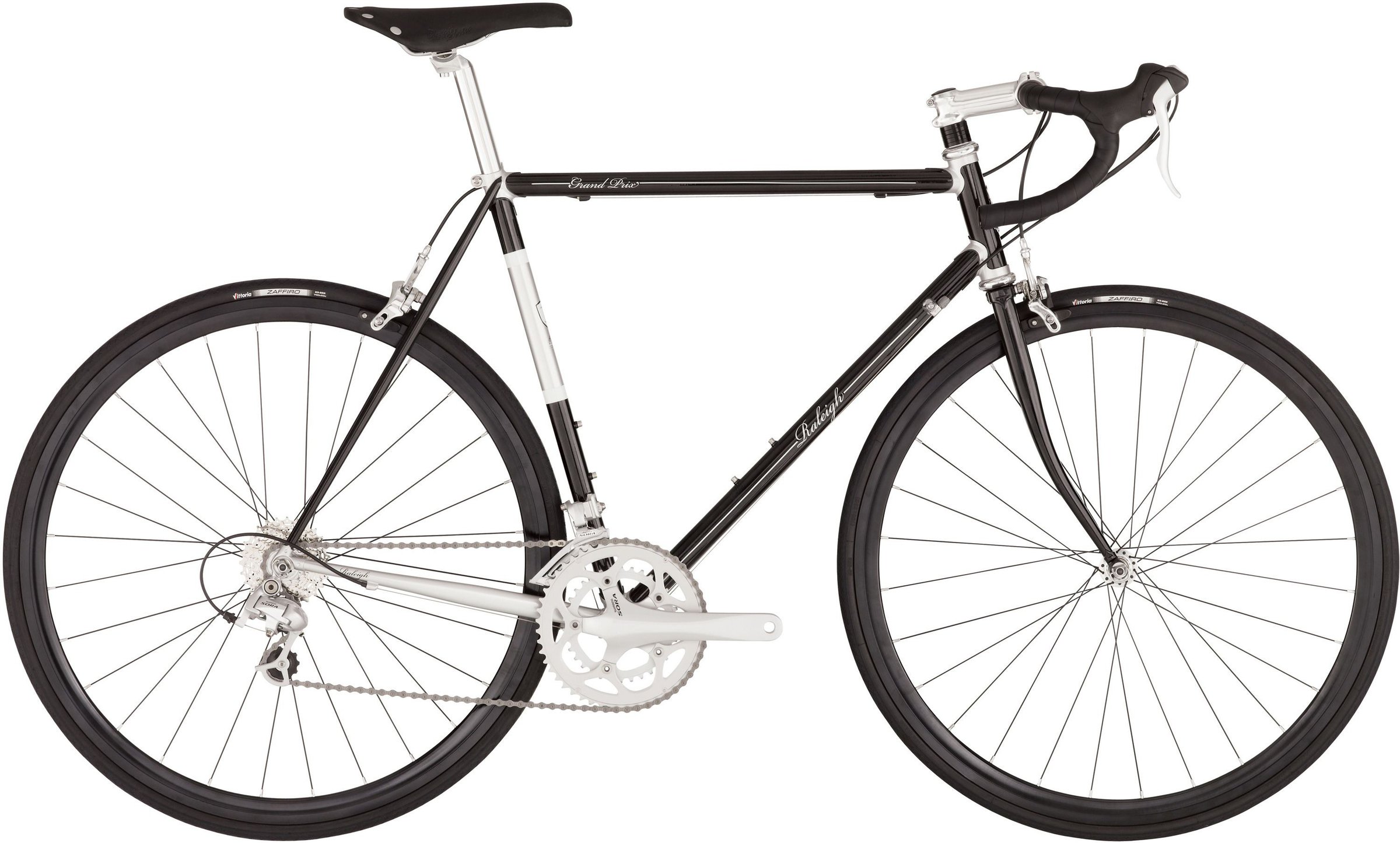

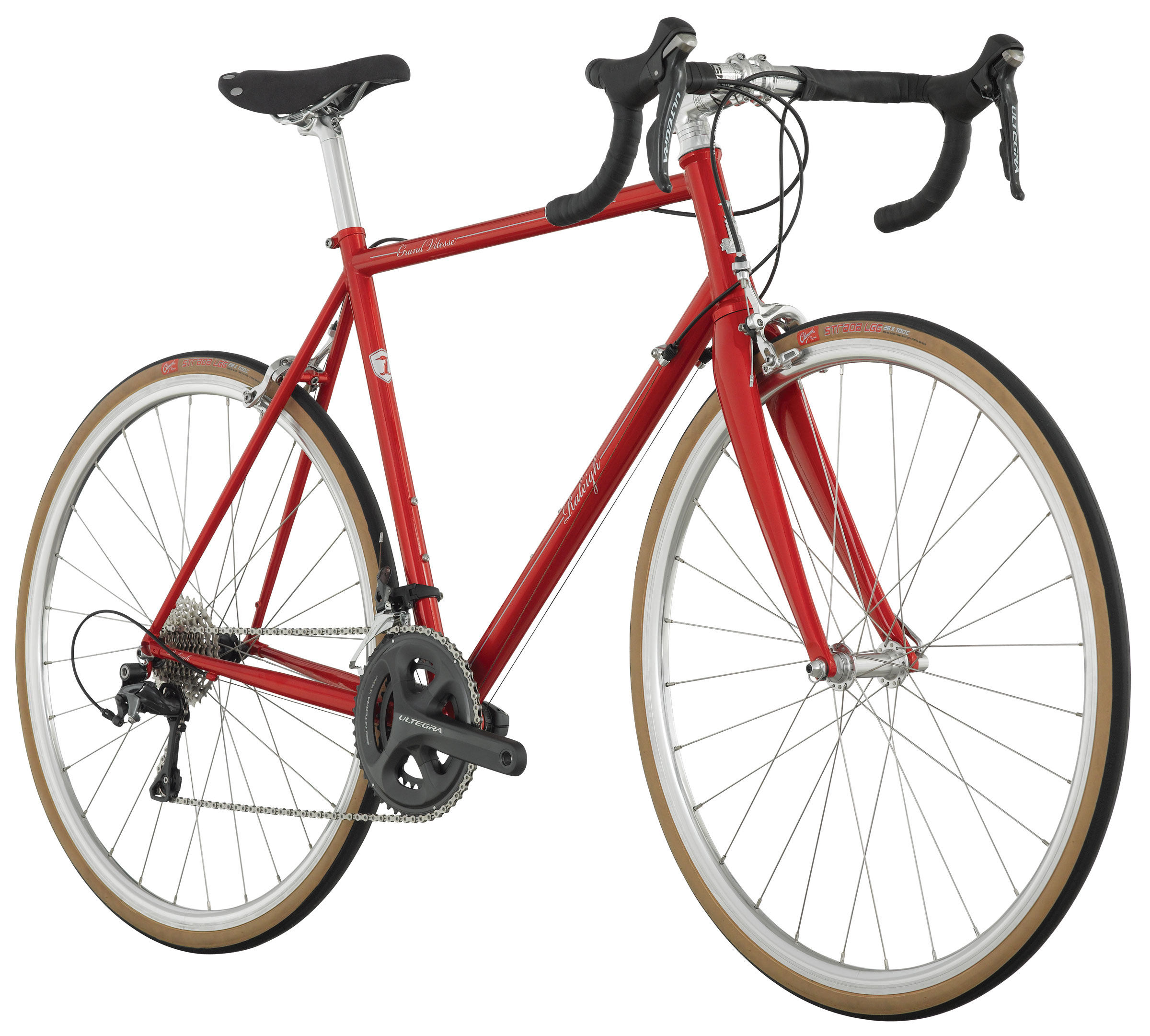

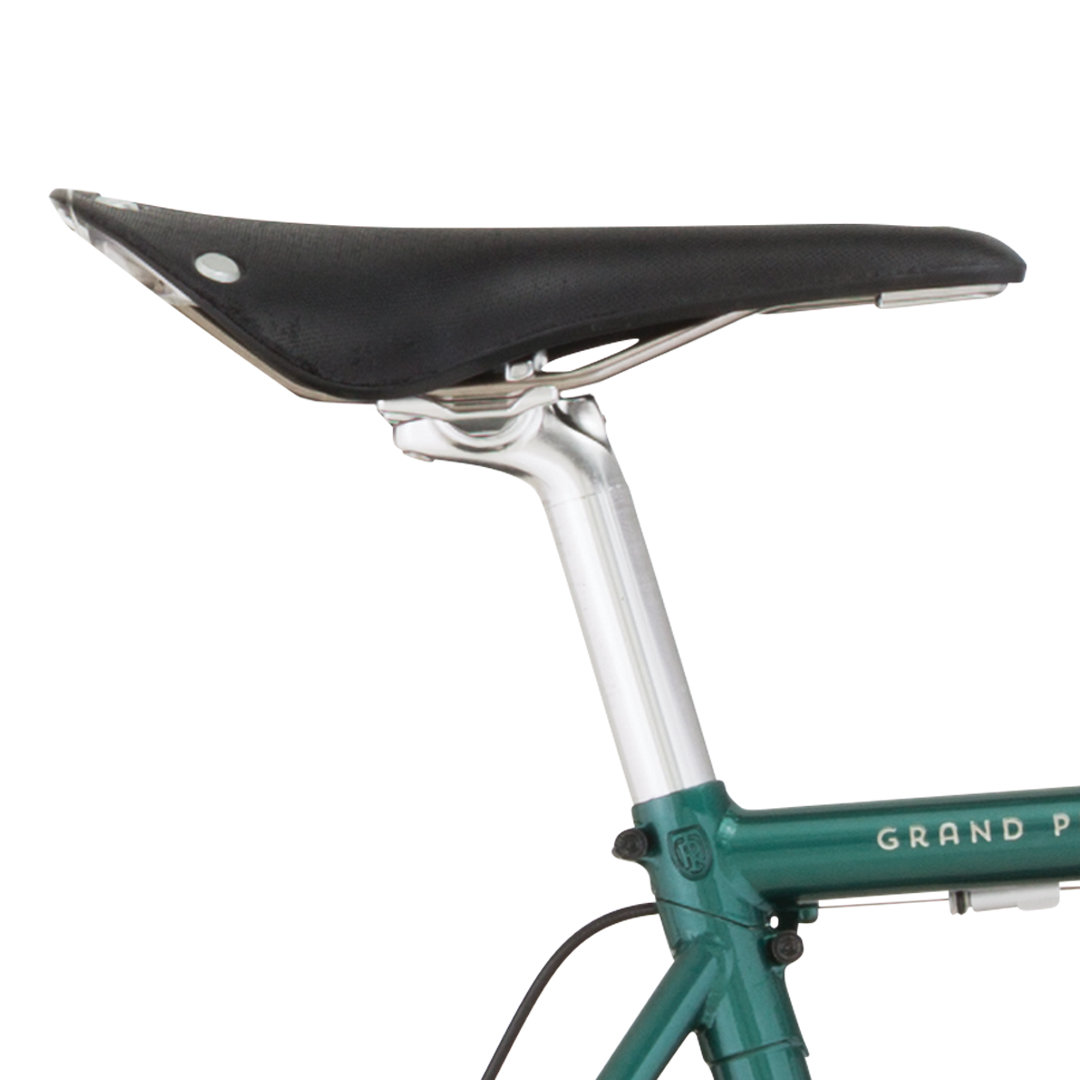

All Grand model years
2006 Grand Prix lineup
Overview
About this bike
2006 Raleigh Grand Prix value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Frame Construction
- TIG-welded
- Frame Tubing Material
- Atomic 13 aluminum
- Fork Brand & Model
- Easton EA70 Carbon
- Fork Material
- Carbon fiber/aluminum steerer, aero crown
- Rear Shock
- Not applicable
Drivetrain
- Groupset
- 2006 Raleigh Grand Prix
- Shift Levers
- Shimano Tiagra
- Crankset
- Truvativ Touro Power Spline Road, 30/42/52 teeth
- Bottom Bracket
- TruVativ Power Spline
- Rear Cogs
- 9-speed, 12 - 25 teeth
- Chain
- KMC Z9000
Brakes
- Brakeset
- Tektro Dual Pivot brakes, Shimano Tiagra levers
Cockpit
- Seatpost
- Raleigh Carbon, 27.2mm diameter
- Saddle
- Selle Italia FK Trans Am
- Handlebar
- Ritchey Road 26.0
- Handlebar Stem
- Ritchey 4-bolt
- Headset
- 1 1/8inch integrated
Wheels & Tires
- Hubs
- Front: Alloy Joytech QR, Rear: Alloy Joytech QR Cassette
- Rims
- Alex DC-19, 28-hole
- Tires
- 700 x 23c Vittoria Zaffiro
- Spoke Brand
- Stainless steel, 14ga. (2.0mm) straight gauge
Pedals
- Pedals
- Shimano PD-520 clipless
Accessories
- Colors
- Yellow/Black
- Extensions
- Not included
Weight & Sizing
- Sizes
- 46cm, 50cm, 53cm, 55cm, 57cm, 59cm, 62cm
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
Inspection
Carbon inspection
Tap test the frame, fork, seatpost, and bars for cracks; verify no impact damage near dropouts.
Inspection
Brake hoses & cables
Check hydraulic line bleed, cable housing wear, and confirm rotors are within spec.
