Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Diamondback

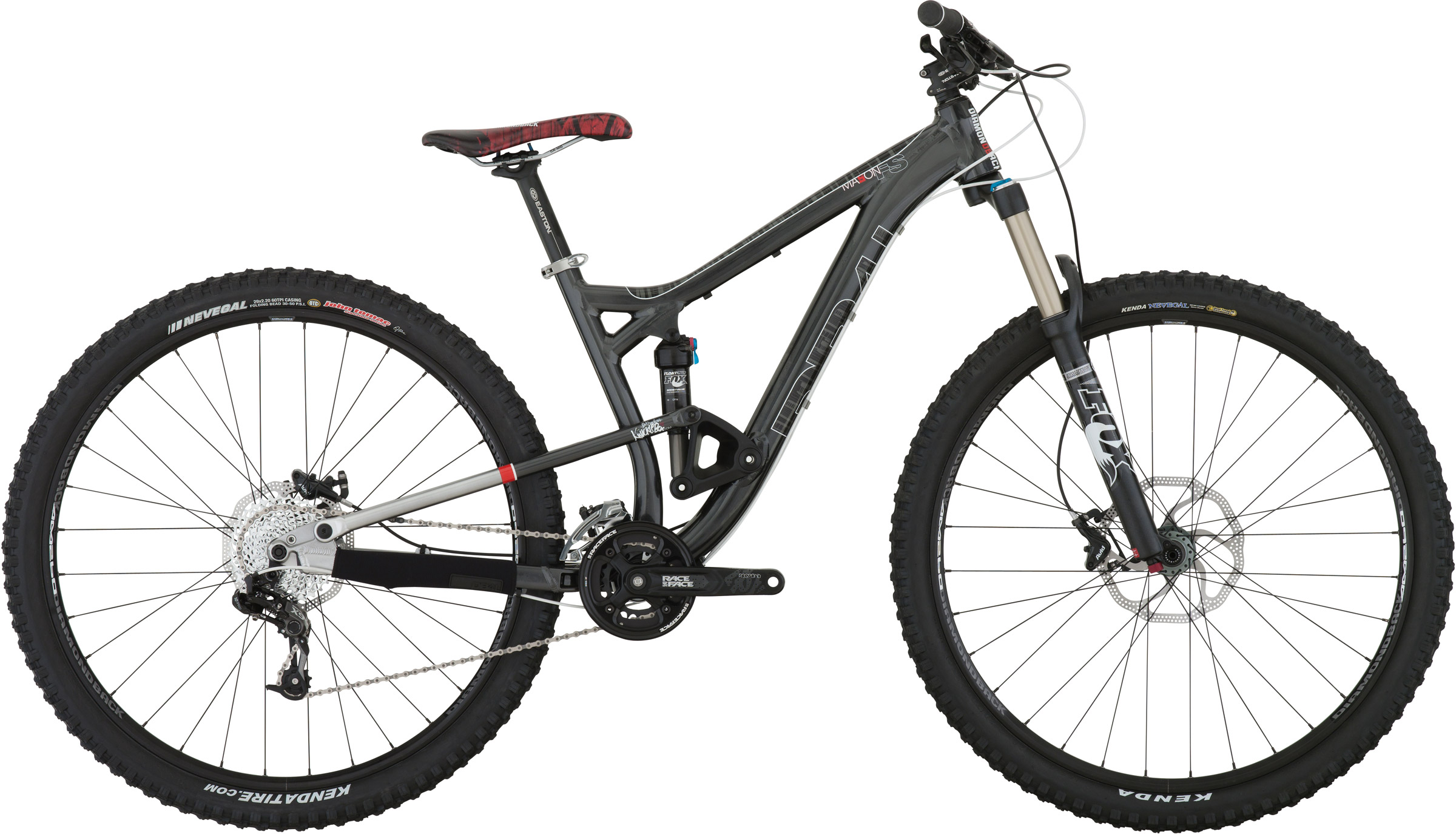

2014 Diamondback Mason FS 29
Previous used estimate
$726 - $747
Actual value depends on condition, size, and local demand.
Value Guide market data · 2014 Diamondback Mason FS 29
12-month projected trend
— %
Direction and magnitude, not judgment
vs. category average
— %
No category comparison available
Price over time - 2014 Diamondback Mason FS 29
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Mason model years
Compare Mason FS 29 models
1 modelsChoose a different build or frame style to see its value.
Overview
About this bike
Break down the walls of what you thought was rideable on Diamondback’s Mason FS 29. Its lightweight aluminum frame and rock-conquering 29-inch wheels climb the impossible, while its slack head angle, stout 142x12mm rear through-axle, and 140mm of Fox-powered Knuckle Box suspension let you descend like a pro. A big 140mm Fox 34 fork helps out, too. A Race Face crank and SRAM X9 Type 2 derailleur are the rugged heart of this all-mountain 2x10 drivetrain, and Avid's Elixir 5 brakes scrub speed as you dive into turns. Outfitted with an Easton stem and seatpost, Diamondback's burly ProBar, and Kenda's legendary Nevegal tires, you’ve got a mountain-slaying package that easily handles all-day epics, as long as you take the gnarly line down.
Specifications
- Category
- Mountain
- Component Fork
- Fox 34 Float CTD, 140mm-travel, tapered steerer w/15mm QR
- Component Hubs
- Aluminum; Rear: sealed bearing
- Component Stem
- Easton EA50
- Product Family
- Mason
- Component Frame
- Diamondback All-Mountain 6061-aluminum w/Knuckle Box linkage, 142 x 12mm through-axle
- Component Tires
- Kenda Nevegal, 29 x 2.35
- Component Brakes
- Avid Elixir 5 disc, 8/7-inch rotors
- Component Pedals
- Diamondback Sound aluminum platform
- Component Saddle
- WTB Silverado Race SL
- Component Cassette
- SRAM PG-1030, 10-speed: 11-36
- Component Crankset
- Race Face Respond
- Component Seatpost
- Seven Aluminum
- Component Shifters
- SRAM X-7
- Component Handlebar
- Diamondback ProBar riser, 740mm
- Component Seat Post
- Easton EA50
- Component Wheel Set
- AM290, double-wall aluminum
- Component Chainrings
- 36/24 w/bash guard
- Component Rear Shock
- Fox Float CTD w/Boost Valve, 140mm-travel
- Component Tape Grips
- Diamondback Lock-on, Kraton
- Component Brake Levers
- Avid Elixir 5
- Component Rear Derailleur
- SRAM X-9, Type 2
- Component Front Derailleur
- Shimano Deore
- Rear Shock
- Fox Float CTD w/Boost Valve, 140mm-travel
- Hubs
- Aluminum; Rear: sealed bearing
- Tires
- Kenda Nevegal, 29 x 2.35
- Crankset
- Race Face Respond
- Pedals
- Diamondback Sound aluminum platform
- Seatpost
- Seven Aluminum
- Saddle
- WTB Silverado Race SL
- Handlebar
- Diamondback ProBar riser, 740mm
- Front Derailleur
- Shimano Deore
- Rear Derailleur
- SRAM X-9, Type 2
- Stem
- Easton EA50
- Brake Levers
- Avid Elixir 5
- Brakes
- Avid Elixir 5 disc, 8/7-inch rotors
- Cassette
- SRAM PG-1030, 10-speed: 11-36
- Chainrings
- 36/24 w/bash guard
- Fork
- Fox 34 Float CTD, 140mm-travel, tapered steerer w/15mm QR
- Frame
- Diamondback All-Mountain 6061-aluminum w/Knuckle Box linkage, 142 x 12mm through-axle
- Seat Post
- Easton EA50
- Shifters
- SRAM X-7
- Tape/Grips
- Diamondback Lock-on, Kraton
- Wheel Set
- AM290, double-wall aluminum
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
Inspection
Suspension service
Confirm fork and rear shock service intervals and check pivot bearings for play.
