Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Specialized

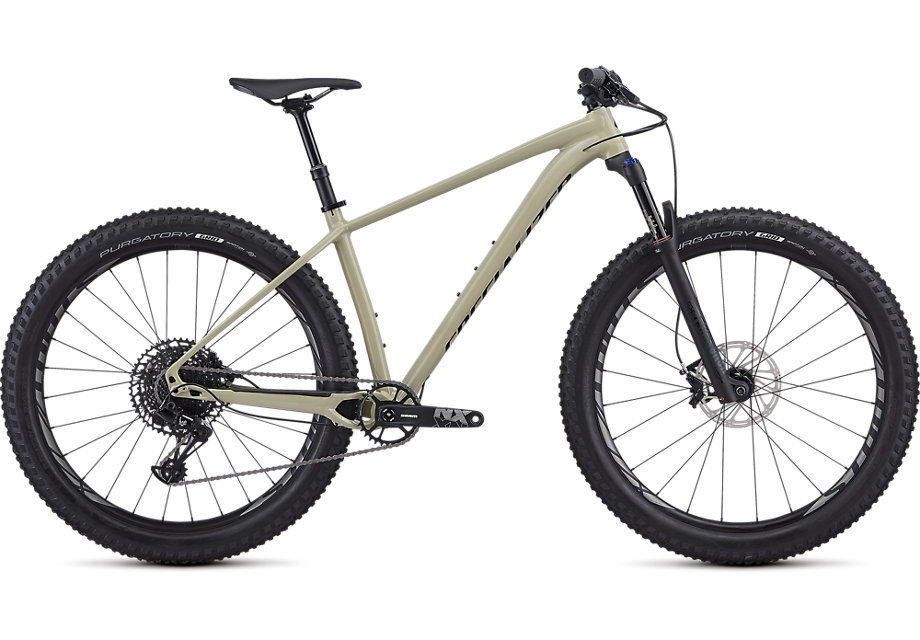

2019 Specialized Fuse Expert 27.5+
Value Guide market data · 2019 Specialized Fuse Expert 27.5+
12-month trend
14%
Direction and magnitude, not judgment
vs. category average
10%
Holds value better than category avg
Price over time - 2019 Specialized Fuse Expert 27.5+
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Fuse model years
2019 Fuse Expert 27.5+ lineup
Overview
About this bike
2019 Specialized Fuse Expert 27.5+ value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- FRAME
- Specialized M4 Aluminum w/ Smooth Welds, tapered head tube and seat tube, forged post-mount 160mm disc, 148mm thru-axle dropout, alloy replaceable derailleur hanger
- FORK
- RockShox Reba RL, Motion Control, Boost™, 51mm offset, 120mm of travel
Drivetrain
- Groupset
- SRAM NX
- SHIFT LEVERS
- Sram NX Eagle, trigger, 12-speed
- REAR DERAILLEUR
- SRAM NX Eagle, 12-speed
- CASSETTE
- SRAM NX Eagle, 12-speed, 11-50t
- CRANKSET
- Sram NX Eagle, DUB
- CHAINRINGS
- Steel, 30T
- BOTTOM BRACKET
- SRAM, DUB, PF30
- CHAIN
- SRAM NX Eagle, 12-speed
- Shifters
- Sram NX Eagle, trigger, 12-speed
Brakes
- REAR BRAKE
- SRAM Level T, hydraulic disc, 2-piston, 180/160mm
- FRONT BRAKE
- SRAM Level TRL, hydraulic disc, 4-piston, 200/180mm
- Brakes
- SRAM Level
Cockpit
- HANDLEBARS
- Stout Riser, double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 750mm width, 31.8mm
- STEM
- Specialized, 3D-forged alloy, 4-bolt, 7-degree rise
- GRIPS
- Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
- SADDLE
- Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
- SEATPOST
- TransX dropper, 30.9mm, S: 120mm, M/XXL: 150mm Travel
- SEAT BINDER
- Alloy, bolt-type, 34.9mm
- Handlebar
- Stout Riser, double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 750mm width, 31.8mm
Wheels & Tires
- RIMS
- Stout Trail SL 27.5, 38mm internal width, tubeless ready, disc-specific
- FRONT HUB
- Specialized, sealed cartridge bearings, 15x110mm thru-axle, 24h
- REAR HUB
- Specialized, sealed cartridge bearings, 12x148mm thru-axle, 28h
- SPOKES
- Stainless, 14g
- FRONT TIRE
- Purgatory, GRID casing, GRIPTON® compound, 2Bliss Ready, 27.5 x 3.0"
- REAR TIRE
- Purgatory, GRID casing, GRIPTON® compound, 2Bliss Ready, 27.5 x 3.0"
- INNER TUBES
- Presta, 40mm valve
- Axles
- Front: 110 x 15mm, Rear: 148 x 12mm
- Hubs
- Specialized, sealed cartridge bearings
Pedals
- PEDALS
- Specialized Dirt
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
Inspection
Suspension service
Confirm fork lowers and rear shock service intervals; ask for the most recent service receipts.
Inspection
Frame pivots & bearings
Cycle the suspension off the bike to feel for play, grit, or noise in pivot bearings.
